Rear Power Seat Control System (for Rear No. 2 Seat With Automatic Folding-Up Function)

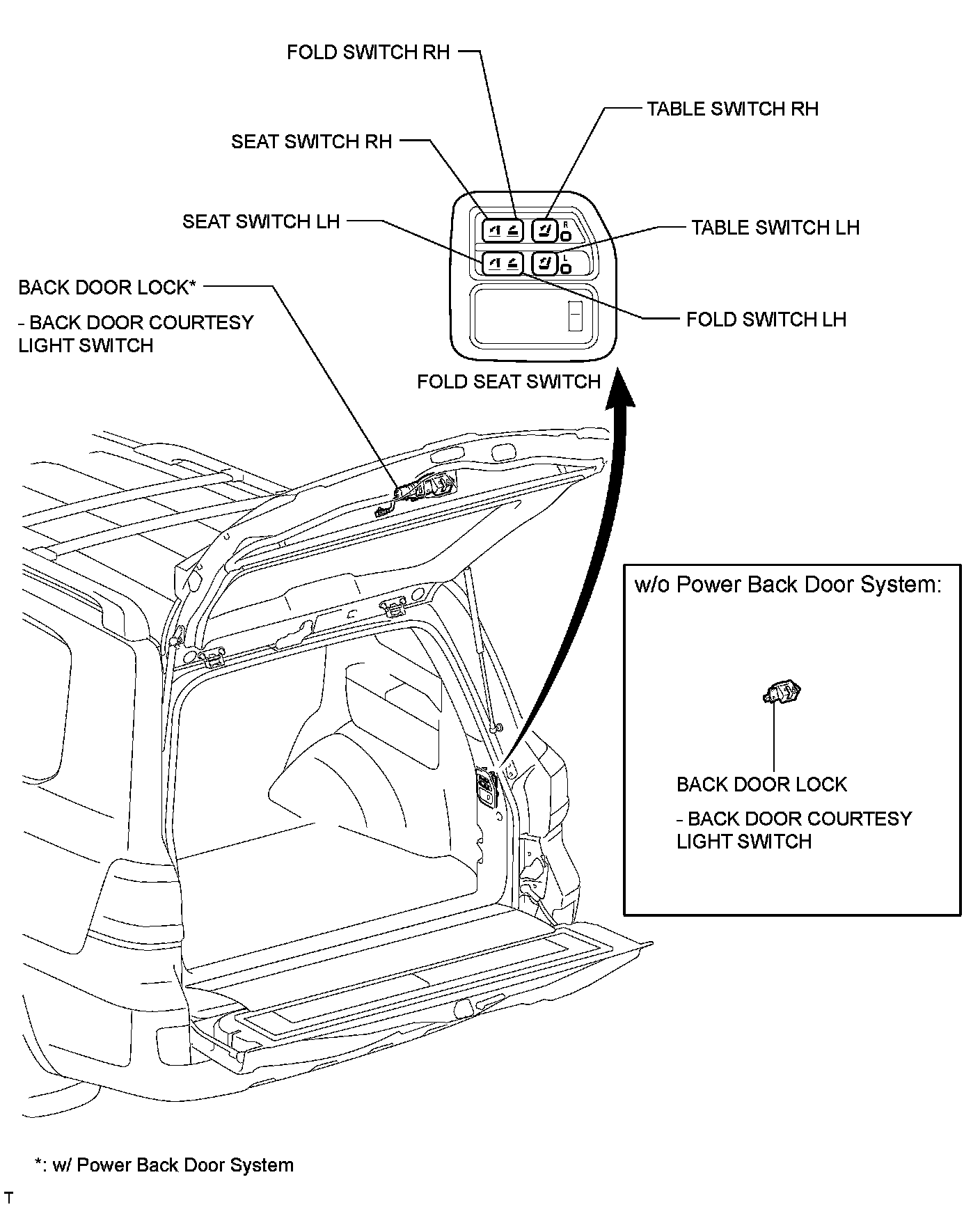

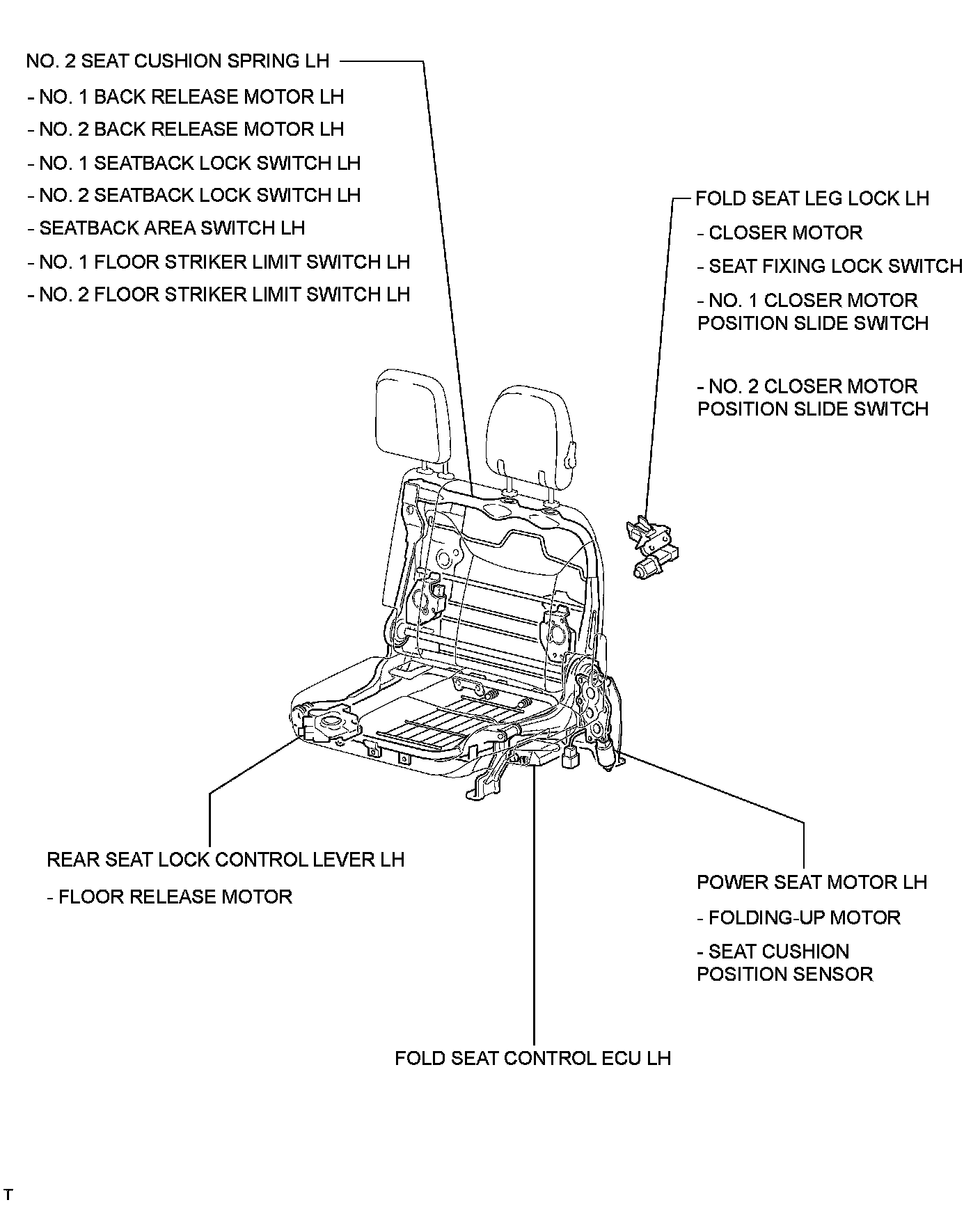

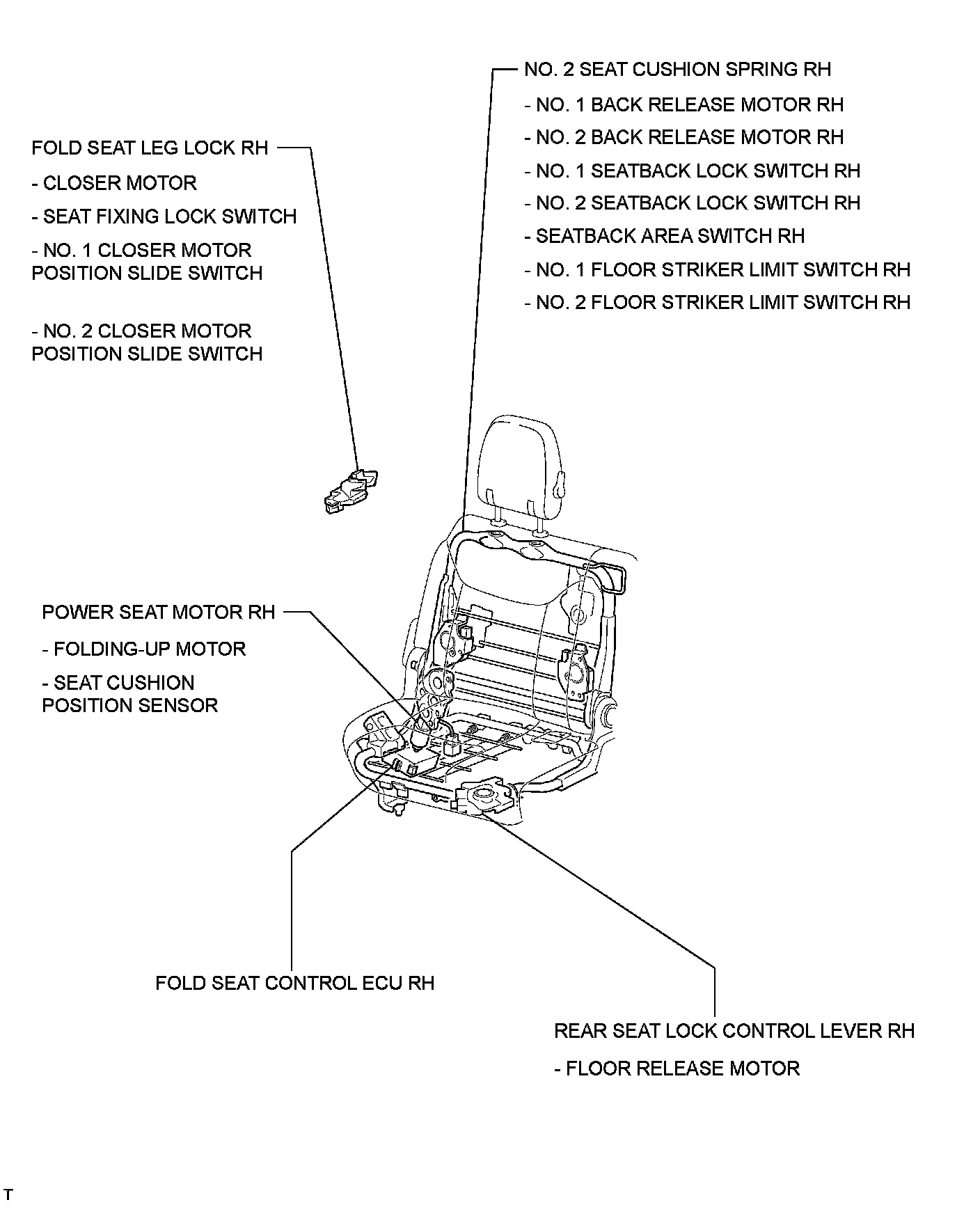

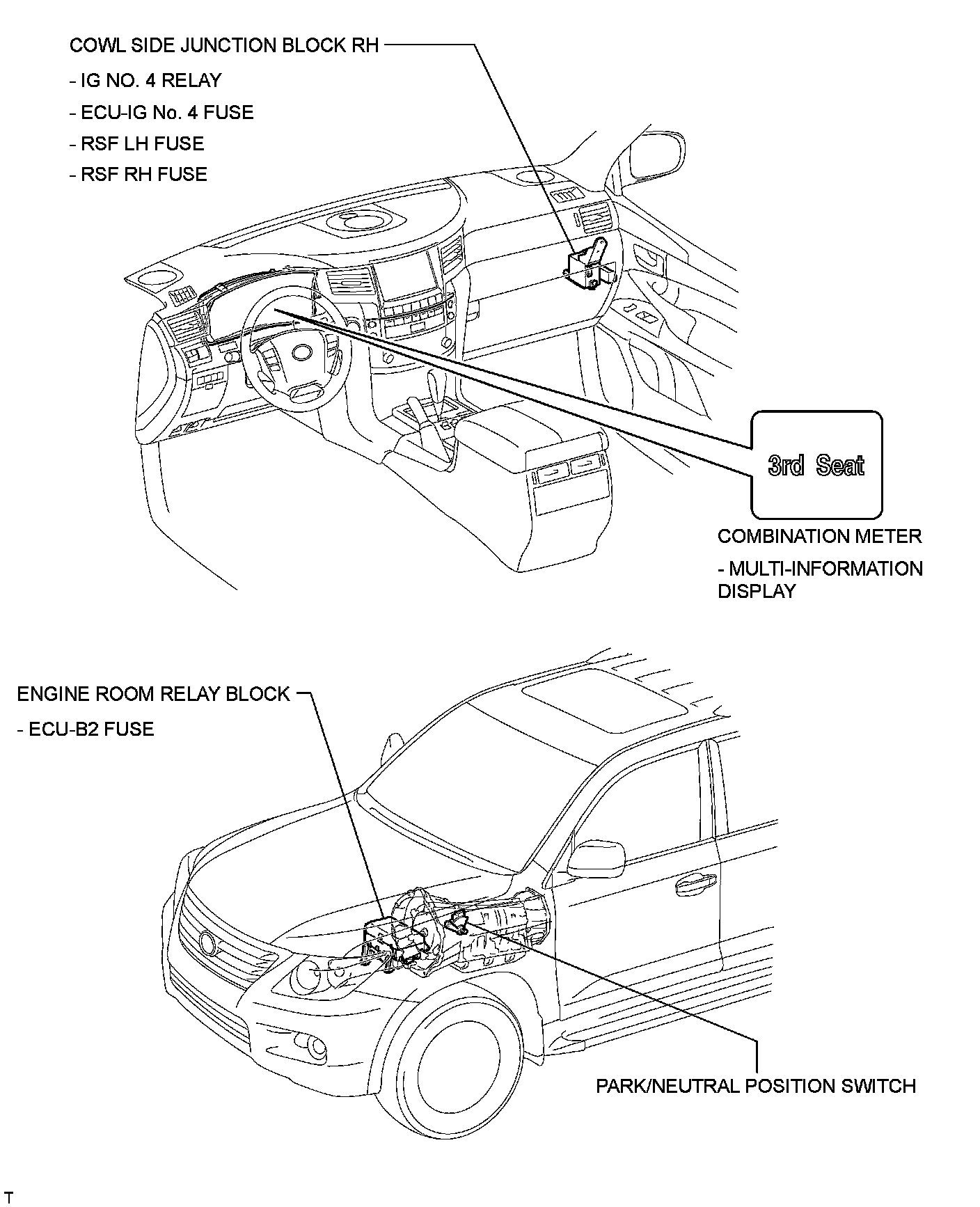

SEAT: REAR POWER SEAT CONTROL SYSTEM (for Rear No. 2 Seat with Automatic Folding-up Function): PARTS LOCATION
