Power Seat [Rear No.1 Seat]

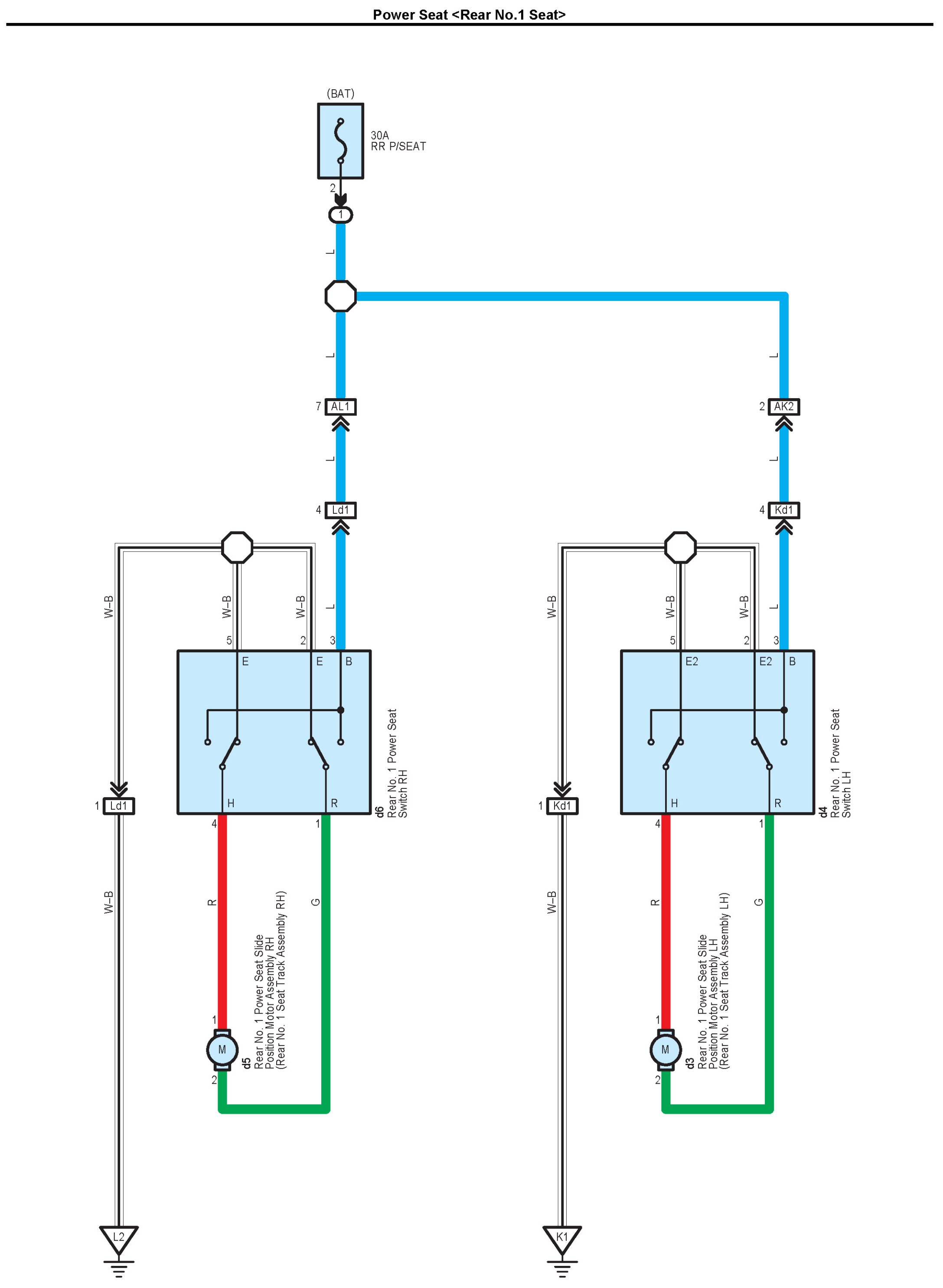

Power Seat <Rear No.1 Seat>:

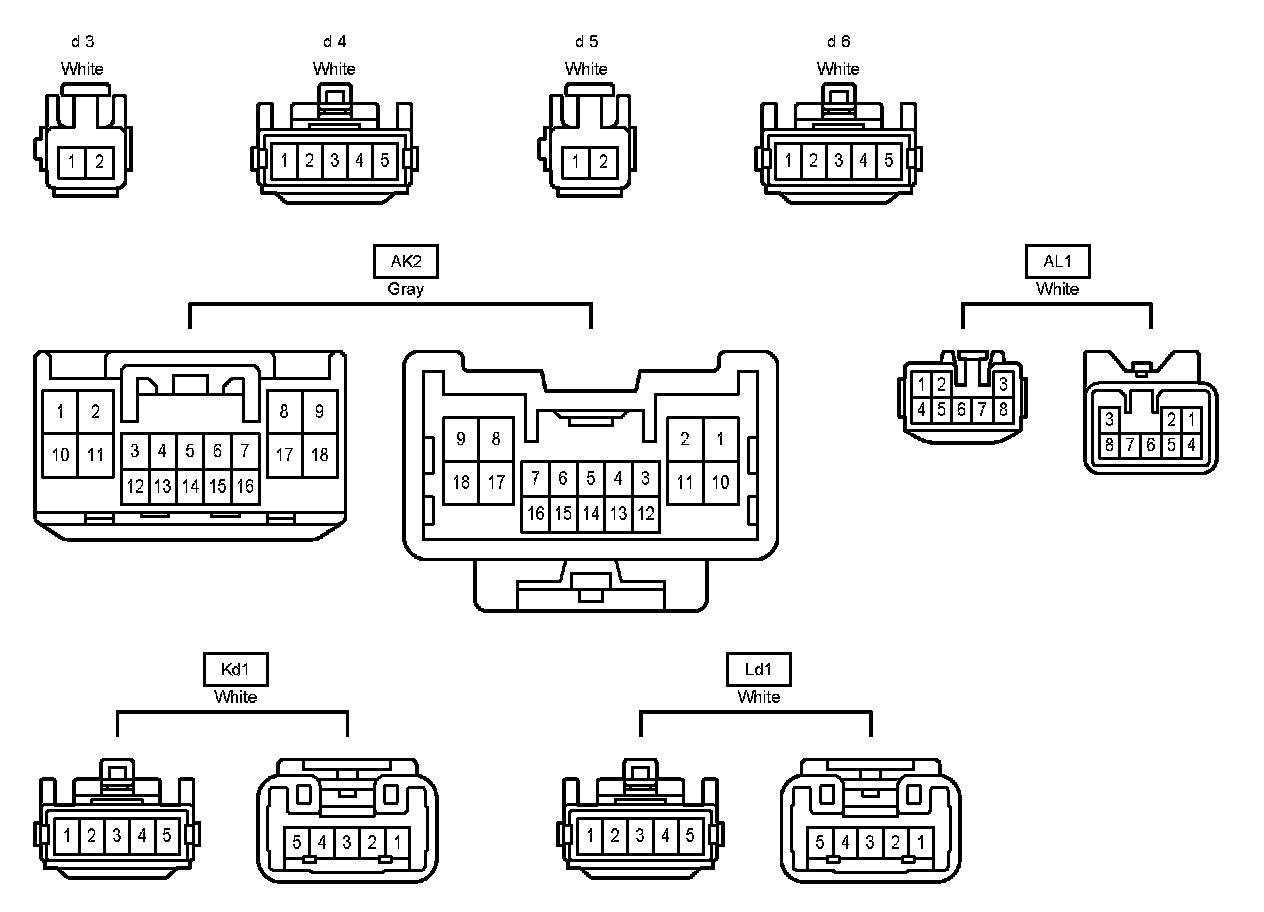

Connector Pin Outs:






Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
