Climate Control Seat [Driver's Seat and Front Passenger's Seat]

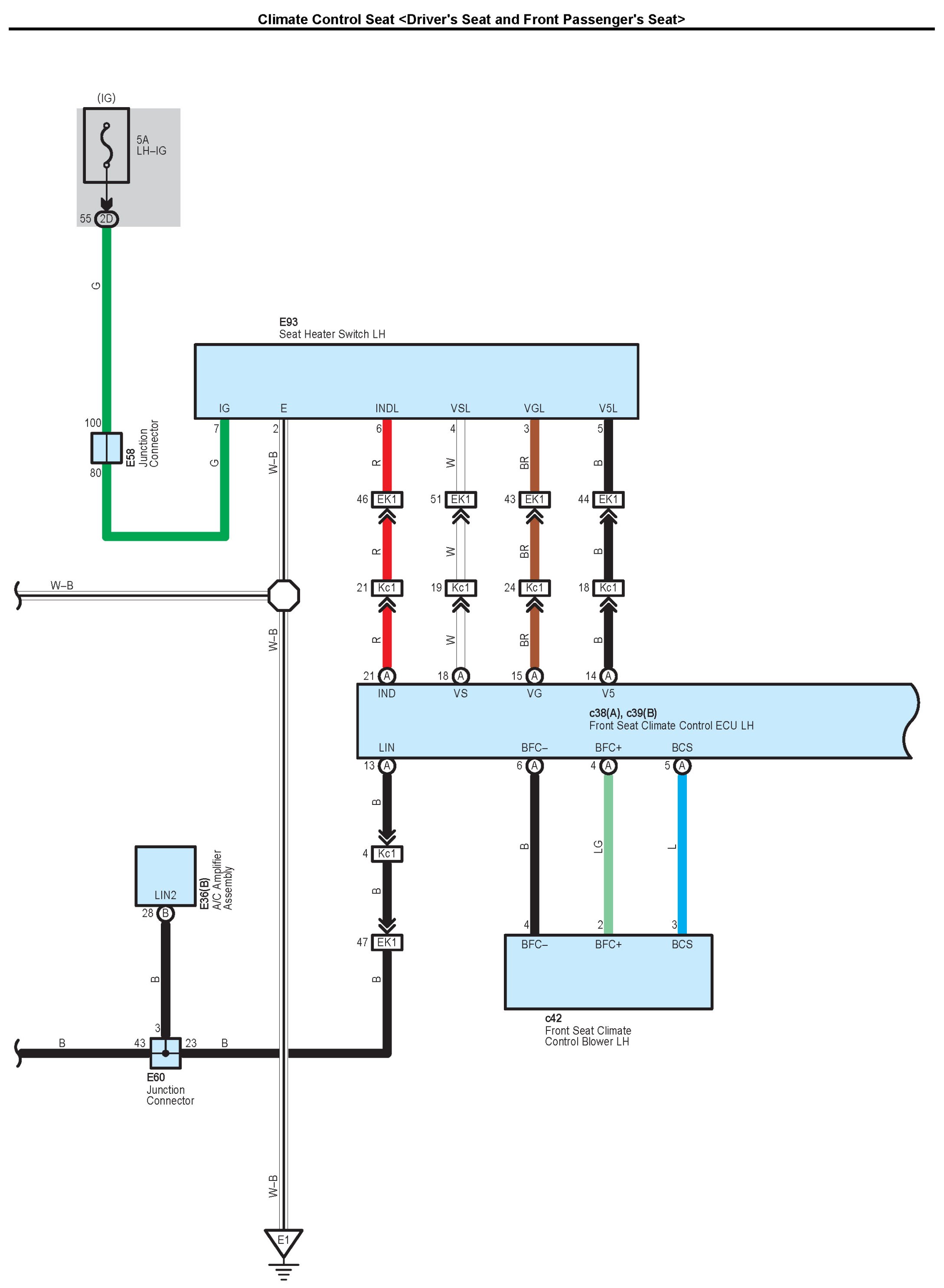

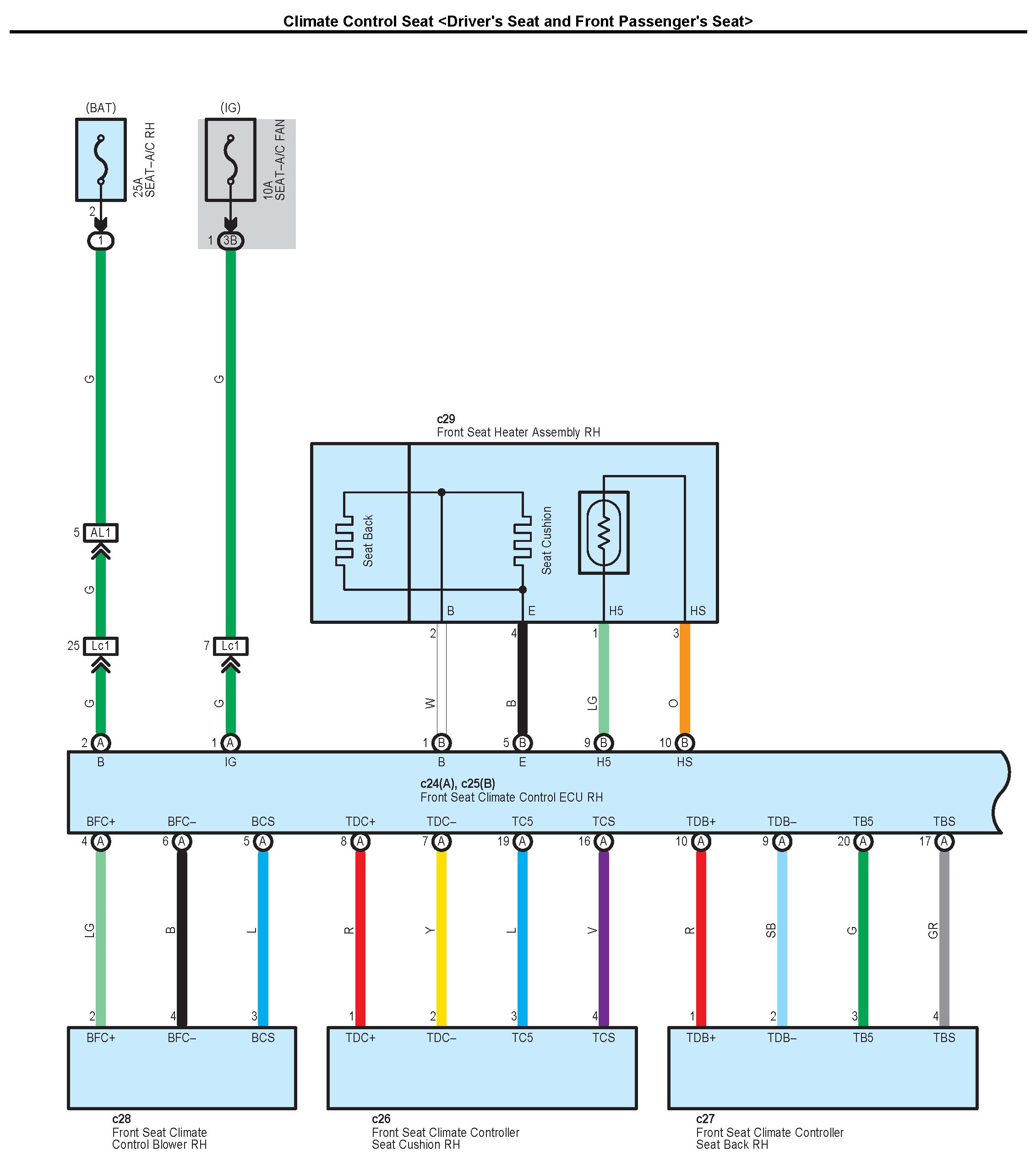

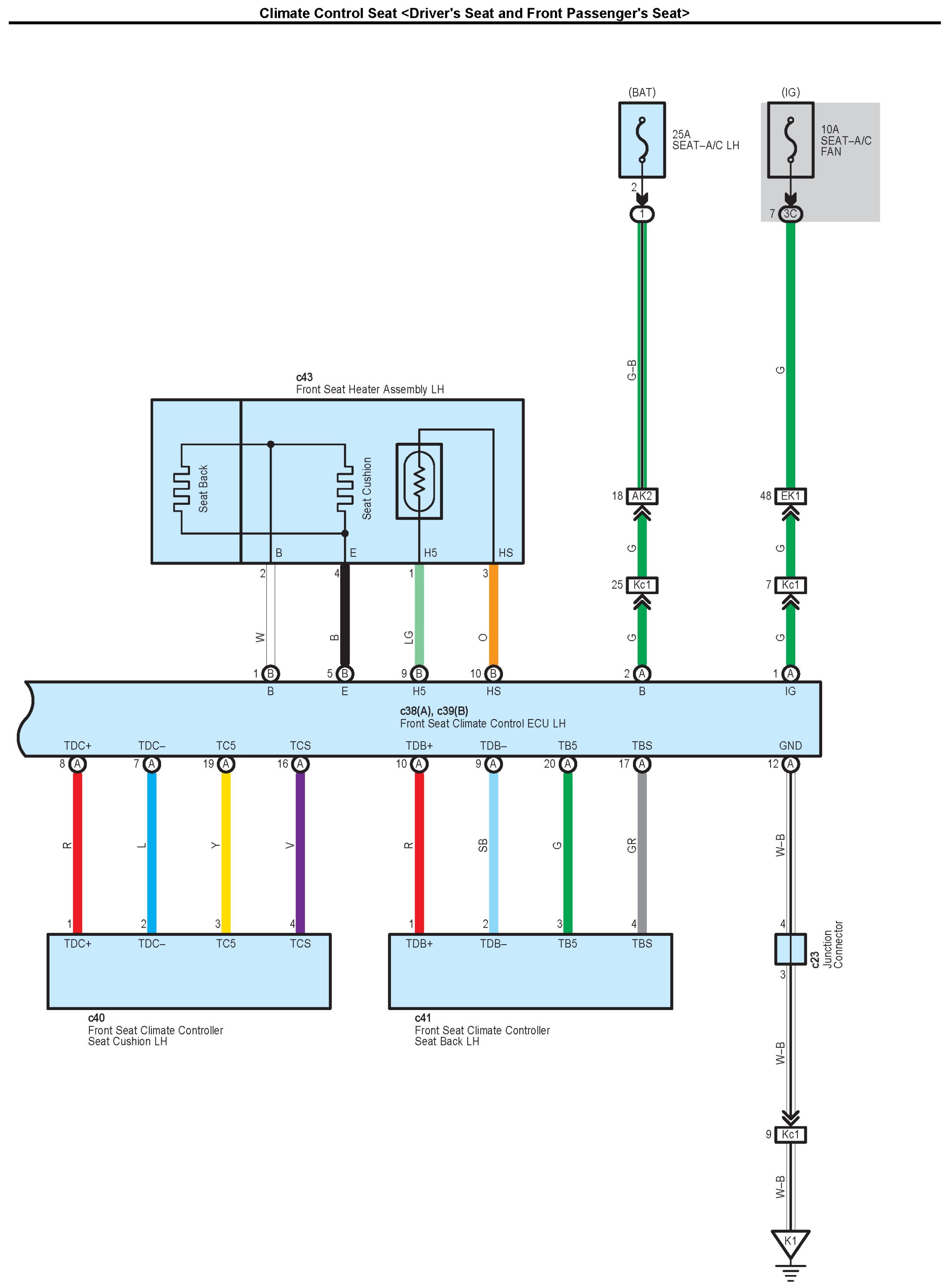

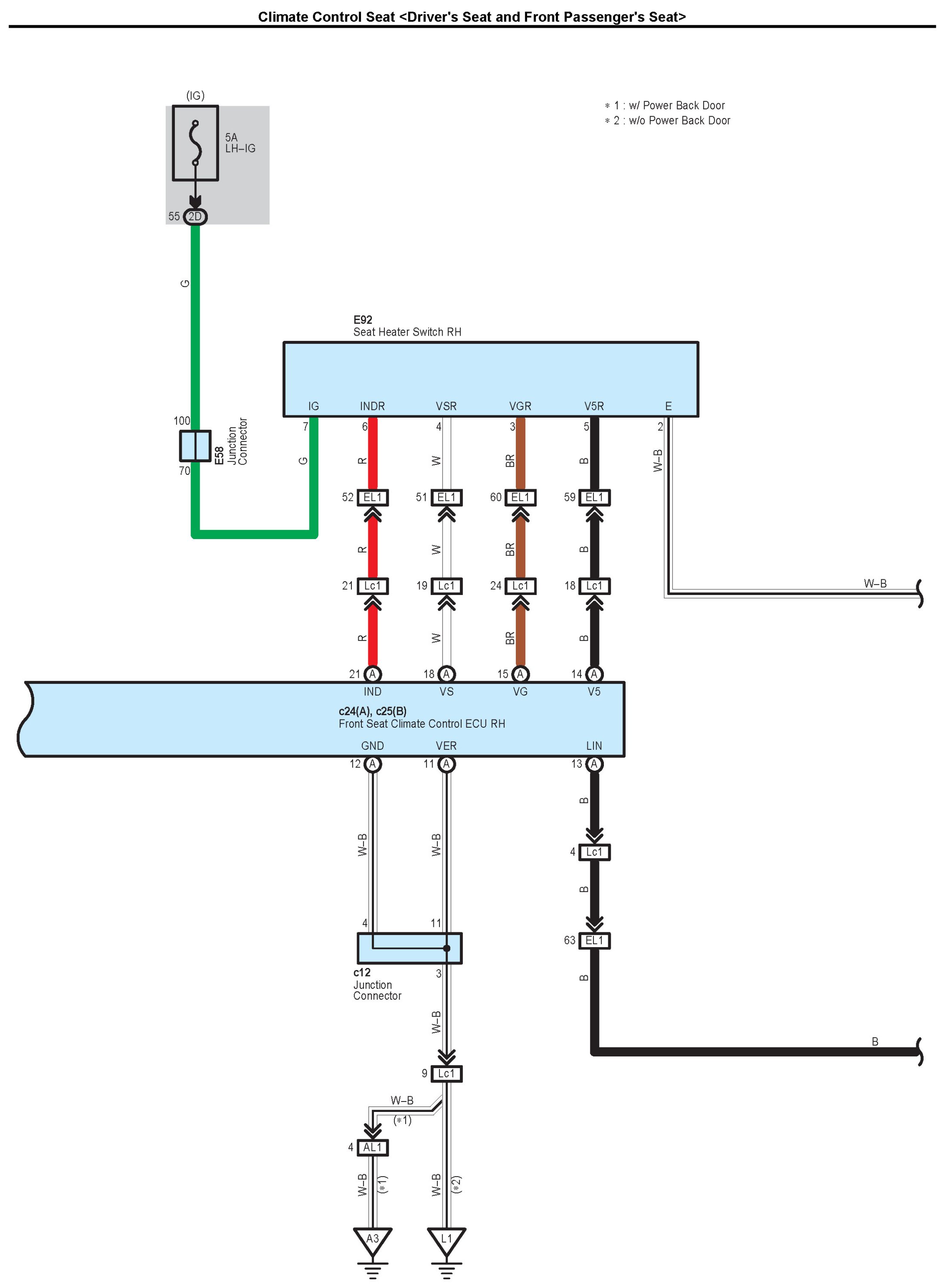

Climate Control Seat <Driver's Seat and Front Passenger's Seat> Part 1:

Climate Control Seat <Driver's Seat and Front Passenger's Seat> Part 2:

Climate Control Seat <Driver's Seat and Front Passenger's Seat> Part 3:

Climate Control Seat <Driver's Seat and Front Passenger's Seat> Part 4:

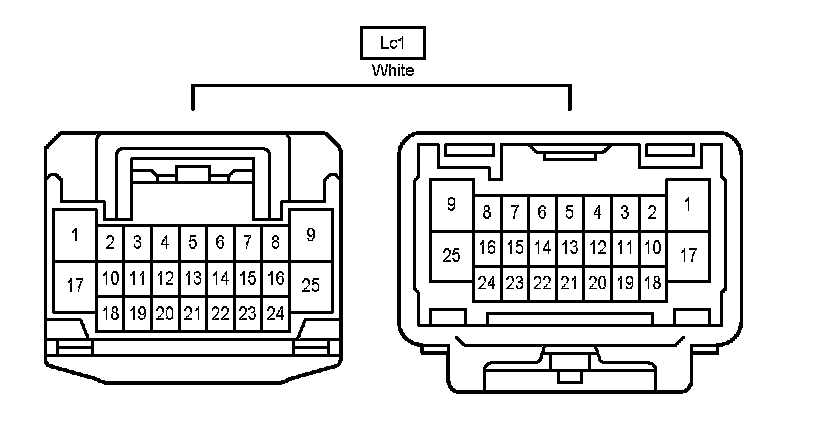

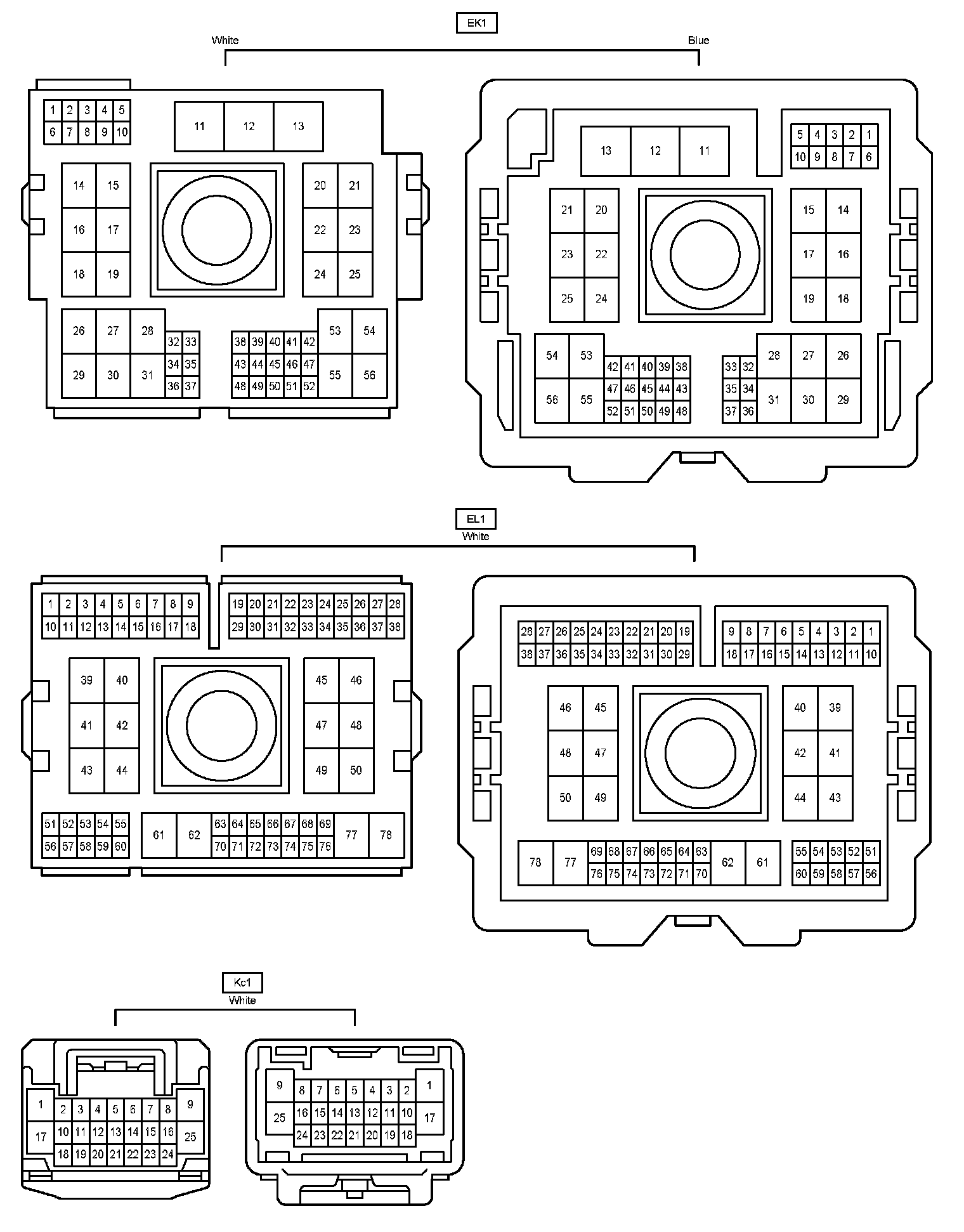

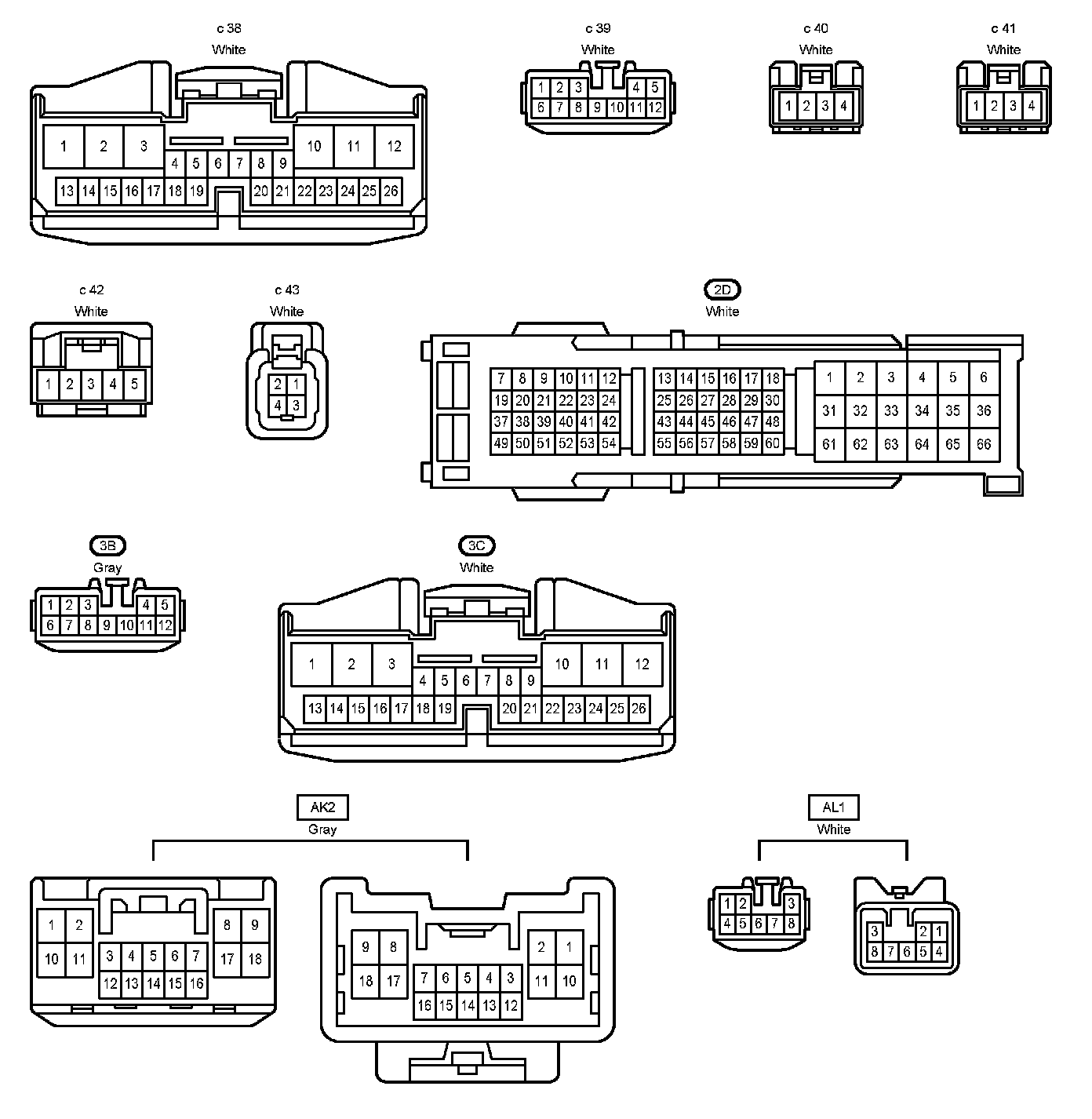

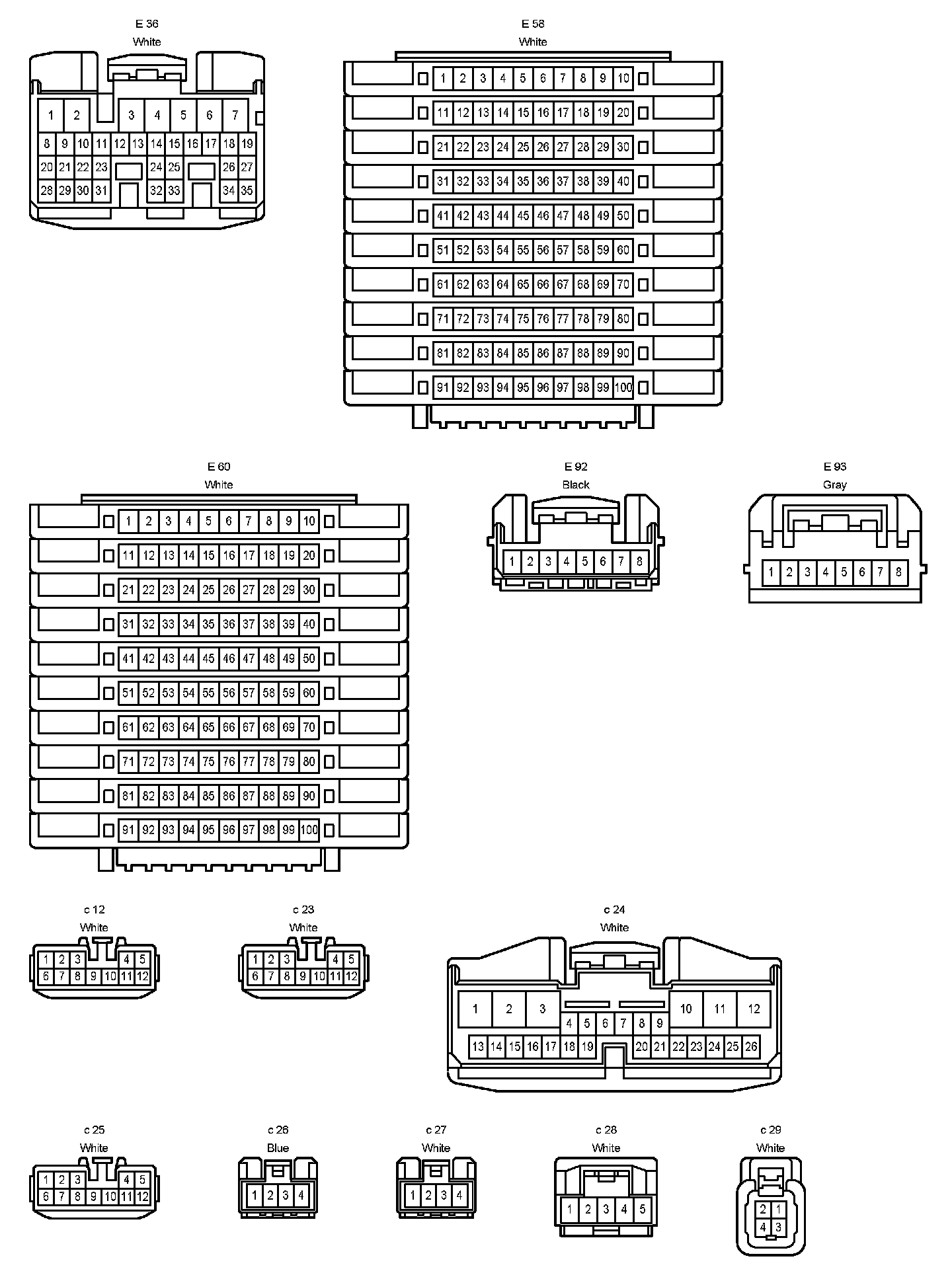

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
