Rear Power Seat Control System (for Rear No. 2 Seat With Automatic Folding-Up Function)

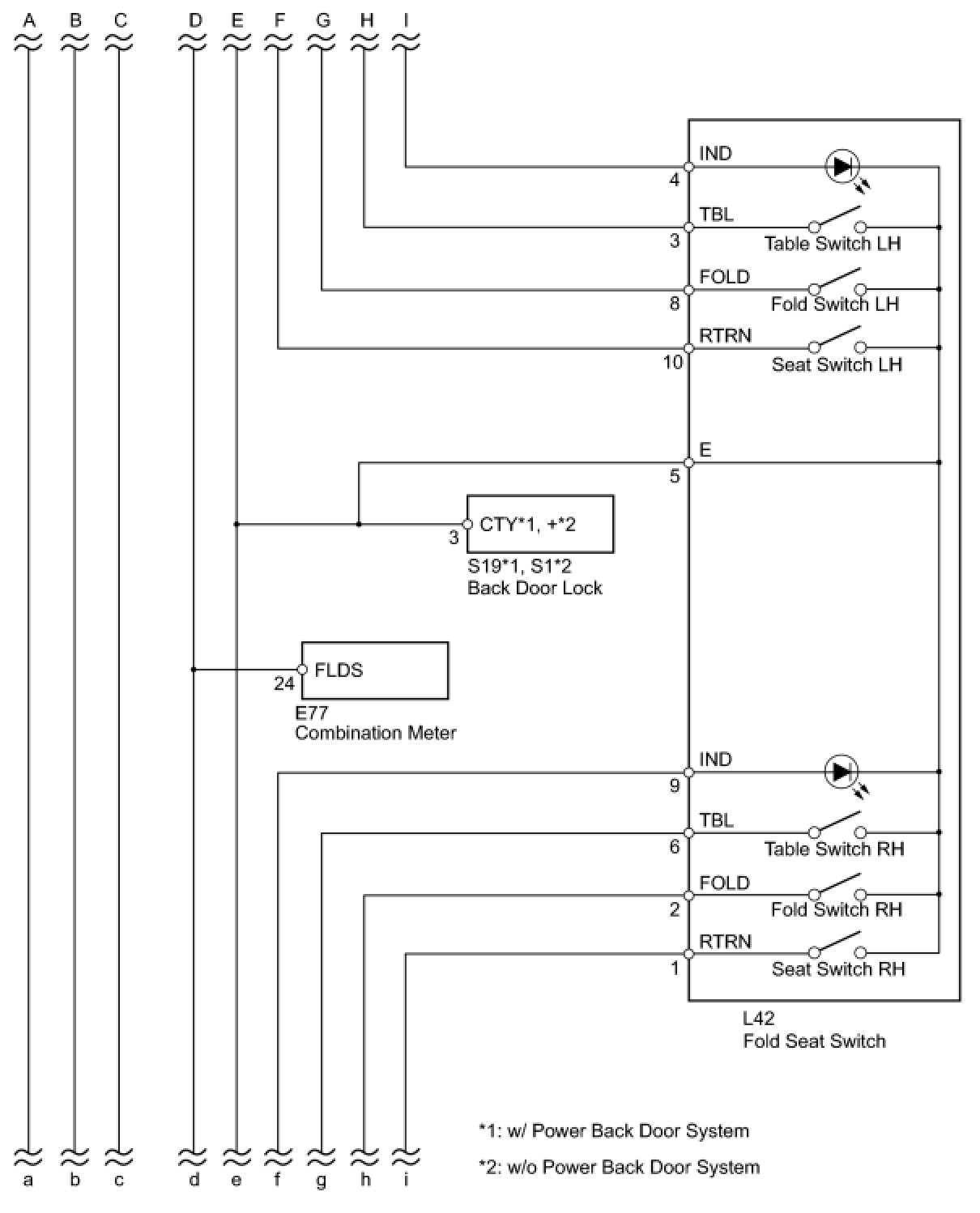

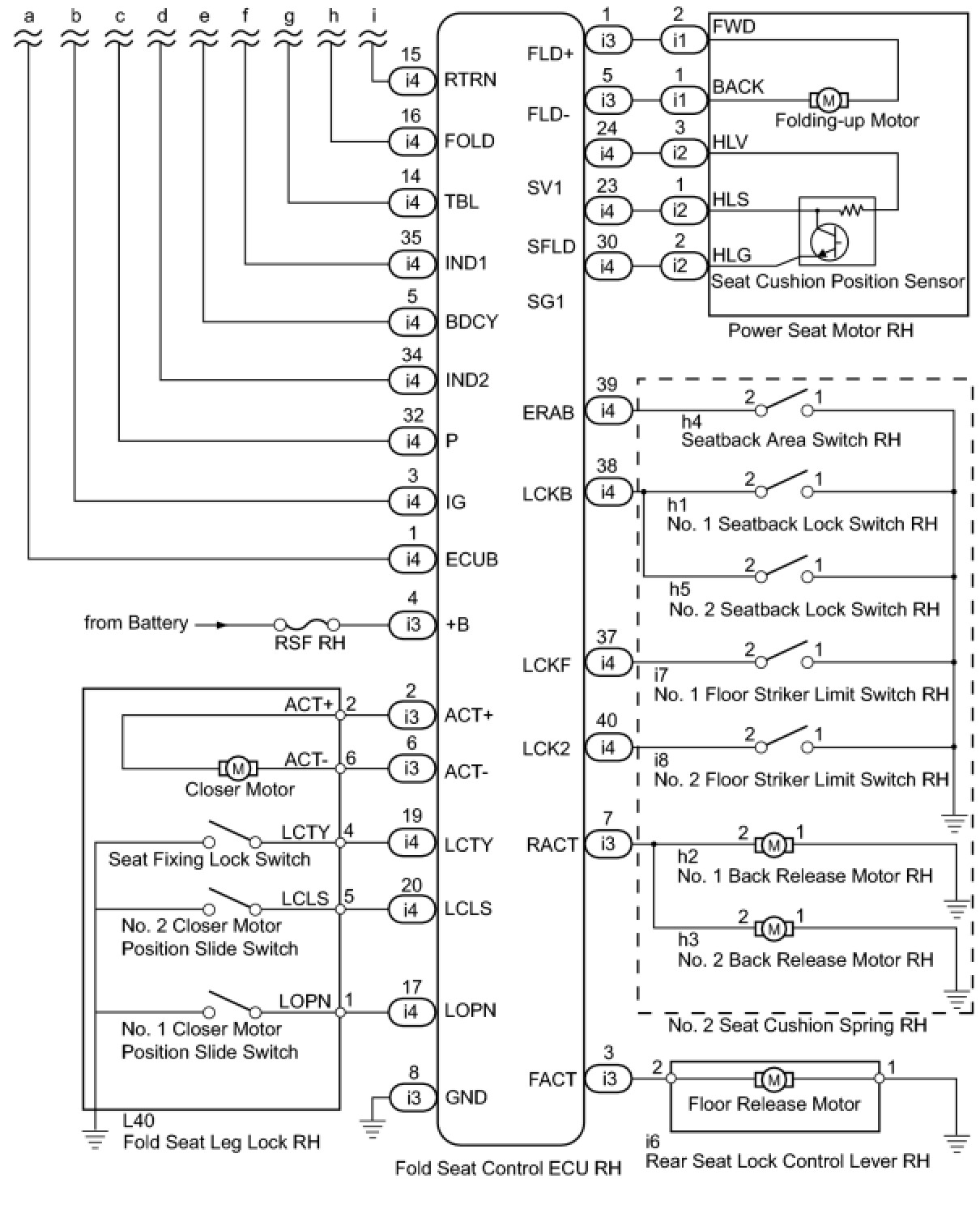

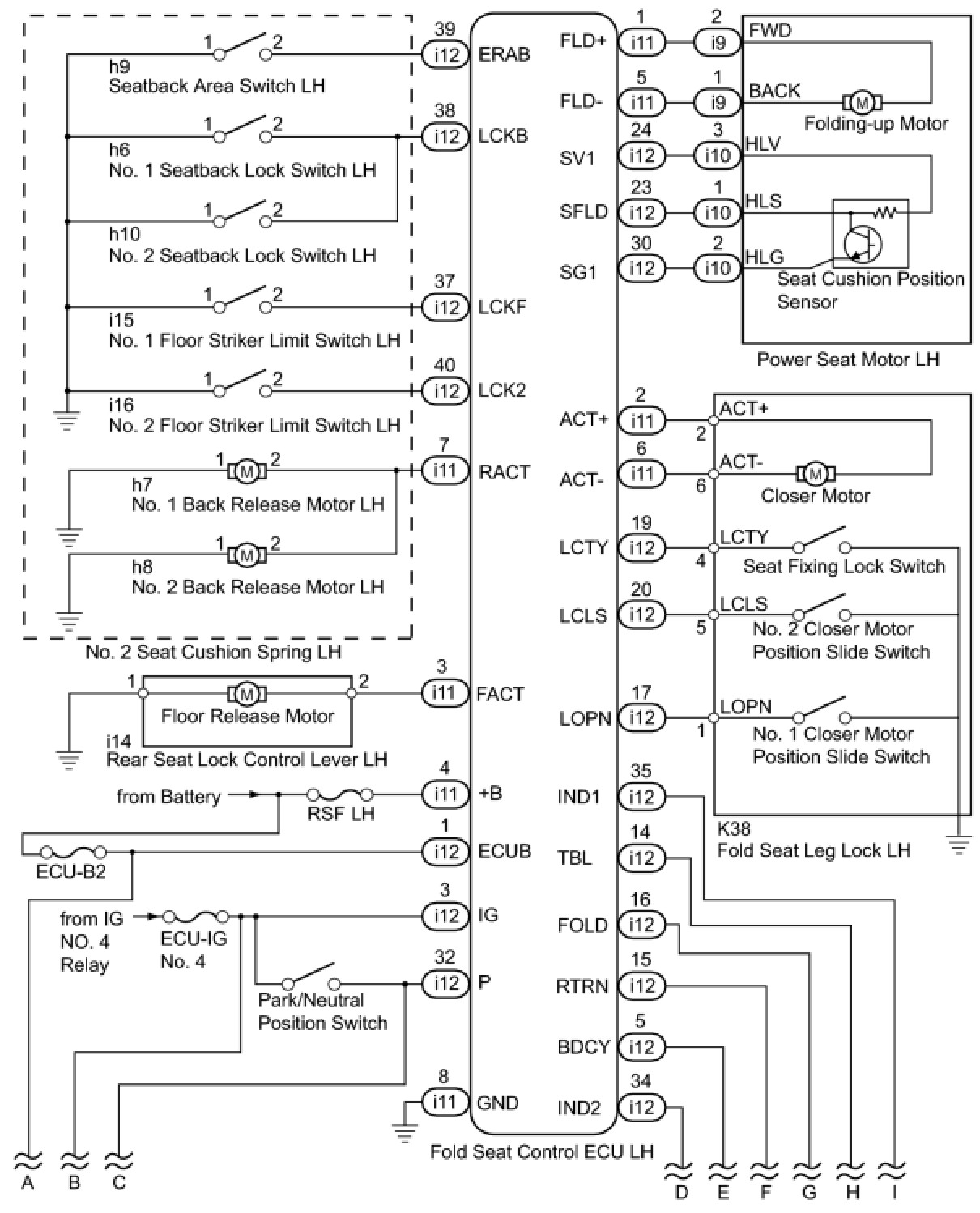

SEAT: REAR POWER SEAT CONTROL SYSTEM (for Rear No. 2 Seat with Automatic Folding-up Function): SYSTEM DIAGRAM













SEAT: REAR POWER SEAT CONTROL SYSTEM (for Rear No. 2 Seat with Automatic Folding-up Function): SYSTEM DESCRIPTION

1. FOLDING-UP SEAT DESCRIPTION

- The folding-up seat function electrically and mechanically stows and returns the rear No. 2 seat when the fold seat switch is operated.
- This system is used for both the left and right seats. Each system operates independently.

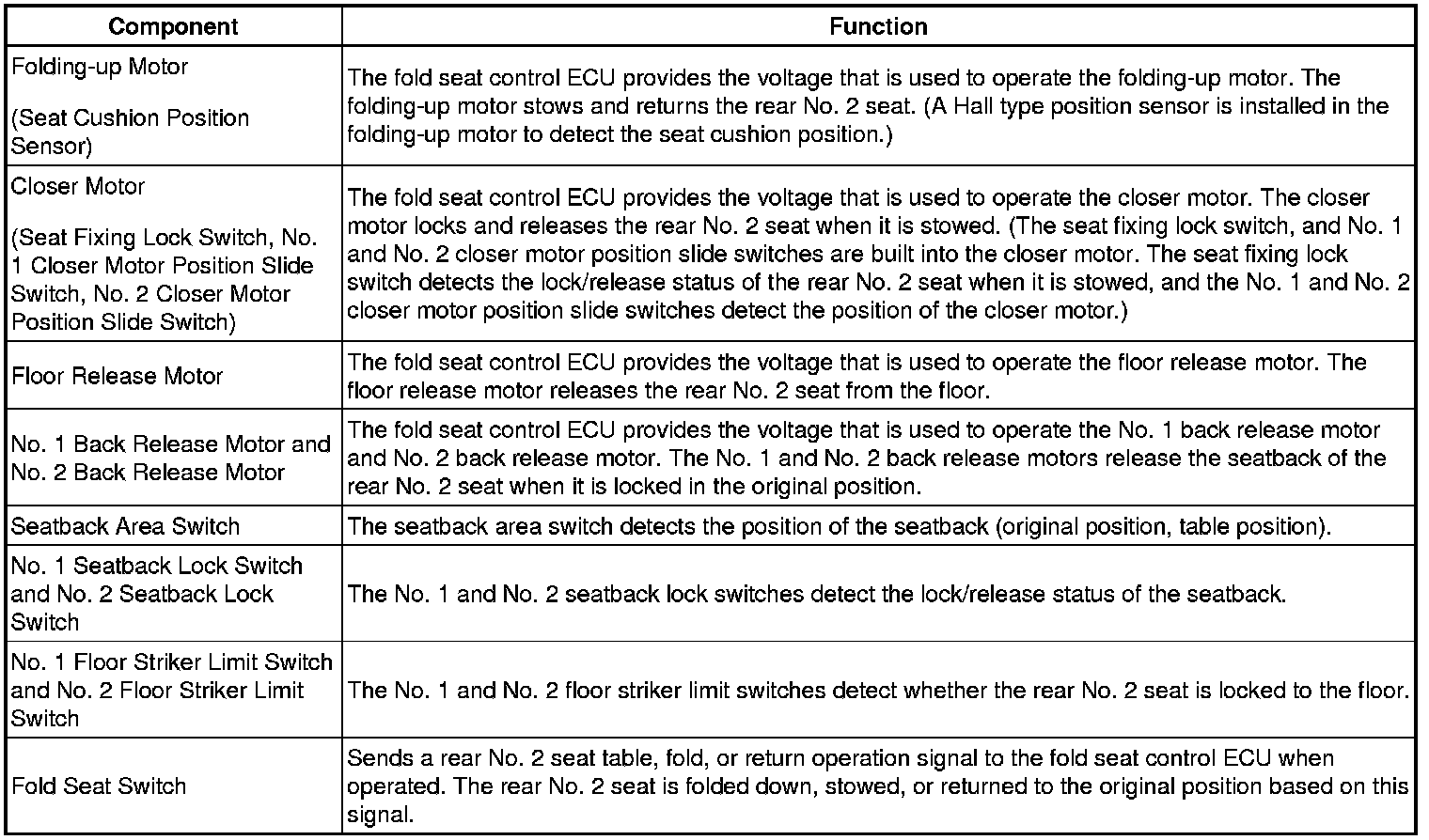

2. FUNCTIONS OF MAIN COMPONENT
