Initial Inspection and Diagnostic Overview

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT:
- Use these procedures to troubleshoot the sliding roof system.
- *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
NEXT -- Continue to next step.
3. CHECK LIN COMMUNICATION SYSTEM*
(a) Using the Techstream, check if the LIN communication system is functioning normally.

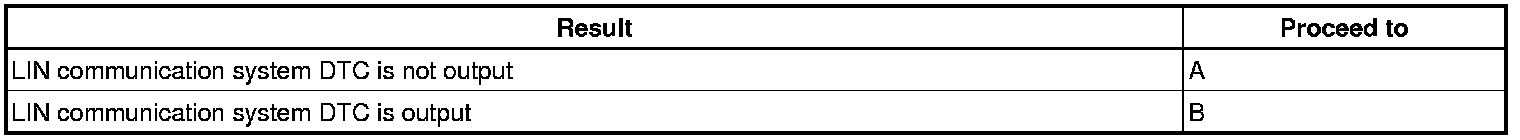

Result





B -- Go to LIN COMMUNICATION SYSTEM
A -- Continue to next step.
4. PROBLEM SYMPTOMS TABLE
(a) Refer to the problem symptoms table Symptom Related Diagnostic Procedures.

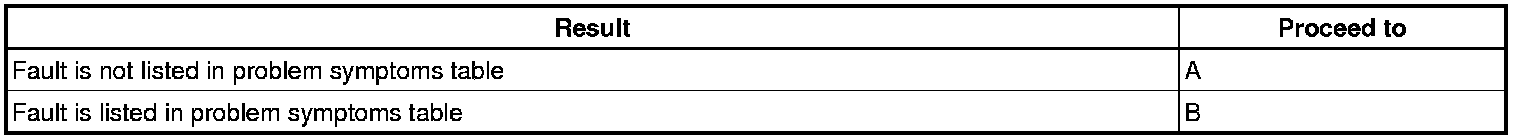

Result





B -- Go to step 6
A -- Continue to next step.
5. OVERALL ANALYSIS AND TROUBLESHOOTING*
(a) Operation Check Operation Check.
(b) Terminals of ECU Pinout Values and Diagnostic Parameters.
(c) Data List / Active Test Scan Tool Testing and Procedures.
NEXT -- Continue to next step.
6. ADJUST, REPAIR OR REPLACE
NEXT -- Continue to next step.
7. INITIALIZATION
(a) Initialization Initialization.
NEXT -- Continue to next step.
8. CONFIRMATION TEST
NEXT -- END
