Electrical Diagrams

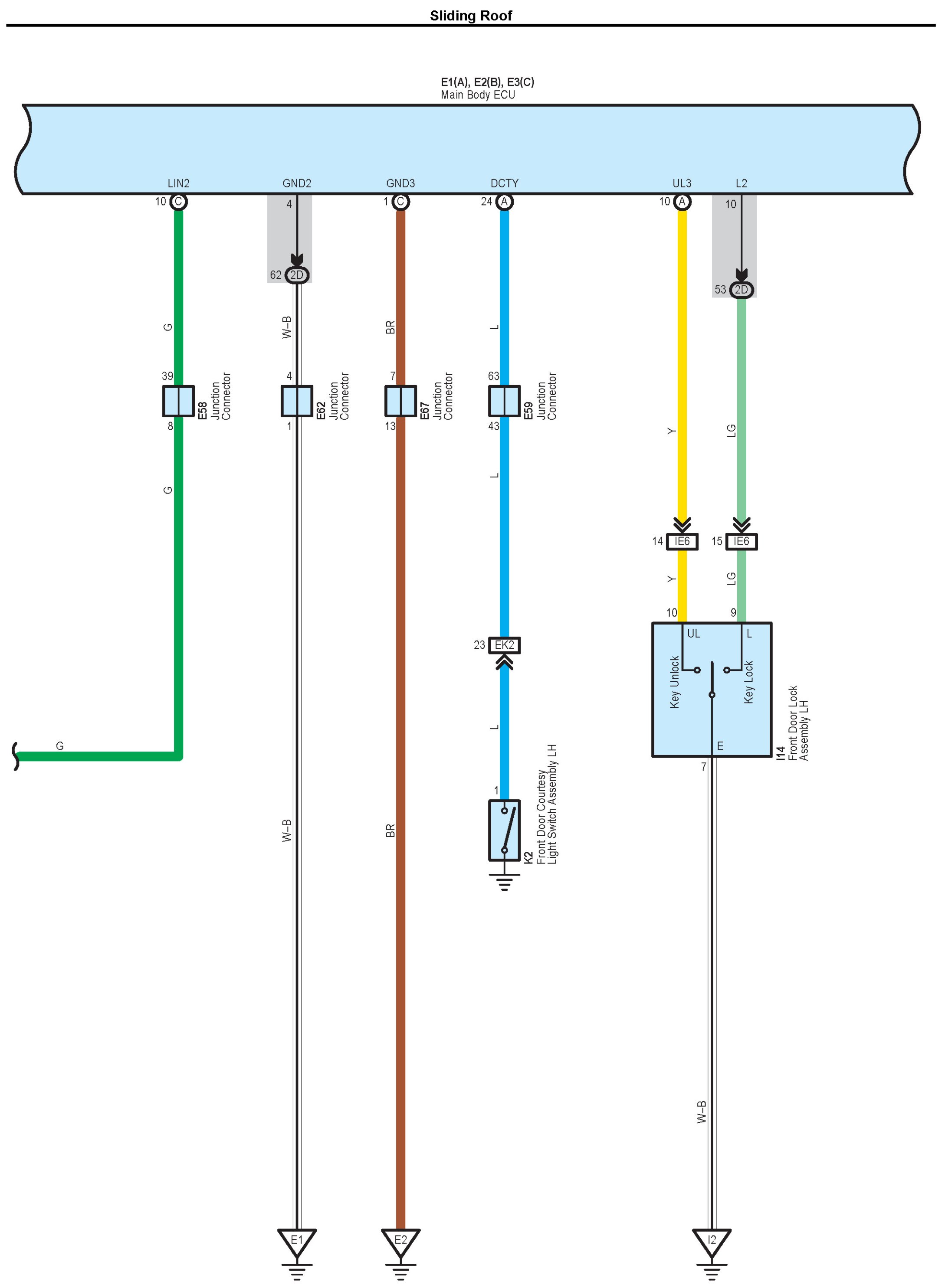

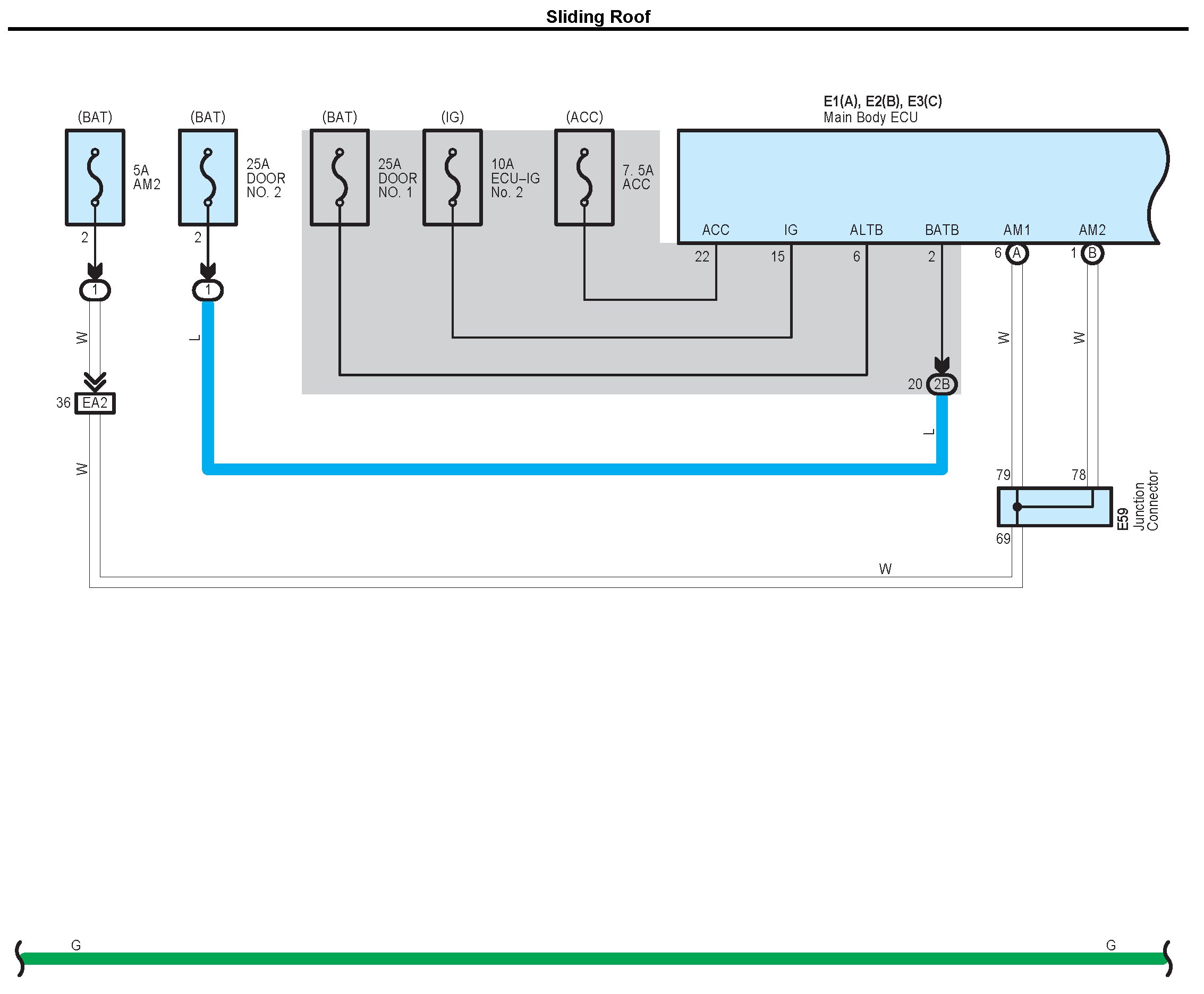

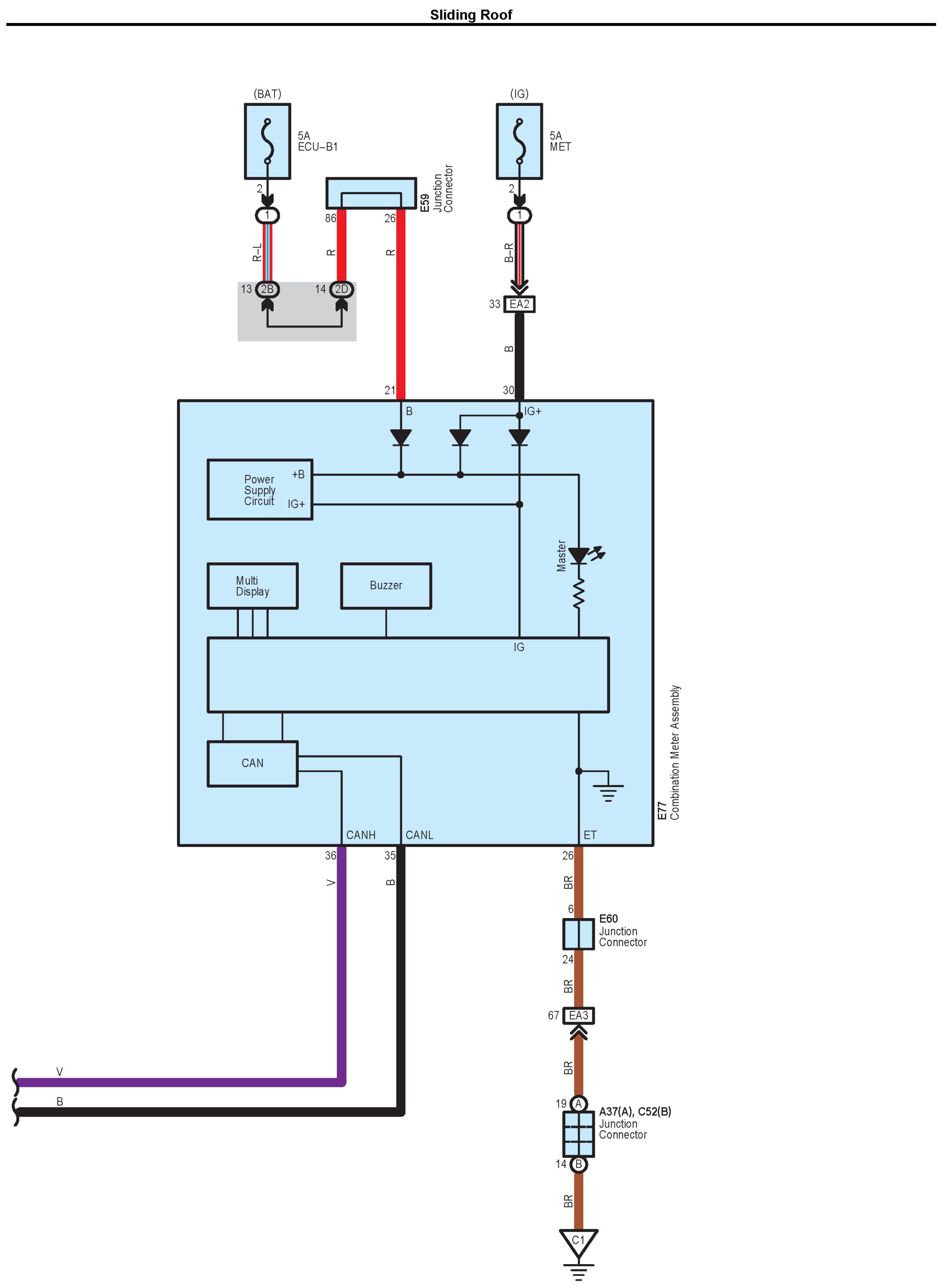

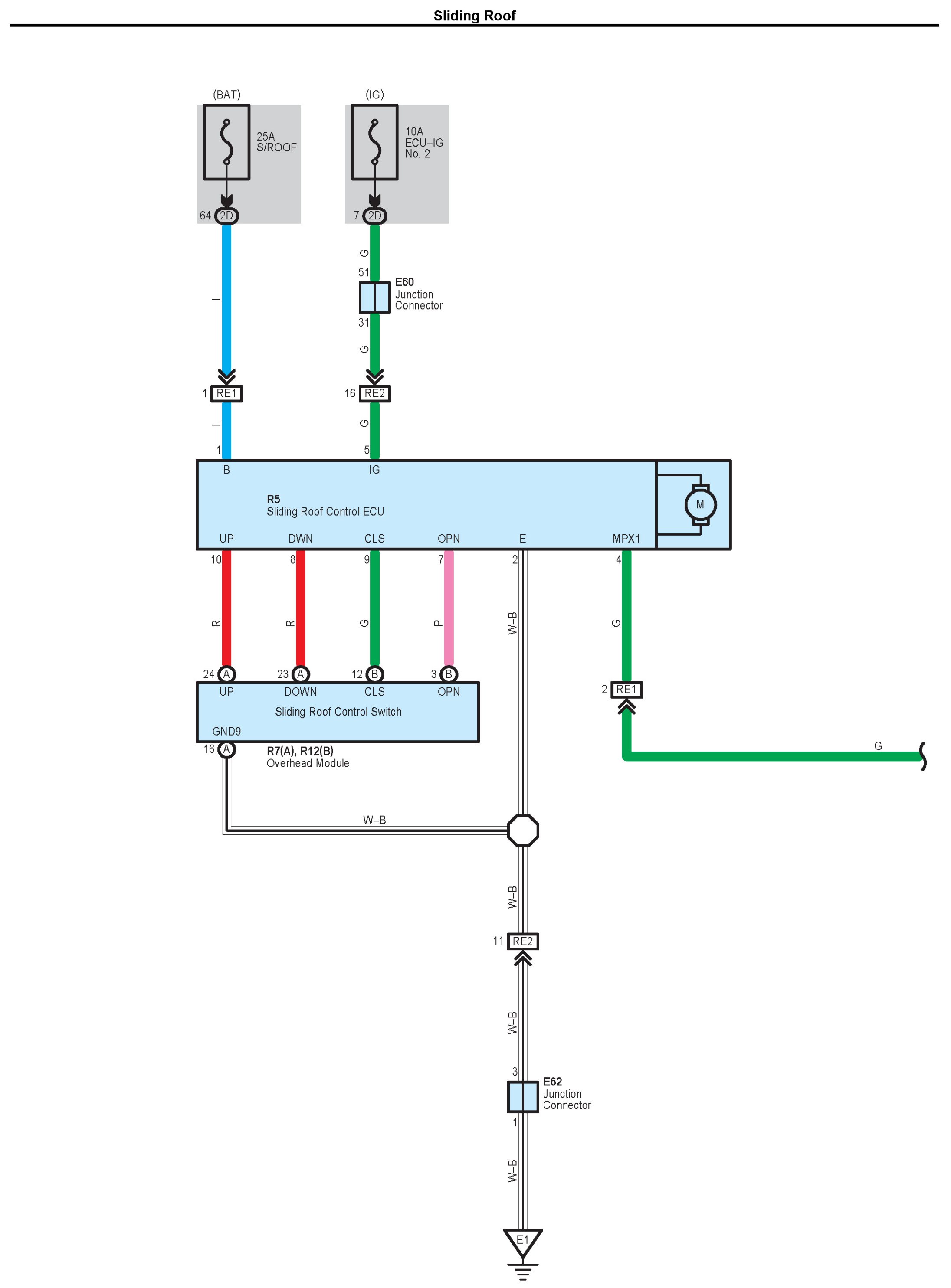

Sliding Roof Part 1:

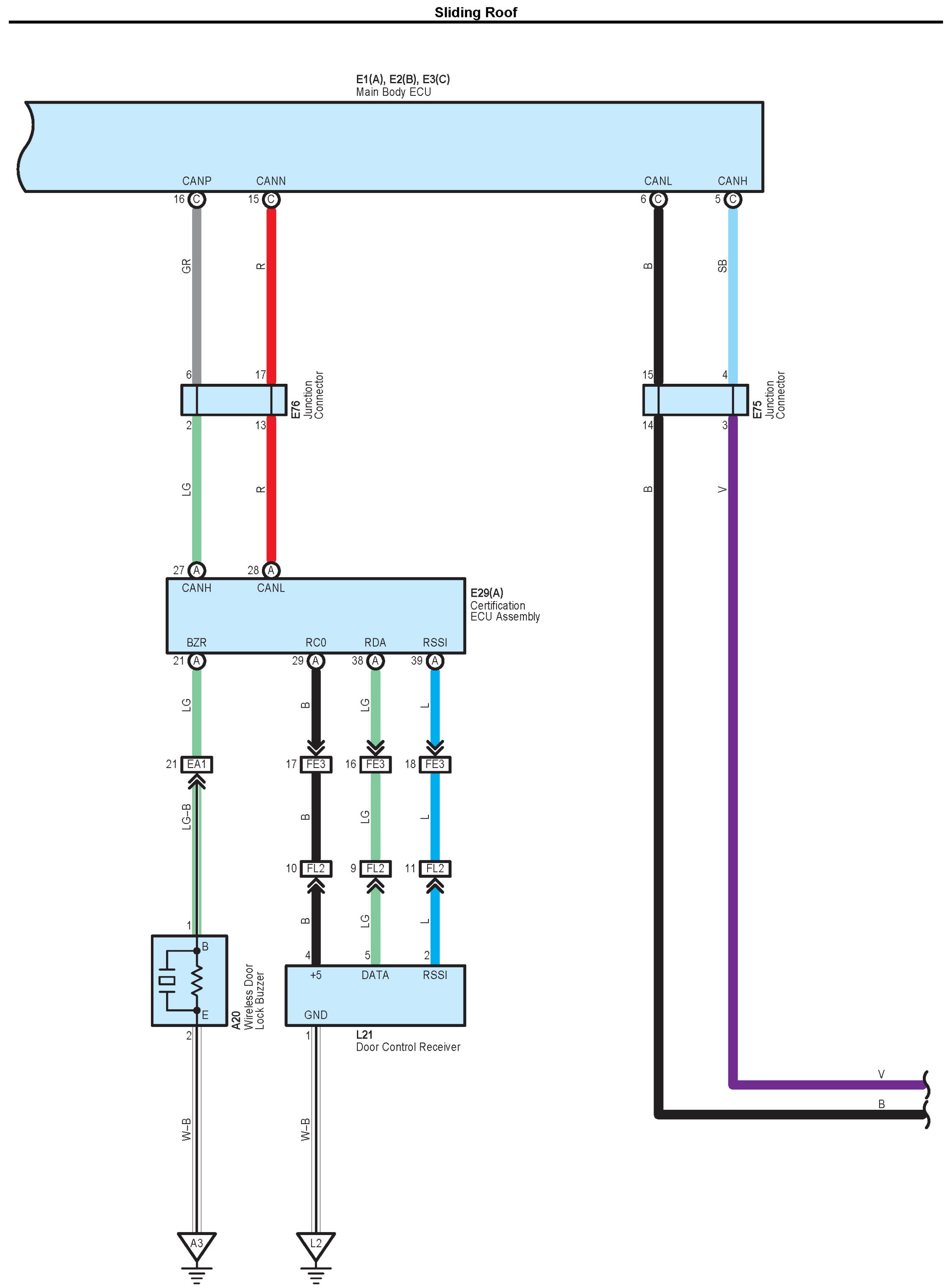

Sliding Roof Part 2:

Sliding Roof Part 3:

Sliding Roof Part 4:

Sliding Roof Part 5:

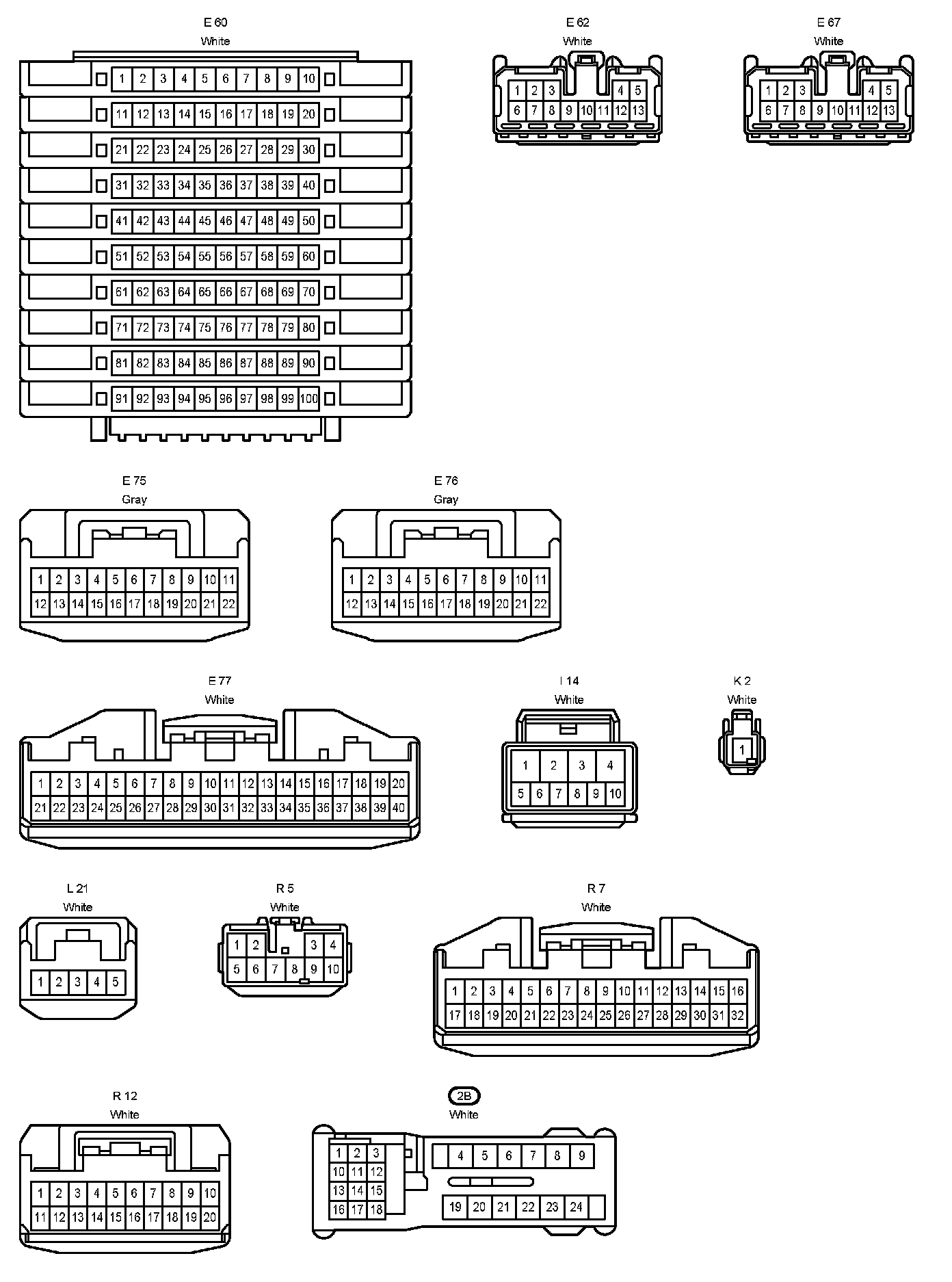

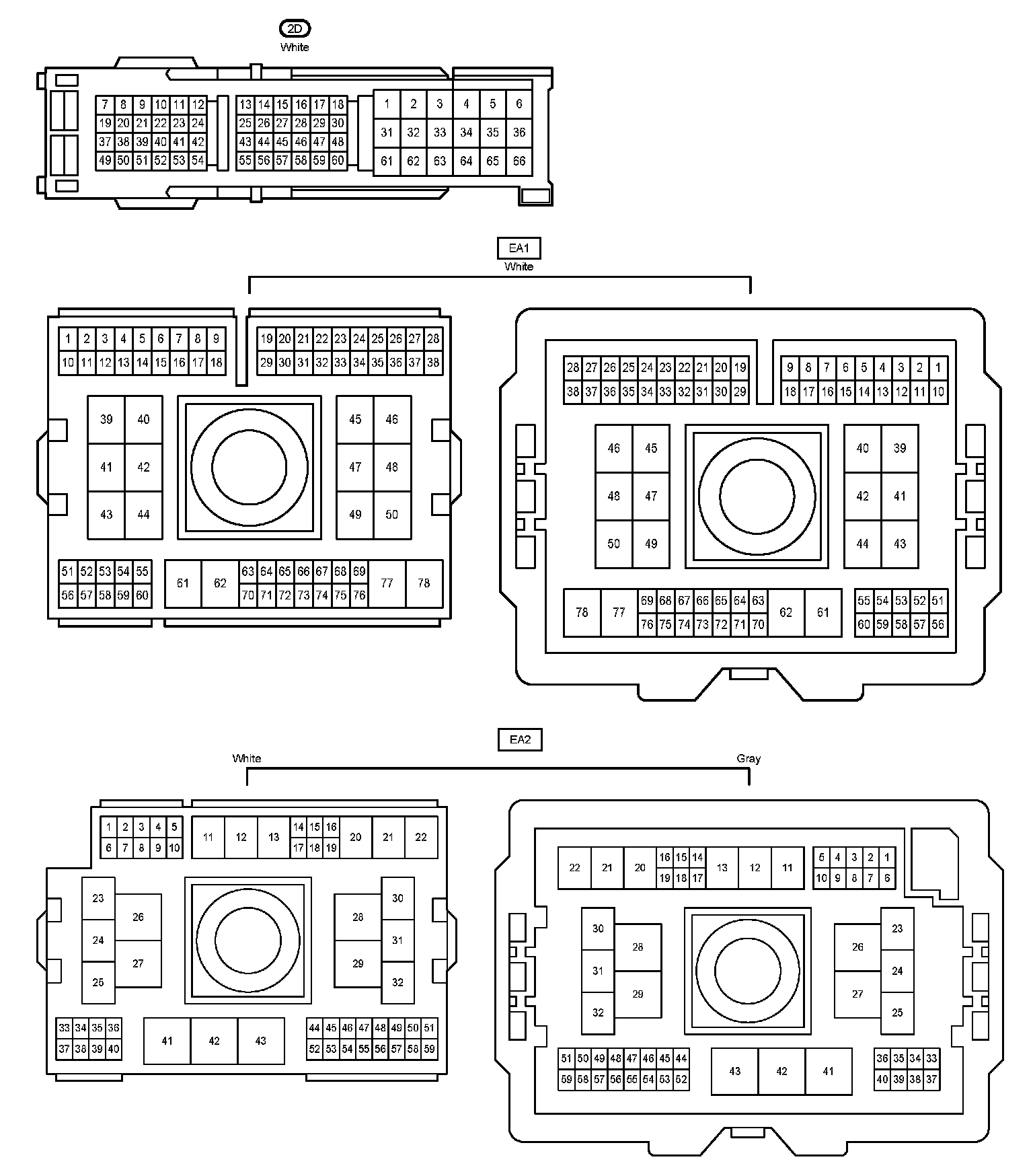

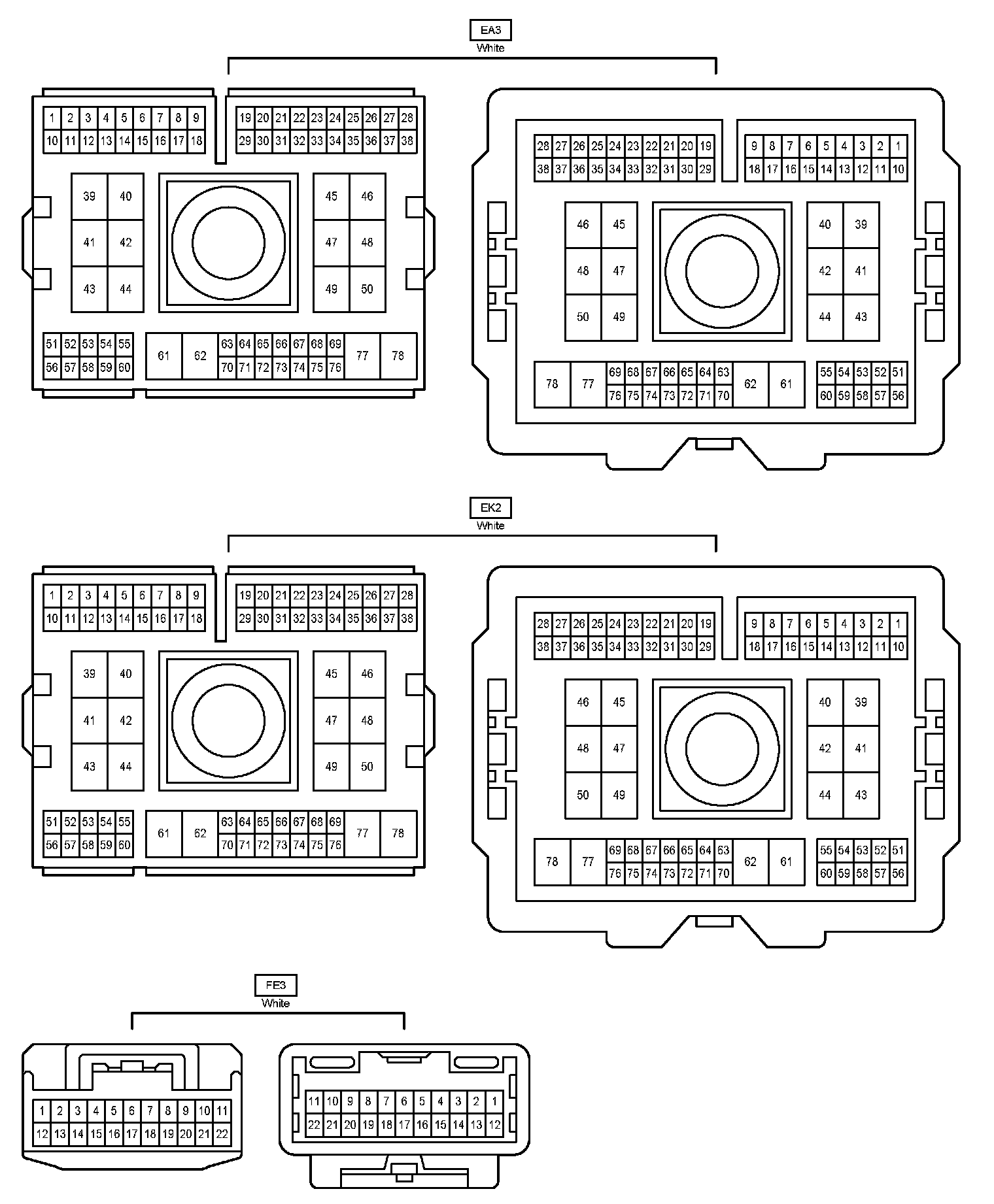

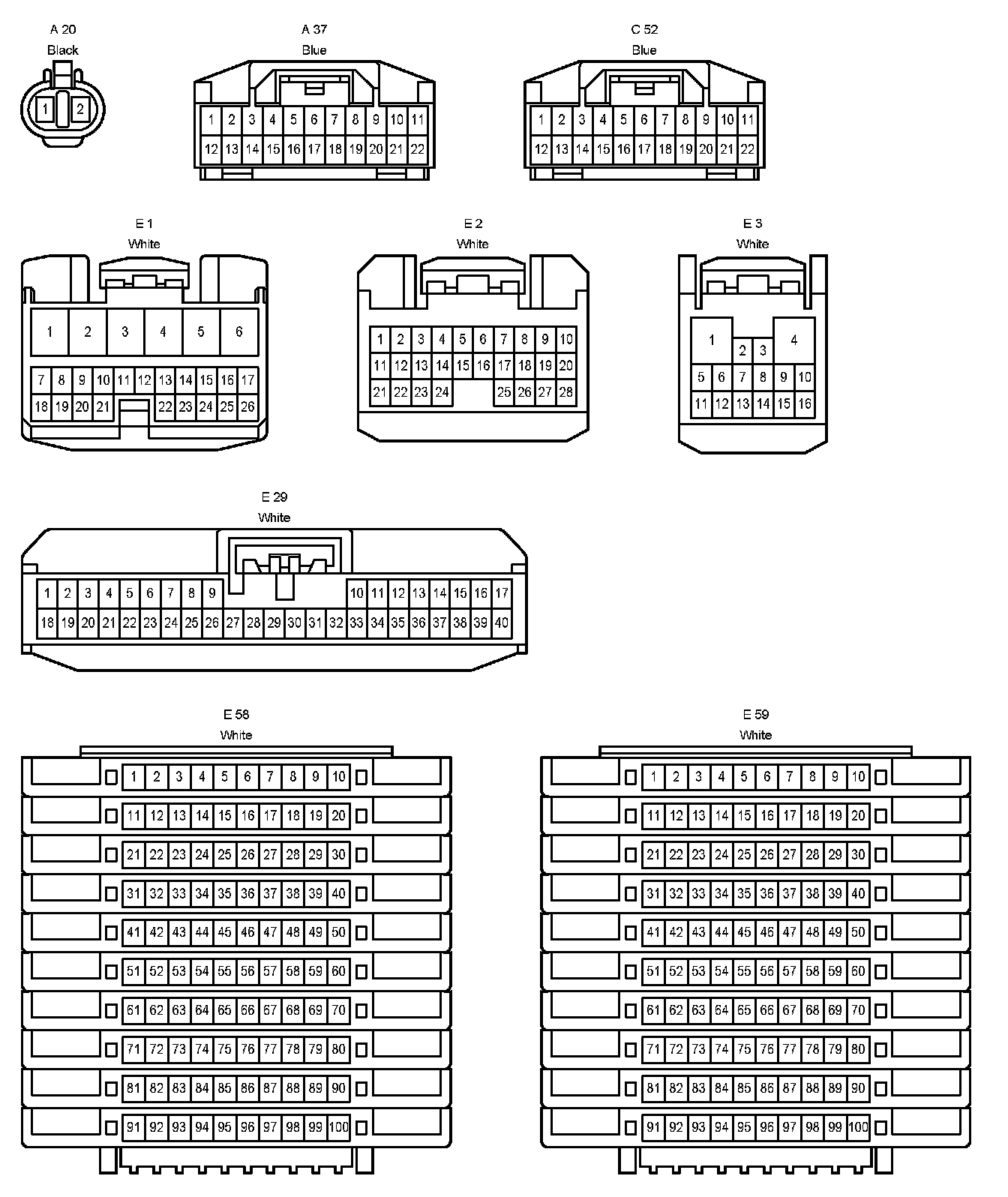

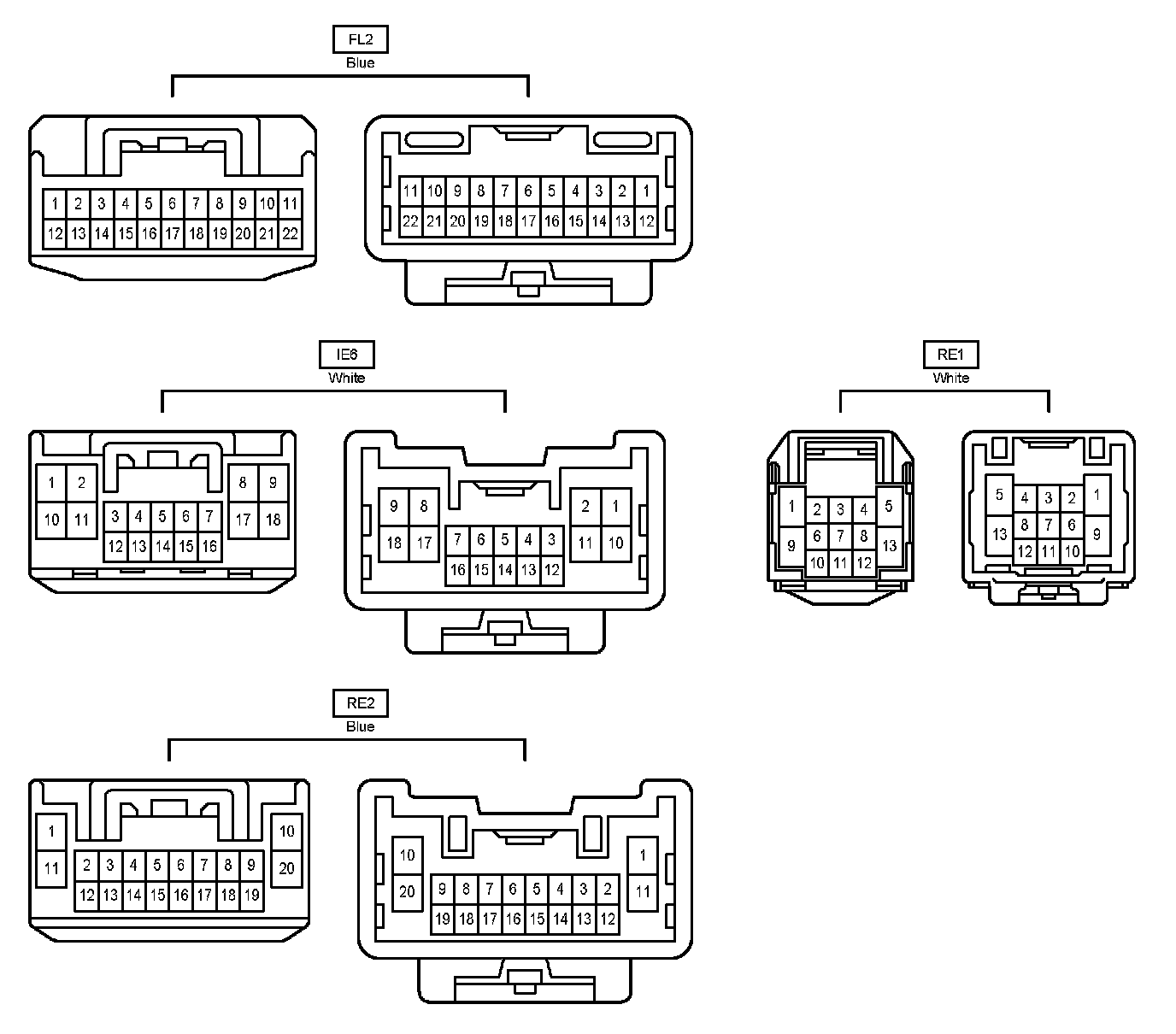

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
