Removal

EXTERIOR PANELS / TRIM: ROOF CARRIER: REMOVAL






1. REMOVE FRONT ROOF RACK LEG COVER LH
(a) Detach the 4 claws and 2 guides, and remove the cover.
2. REMOVE FRONT ROOF RACK LEG COVER RH
HINT:
Use the same procedures described for the LH side.





3. REMOVE REAR ROOF RACK LEG COVER LH
(a) Detach the 4 claws and 2 guides, and remove the cover.
4. REMOVE REAR ROOF RACK LEG COVER RH
HINT:
Use the same procedures described for the LH side.

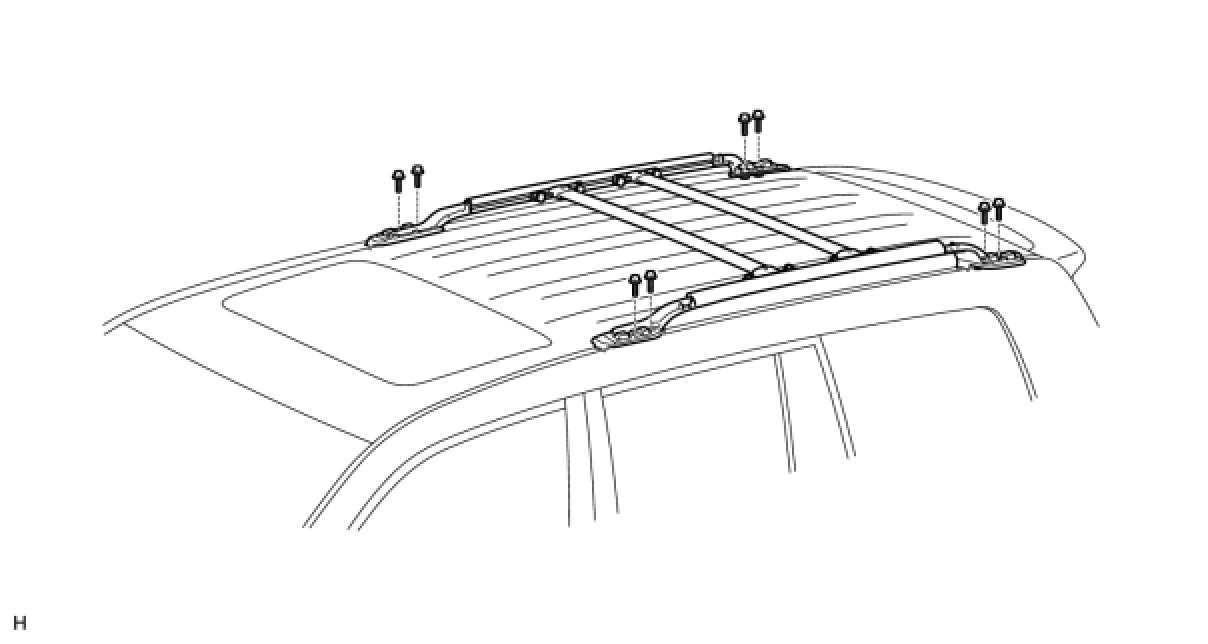

5. REMOVE ROOF CARRIER ASSEMBLY
(a) Remove the 8 bolts and roof carrier.
