Reassembly

EXTERIOR PANELS / TRIM: ROOF CARRIER: REASSEMBLY

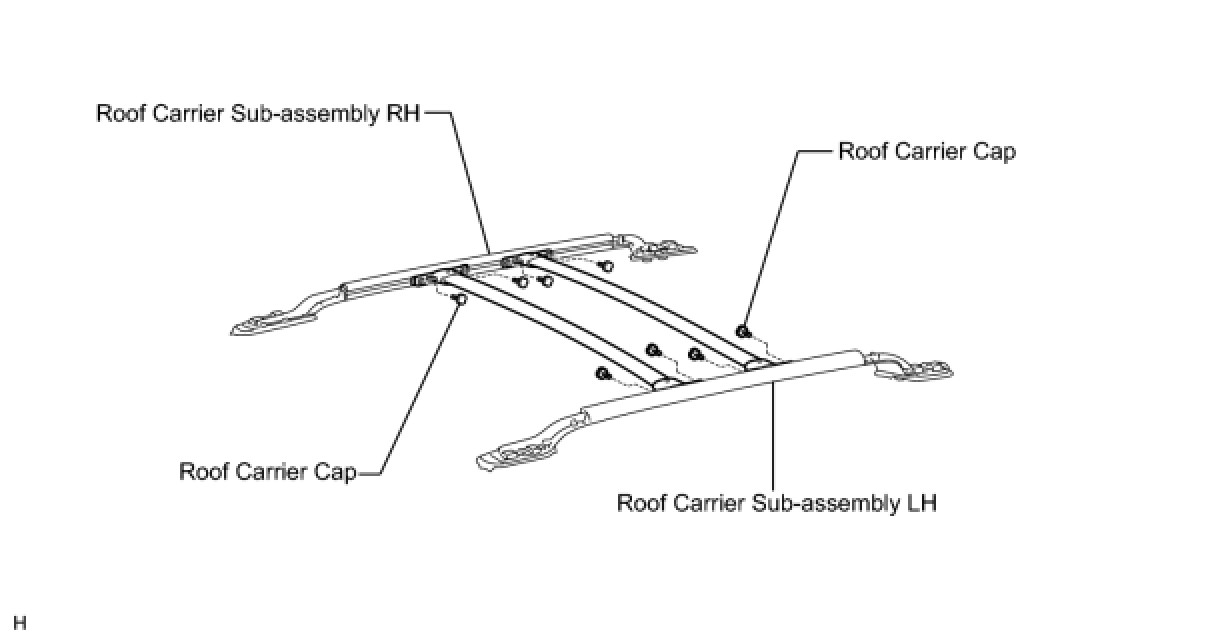

1. INSTALL CENTER ROOF RACK SUPPORT SUB-ASSEMBLY
(a) Install the 2 roof rack supports to the roof carrier sub-assembly LH and RH.
(b) Install the 8 roof carrier caps.
HINT:
Loosely install the roof carrier caps so that the roof rack support position can be adjusted after the roof carrier assembly is installed.





2. INSTALL NO. 2 ROOF CARRIER SEAL
(a) Install 8 new No. 2 roof carrier seals.






3. INSTALL REAR ROOF RACK LEG CUSHION LH
(a) Attach the 4 clips to install the cushion.
4. INSTALL REAR ROOF RACK LEG CUSHION RH
HINT:
Use the same procedures described for the LH side.





5. INSTALL FRONT ROOF RACK LEG CUSHION LH
(a) Attach the 4 clips to install the cushion.
6. INSTALL FRONT ROOF RACK LEG CUSHION RH
HINT:
Use the same procedures described for the LH side.
