Disassembly

EXTERIOR PANELS / TRIM: ROOF CARRIER: DISASSEMBLY






1. REMOVE FRONT ROOF RACK LEG CUSHION LH

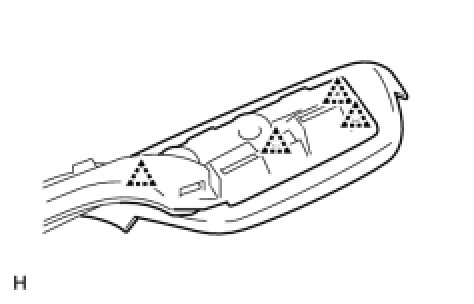

(a) Detach the 4 clips and remove the cushion.
2. REMOVE FRONT ROOF RACK LEG CUSHION RH
HINT:
Use the same procedures described for the LH side.





3. REMOVE REAR ROOF RACK LEG CUSHION LH

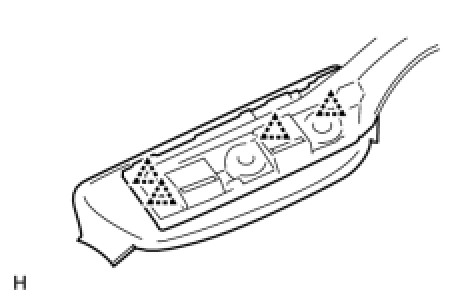

(a) Detach the 4 clips and remove the cushion.
4. REMOVE REAR ROOF RACK LEG CUSHION RH
HINT:
Use the same procedures described for the LH side.

5. REMOVE NO. 2 ROOF CARRIER SEAL
(a) Remove the 8 No. 2 roof carrier seals.
6. REMOVE CENTER ROOF RACK SUPPORT SUB-ASSEMBLY

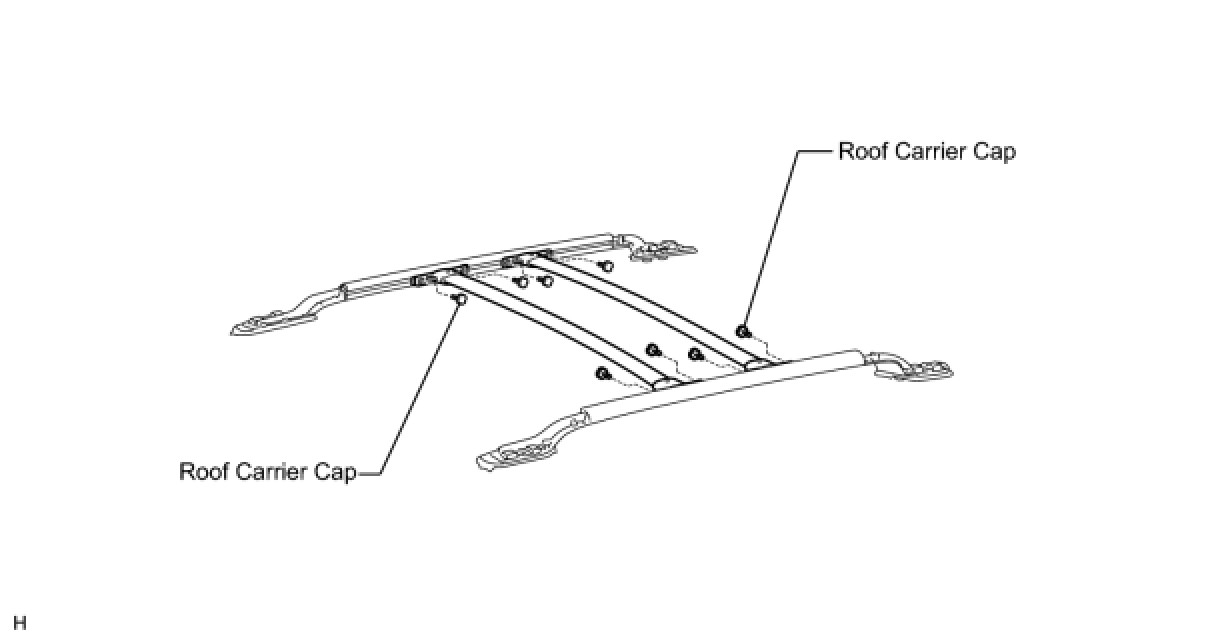

(a) Remove the 8 roof carrier caps and 2 roof rack supports.
