Removal

MIRROR (INT): INNER REAR VIEW MIRROR: REMOVAL

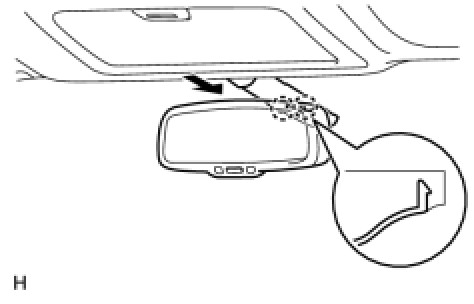

1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER
(a) Detach the 2 claws and remove the cover as shown in the illustration.






2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY
(a) Disconnect the connector.
(b) Using a T20 "TORX" socket wrench, remove the screw and inner rear view mirror.
