Power Mirror Control System

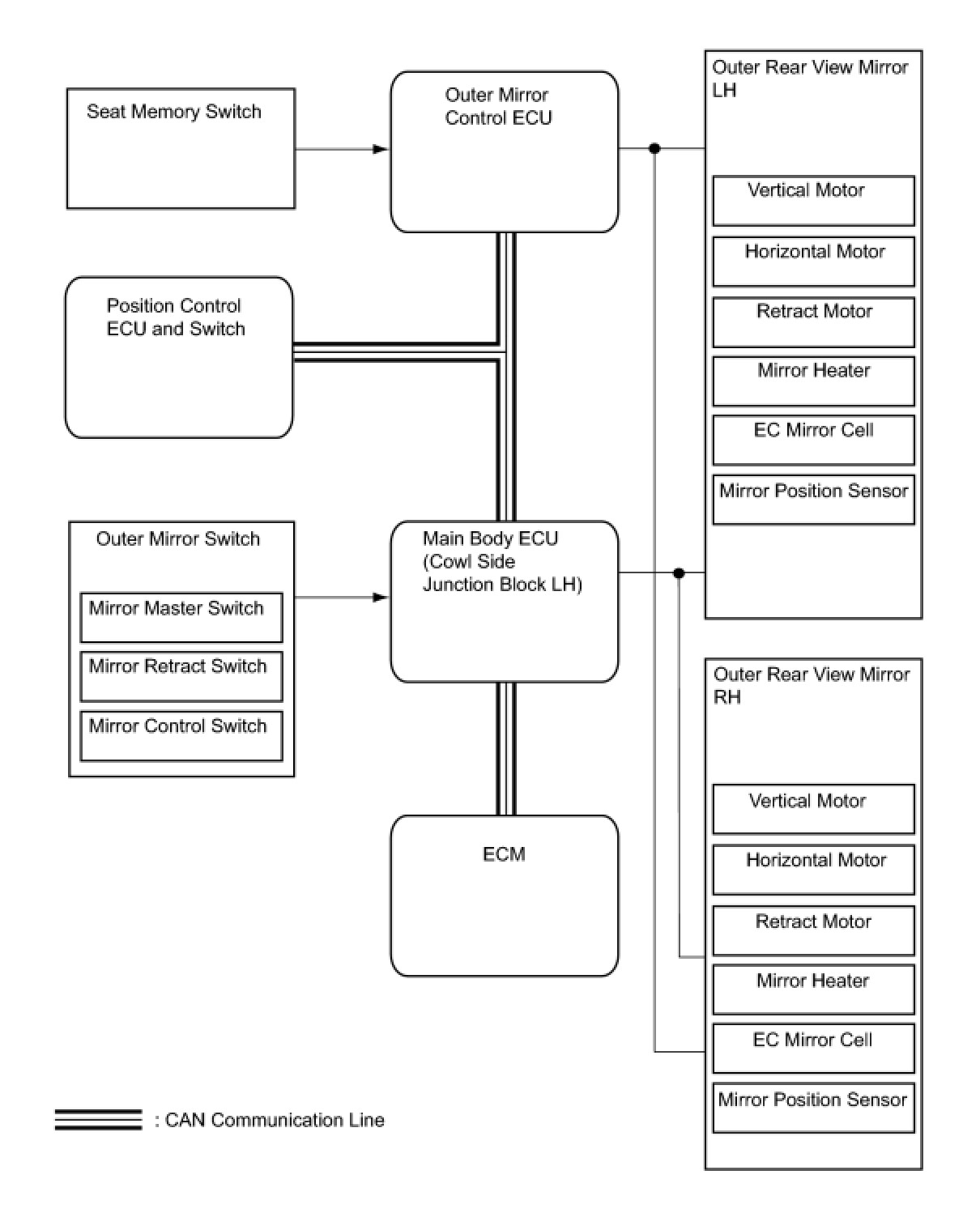

MIRROR (EXT): POWER MIRROR CONTROL SYSTEM: SYSTEM DIAGRAM

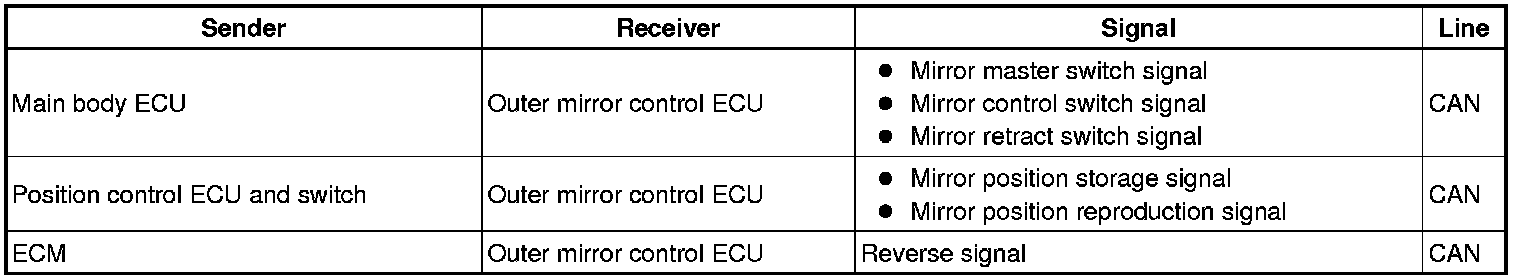

Communication Table





MIRROR (EXT): POWER MIRROR CONTROL SYSTEM: SYSTEM DESCRIPTION

MIRROR

1. POWER MIRROR CONTROL SYSTEM DESCRIPTION

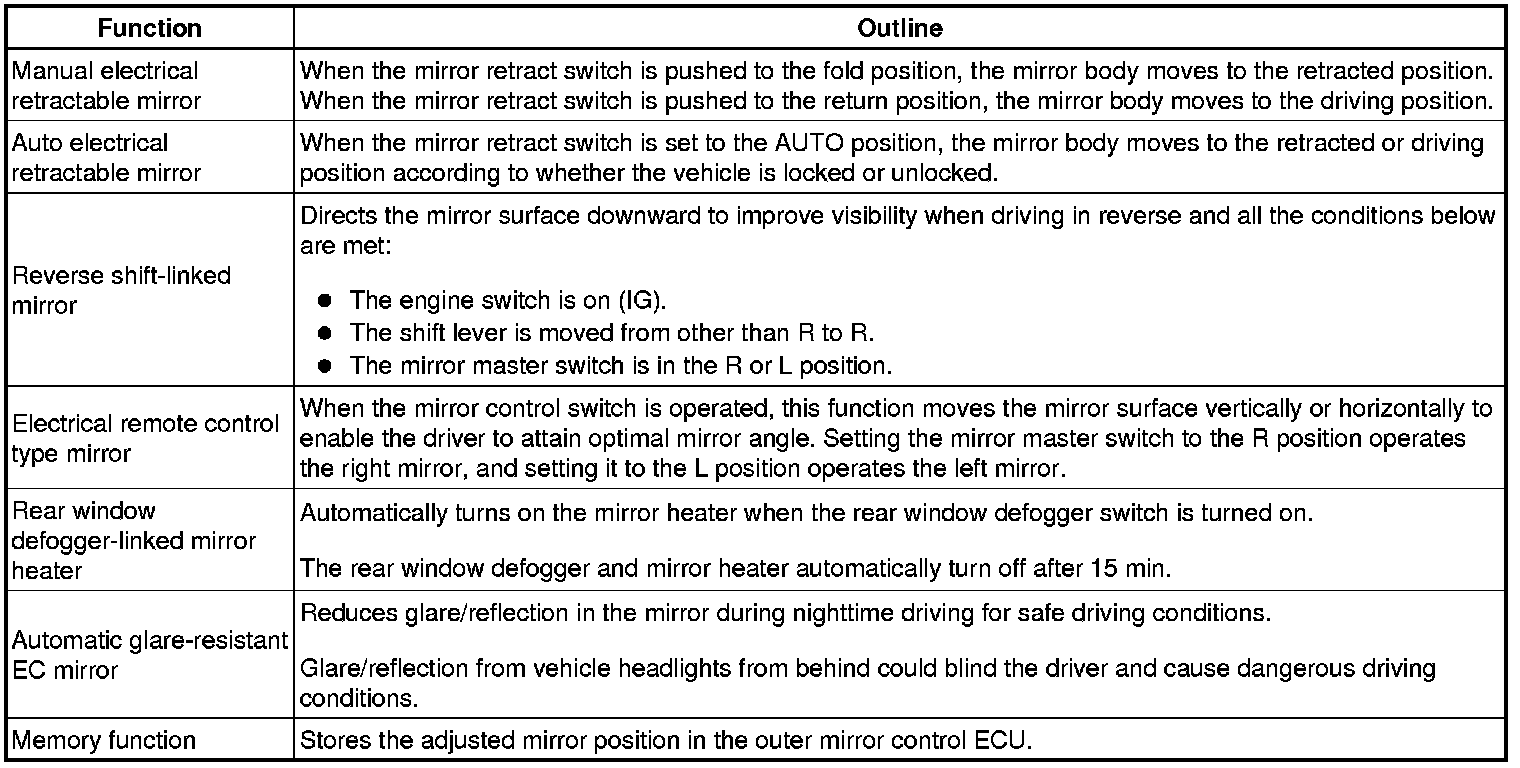

(a) This system has the following functions: automatic glare-resistant electrochromic (EC) mirror, reverse shift-linked mirror, electrical remote control type mirror, memory function, and rear window defogger-linked mirror heater.

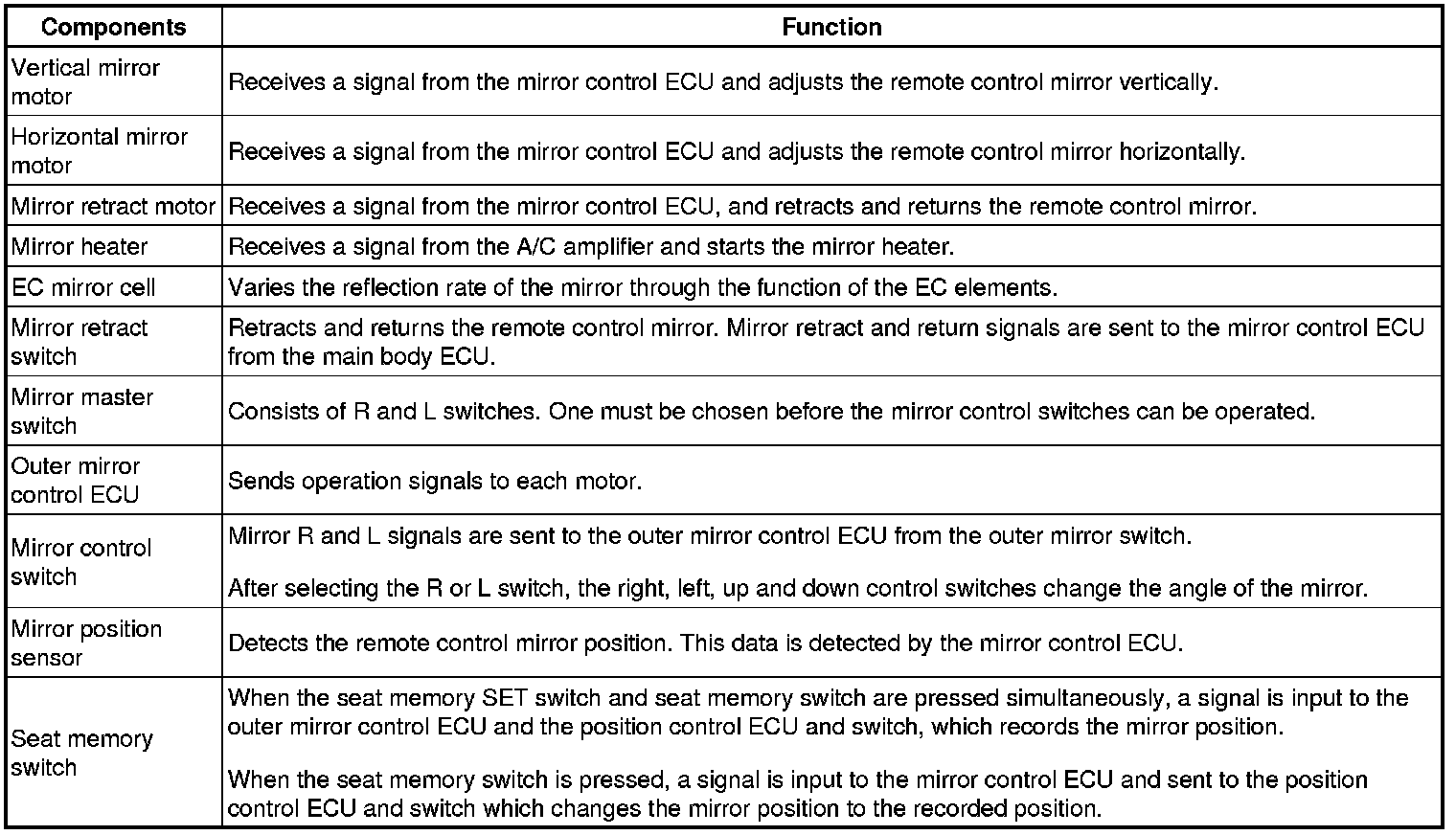

2. FUNCTION OF MAIN COMPONENT






3. SYSTEM OPERATION
(a) The remote control mirror has the following features.
