Removal

THEFT DETERRENT / KEYLESS ENTRY: ELECTRICAL KEY OSCILLATOR (for Front Floor): REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal

2. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY Removal

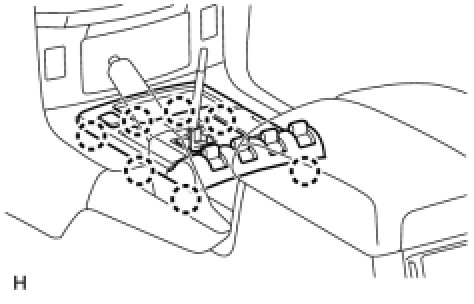

3. REMOVE POSITION INDICATOR HOUSING ASSEMBLY






(a) Detach the 7 claws.
(b) Disconnect the connectors and remove the position indicator housing.

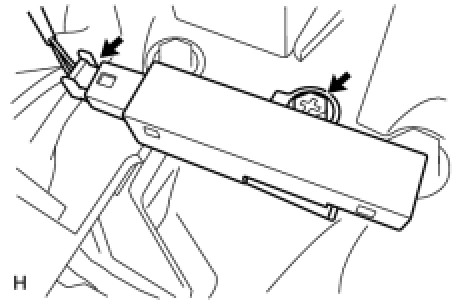

4. REMOVE INDOOR ELECTRICAL KEY OSCILLATOR






(a) Disconnect the connector.
(b) Remove the screw and electrical key oscillator.

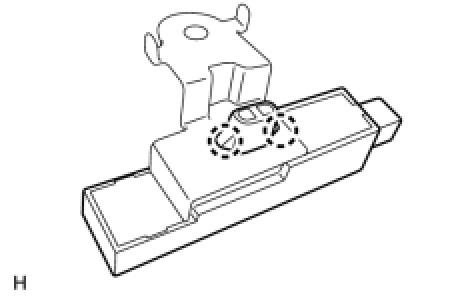

(c) Detach the 2 claws and remove the bracket.
