Back Door Opener Switch









DOOR / HATCH: BACK DOOR OPENER SWITCH: INSPECTION

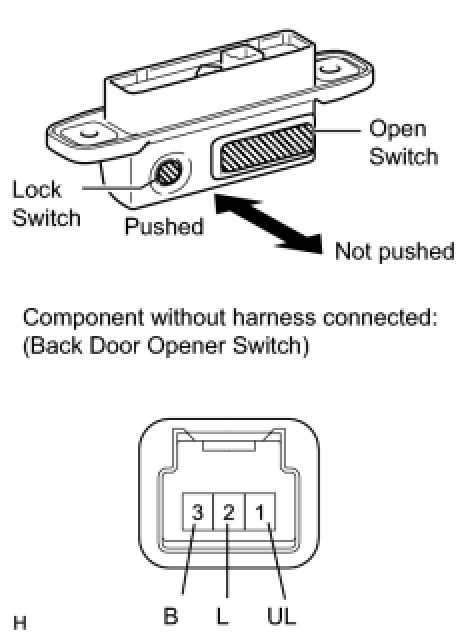

1. INSPECT BACK DOOR OPENER SWITCH ASSEMBLY

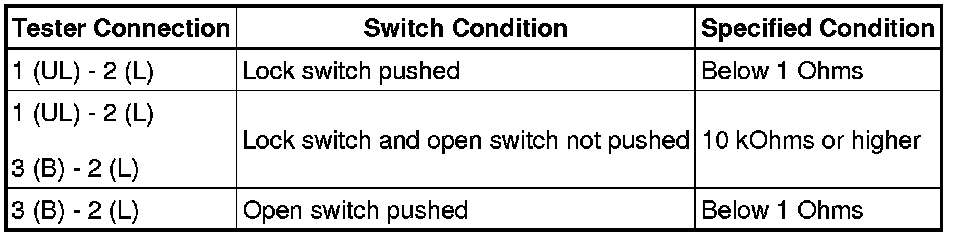

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the back door opener switch assembly.
