Disposal

DOOR / HATCH: BACK DOOR SUPPORT: DISPOSAL

1. DISPOSE OF BACK DOOR STAY ASSEMBLY LH






(a) Horizontally fix the stay in a vise with the piston-rod pulled out.

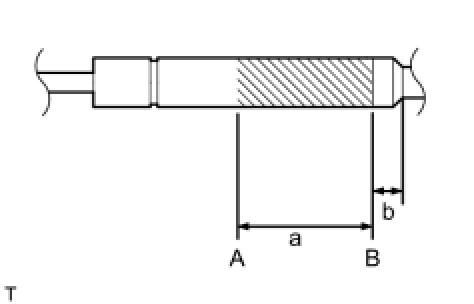

(b) Using a metal saw, gradually cut any area between A and B to release the gas.

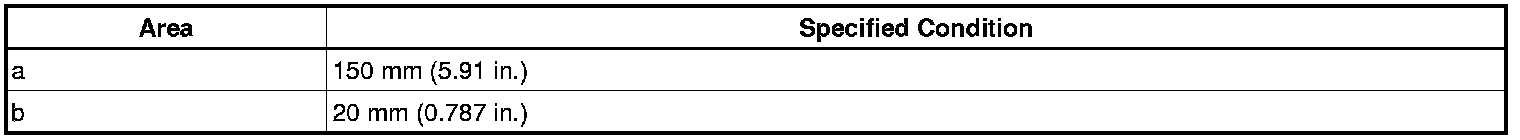

Standard:





CAUTION:
As metal debris may be blown outward by the gas, you must:
- Wear protective glasses.
- Cover the area being cut.
NOTICE:
The gas inside the back door stay is colorless, odorless and harmless. As there is a possibility that metal debris could scatter, cover the back door stay with a piece of cloth or other material.
