Removal

DOOR / HATCH: HOOD SUPPORT: REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE HOOD SUPPORT ASSEMBLY LH

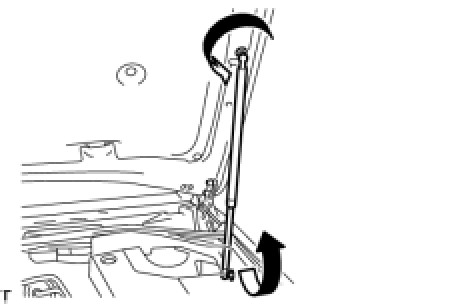

(a) Remove the bolt and hood support from the hood.
CAUTION:
Remove the hood support while supporting the hood by hand.


(b) Remove the bolt and hood support.
