Disposal

DOOR / HATCH: HOOD SUPPORT: DISPOSAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISPOSE OF HOOD SUPPORT ASSEMBLY






(a) Horizontally fix the hood support in a vise with the piston-rod pulled out.
(b) Wear safety glasses. Gradually cut any area between A and B shown in the illustration using a metal saw and gradually release the gas.

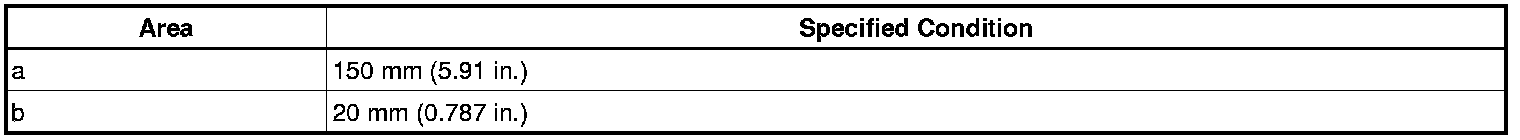

Standard:





CAUTION:
As metal debris may be blown outward by the gas, you must:
- Wear protective glasses.
- Cover the area being cut.
NOTICE:
The gas inside the hood support is colorless, odorless and harmless. As there is a possibility that metal debris could scatter, cover the hood support with a piece of cloth or other material.
