Installation

POWER OUTLETS (EXT): TOWING SOCKET: INSTALLATION

1. INSTALL TOWING SOCKET ASSEMBLY






(a) Connect the 2 connectors.

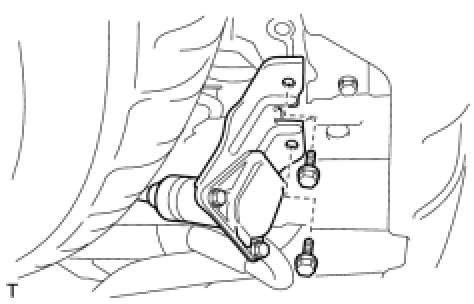

(b) Install the socket with the 2 bolts.
Torque: 19.5 Nm (199 kgf-cm, 14 ft-lbf)
