Cellular Phone Registration Failure, Phone Directory Transfer Failure

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: Cellular Phone Registration Failure, Phone Directory Transfer Failure

Cellular Phone Registration Failure, Phone Directory Transfer Failure

INSPECTION PROCEDURE

PROCEDURE

1. CHECK CURRENT CONDITION
(a) Check for "Bluetooth" capable cellular phones and vehicles in the area.

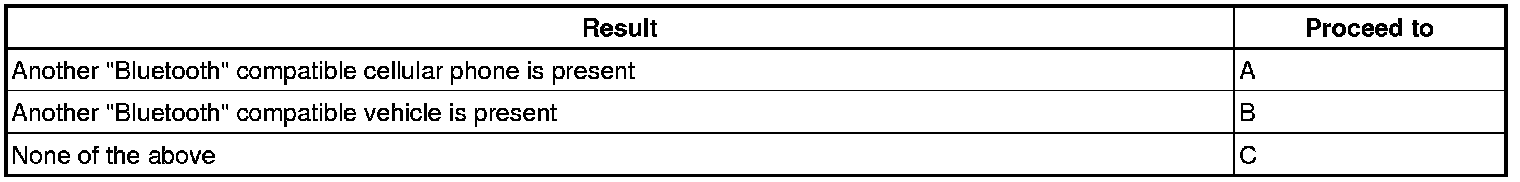

Result





C -- CHECK CELLULAR PHONE
B -- CHECK USING ANOTHER "BLUETOOTH" CAPABLE VEHICLE
A -- Continue to next step.
2. CHECK USING ANOTHER CELLULAR PHONE
(a) Check if the system functions using another "Bluetooth" compatible cellular phone.
HINT:
- Confirm that either the same or a different version of another "Bluetooth" compatible cellular phone complies with the system.
- Depending on the version, some "Bluetooth" compatible cellular phones cannot be used.
OK:
System functions.

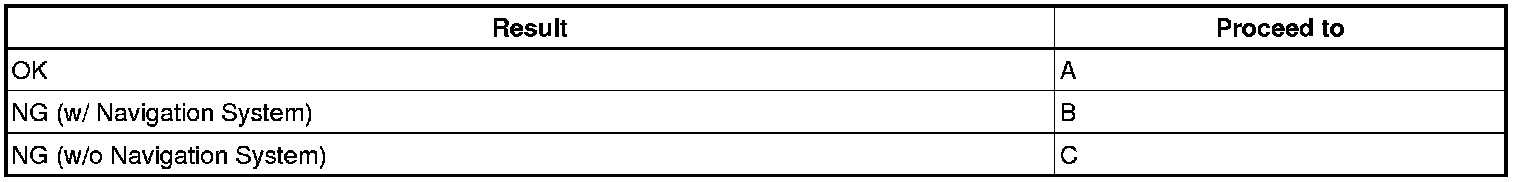

Result





C -- REPLACE MULTI-DISPLAY ASSEMBLY
B -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
A -- USE "BLUETOOTH" COMPATIBLE CELLULAR PHONE (DEPENDING ON THE VERSION)
3. CHECK USING ANOTHER "BLUETOOTH" CAPABLE VEHICLE
(a) Register the cellular phone with another vehicle and check if the system functions normally.
HINT:
Depending on the version, some "Bluetooth" compatible cellular phones cannot be used.

OK:
System functions.

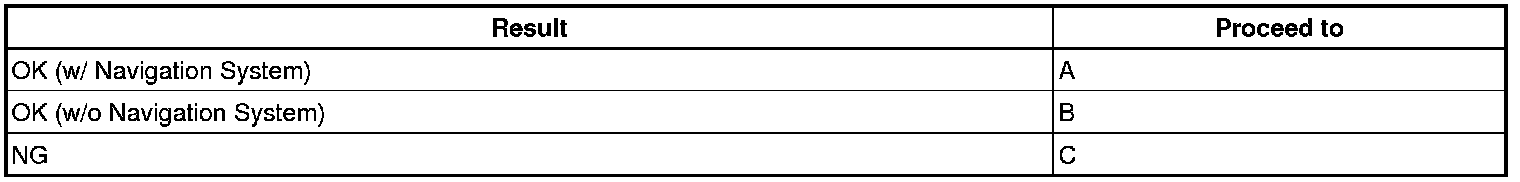

Result





C -- USE "BLUETOOTH" COMPATIBLE CELLULAR PHONE
B -- REPLACE MULTI-DISPLAY ASSEMBLY
A -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
4. CHECK CELLULAR PHONE
(a) Check if the cellular phone is "Bluetooth" compatible.
HINT:
Some versions of "Bluetooth" compatible cellular phones may not function.

OK:
The phone is "Bluetooth" compatible.
NG -- USE "BLUETOOTH" COMPATIBLE CELLULAR PHONE
OK -- Continue to next step.
5. CHECK CELLULAR PHONE
(a) Check if a call can be made from the cellular phone.
HINT:
When the battery is low, registration or directory transfer cannot be performed.

OK:
A call can be made from the cellular phone.

Result





C -- REPLACE CELLULAR PHONE
B -- REPLACE MULTI-DISPLAY ASSEMBLY
A -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
