Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier

Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier

DESCRIPTION

This circuit sends a sound signal from the radio receiver to the stereo component amplifier.

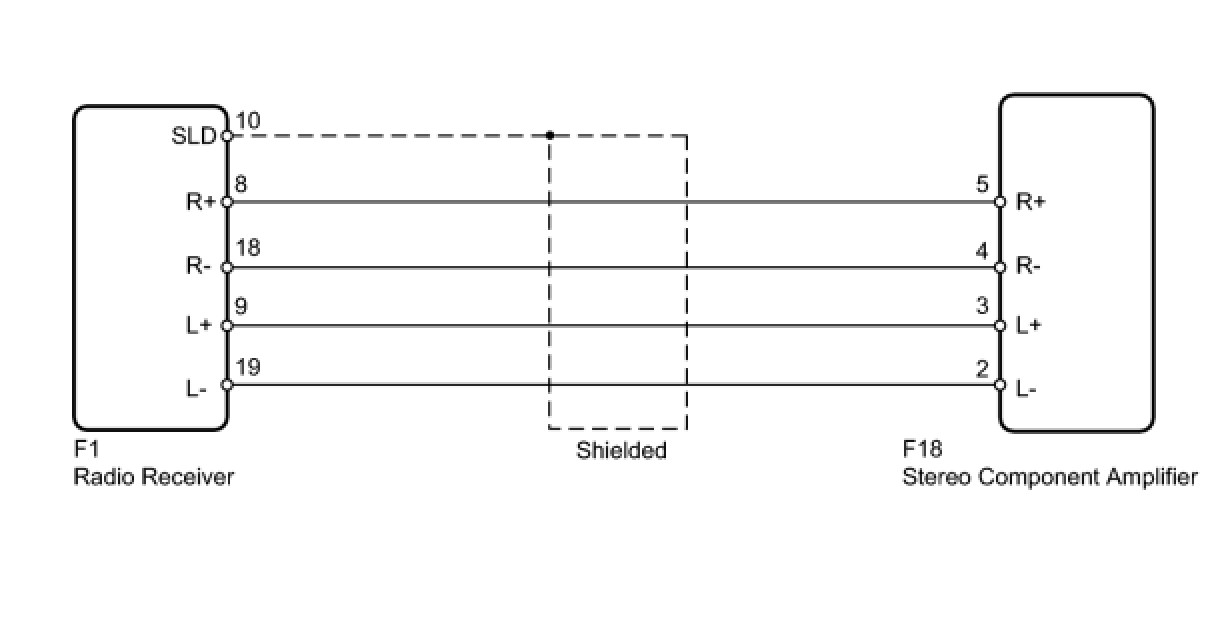

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)

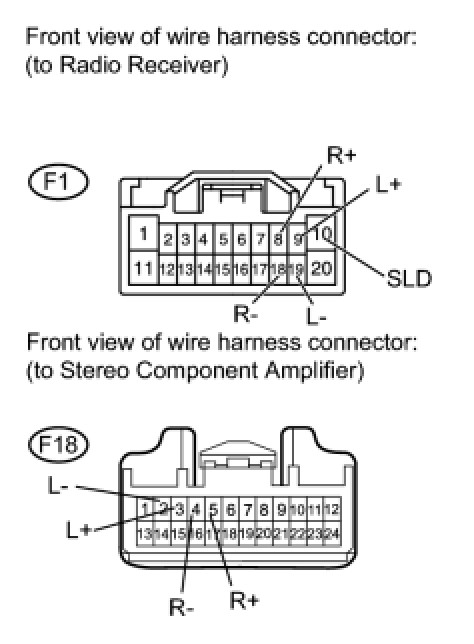

(a) Disconnect the F1 receiver connector.
(b) Disconnect the F18 amplifier connector.

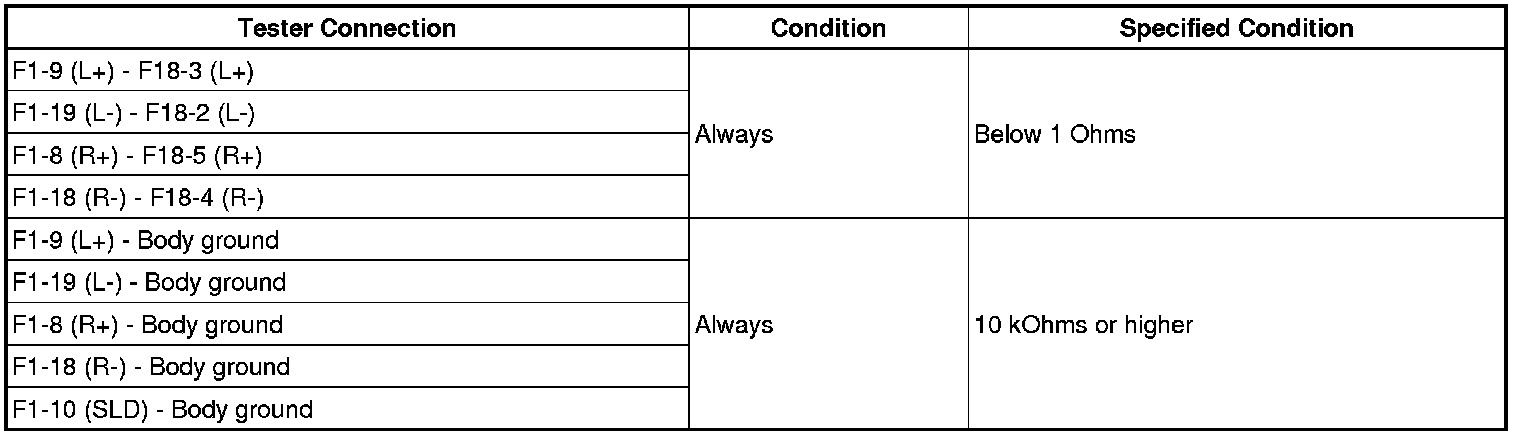

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
