Front Door Speaker









AUDIO / VIDEO: FRONT DOOR SPEAKER: INSPECTION





1. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

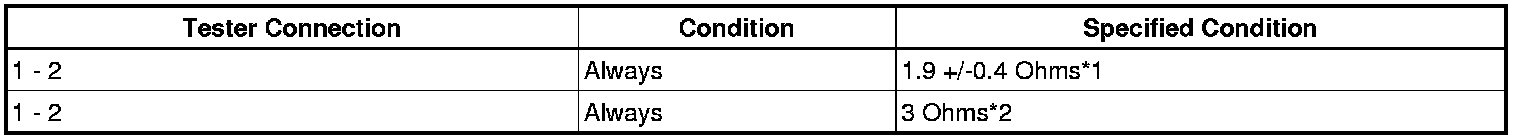

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





- *1: for 19 Speakers
- *2: for 9 Speakers
If the result is not as specified, replace the front No. 1 speaker assembly.
