AUDIO / VIDEO: LUGGAGE SPEAKER: INSTALLATION

1. INSTALL NO. 1 WOOFER BOX SPEAKER ASSEMBLY

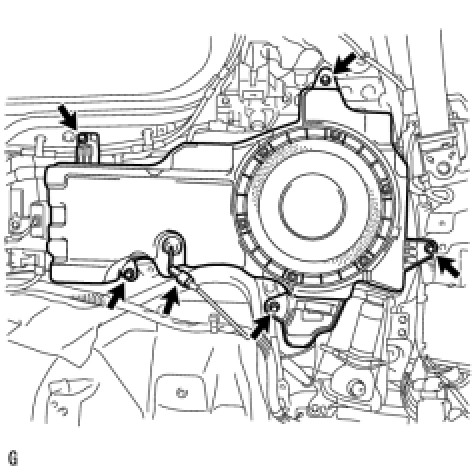

(a) Install the box speaker with the 5 bolts.






(b) Connect the connector.
2. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH Installation

3. INSTALL REAR SEAT COVER CAP (for Rear No. 2 Seat with Manual Folding-up Function) Installation

4. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Installation

5. INSTALL REAR DOOR SCUFF PLATE RH Installation

6. INSTALL REAR STEP COVER Installation

7. INSTALL REAR FLOOR MAT REAR SUPPORT PLATE Installation

8. INSTALL REAR NO. 2 SEAT ASSEMBLY
(a) w/ Automatic Folding-up Function:
Install the rear No. 2 seat assembly Installation.
(b) w/ Manual Folding-up Function:
Install the rear No. 2 seat assembly Installation.
9. INSTALL REAR NO. 2 SEAT HINGE COVER RH Installation

10. INSTALL REAR SEAT CUSHION HINGE COVER RH Installation

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

12. INSTALL ENGINE ROOM SIDE COVER LH Installation
