Installation

AUDIO / VIDEO: BACK DOOR SPEAKER: INSTALLATION

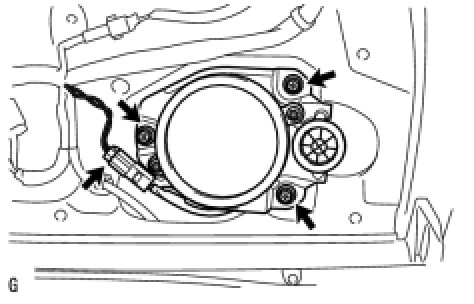

1. INSTALL REAR HEADER SPEAKER ASSEMBLY






(a) Connect the connector.
(b) Install the speaker with the 3 screws.
NOTICE:
Do not touch the cone part of the speaker.

2. INSTALL BACK DOOR GARNISH Reassembly

3. INSTALL BACK DOOR SIDE GARNISH RH Reassembly

4. INSTALL BACK DOOR SIDE GARNISH LH Reassembly

5. INSTALL CENTER BACK DOOR GARNISH Reassembly

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

7. INSTALL ENGINE ROOM SIDE COVER LH Installation
