Audio Recorded to HDD cannot be Played

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: Audio Recorded to HDD cannot be Played

Audio Recorded to HDD cannot be Played

INSPECTION PROCEDURE
HINT:
If the cabin temperature is low (-20°C (-4°F) or less), or high (65°C (149°F) or more), recording may not be possible. In this case, use the A/C, etc. to adjust the cabin temperature.

PROCEDURE

1. CHECK TRUCK
(a) Check if only a certain song cannot be played.

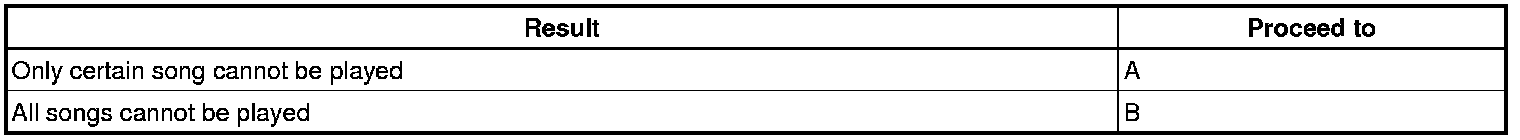

Result





B -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
A -- Continue to next step.
2. CHECK DTC
(a) Check if DTC 69-42 is output Reading and Clearing Diagnostic Trouble Codes.

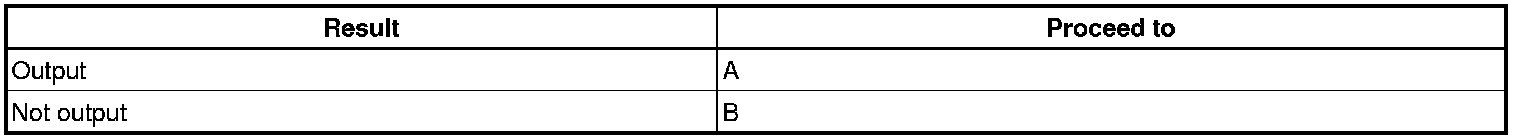

Result





B -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
A -- Continue to next step.
3. DELETE SONG AND RERECORD AUDIO
(a) Delete the song that cannot be played, and rerecord it.
NEXT -- Continue to next step.
4. CLEAR DTC AND CHECK DTC
(a) Clear the DTC and recheck for DTCs Reading and Clearing Diagnostic Trouble Codes.
OK:
DTC is not output.
NG -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
OK -- Continue to next step.
5. PLAY MUSIC
(a) Check if music can be played.
OK:
Can be played.
NG -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
OK -- END
