Television Display Power Source Circuit

AUDIO / VIDEO: REAR SEAT ENTERTAINMENT SYSTEM: Television Display Power Source Circuit

Television Display Power Source Circuit

DESCRIPTION

This circuit provides power to the television display. The power is sent from the battery to the television display through the multi-display selector.

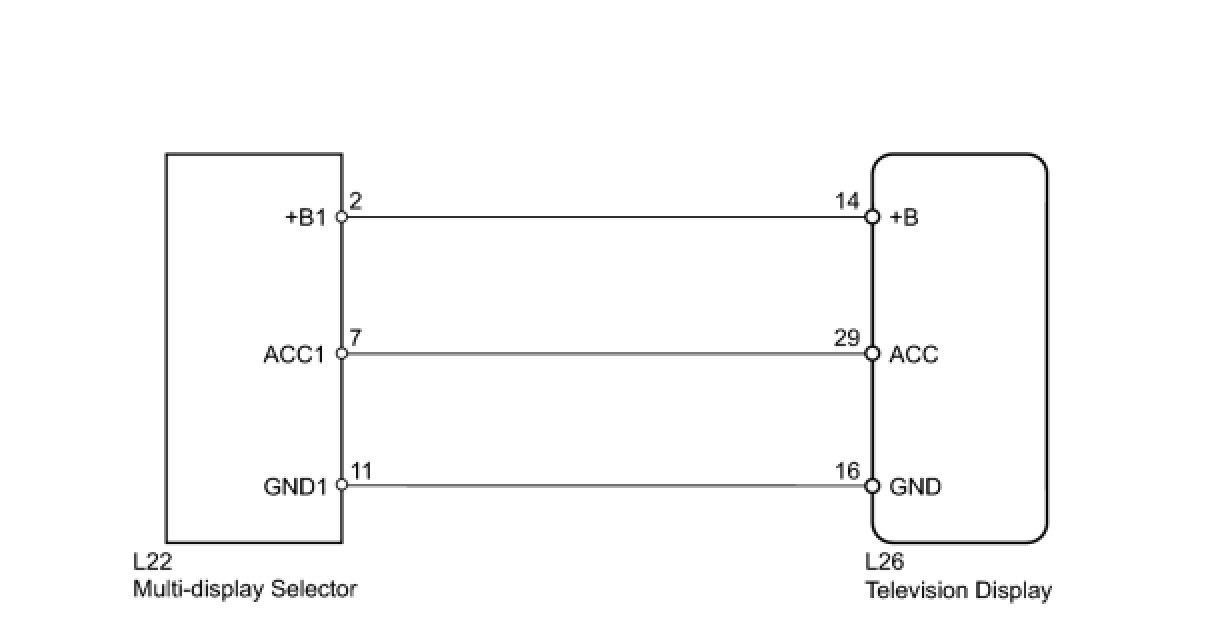

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK TELEVISION DISPLAY ASSEMBLY

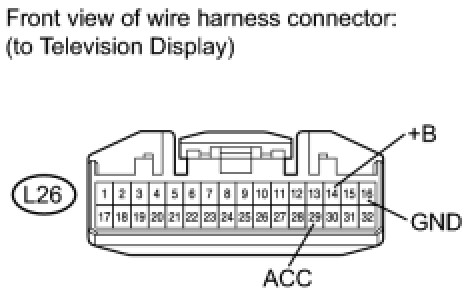

(a) Disconnect the L26 display connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

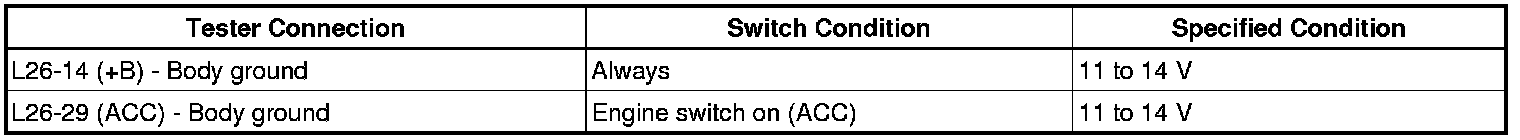

(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:






NG -- CHECK HARNESS AND CONNECTOR (TELEVISION DISPLAY ASSEMBLY - MULTI-DISPLAY SELECTOR)
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
2. CHECK HARNESS AND CONNECTOR (TELEVISION DISPLAY ASSEMBLY - MULTI-DISPLAY SELECTOR)

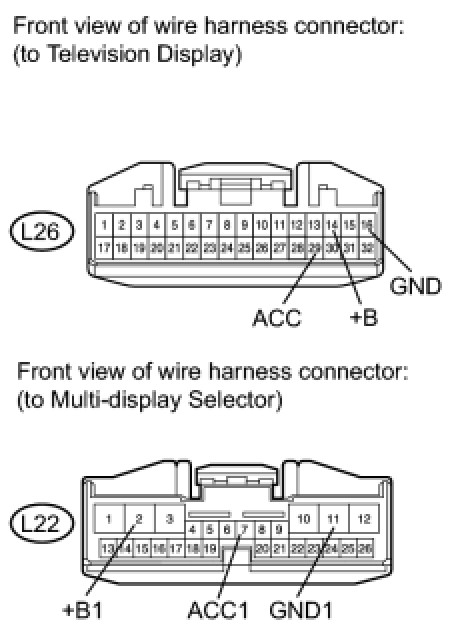

(a) Disconnect the L26 display connector.
(b) Disconnect the L22 selector connector.

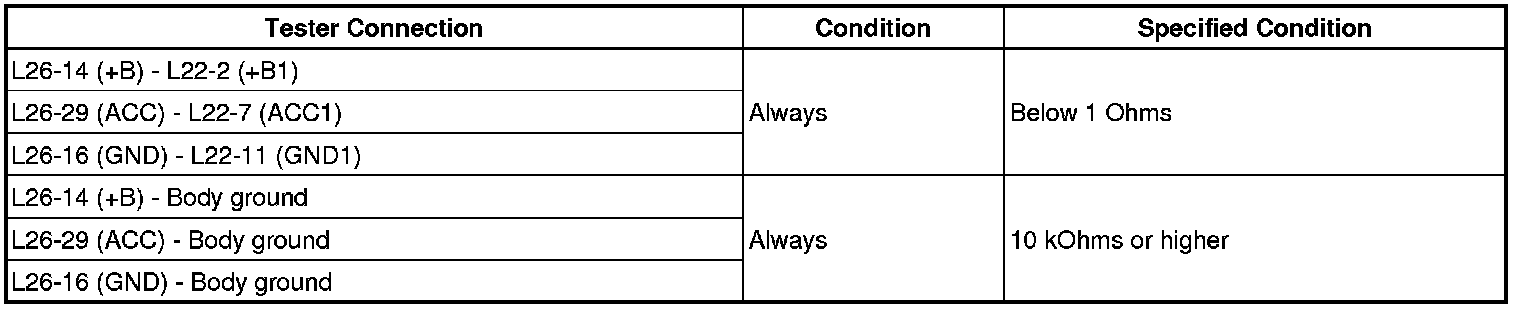

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE MULTI-DISPLAY SELECTOR
