Wide View Front Monitor System

PARK ASSIST / MONITORING: WIDE VIEW FRONT MONITOR SYSTEM: TERMINALS OF ECU

1. CHECK PARKING ASSIST ECU

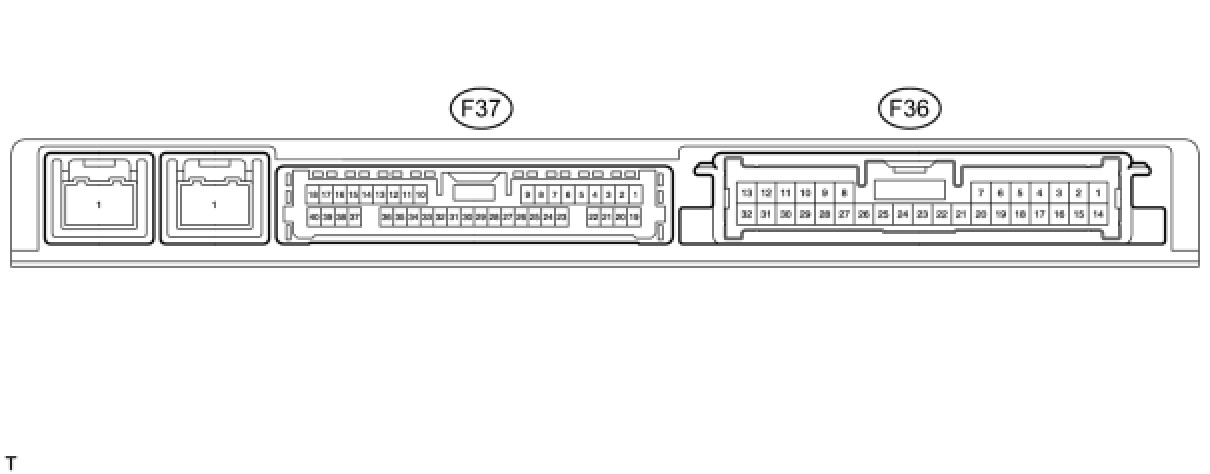

(a) Disconnect the F36 and F37 ECU connectors.

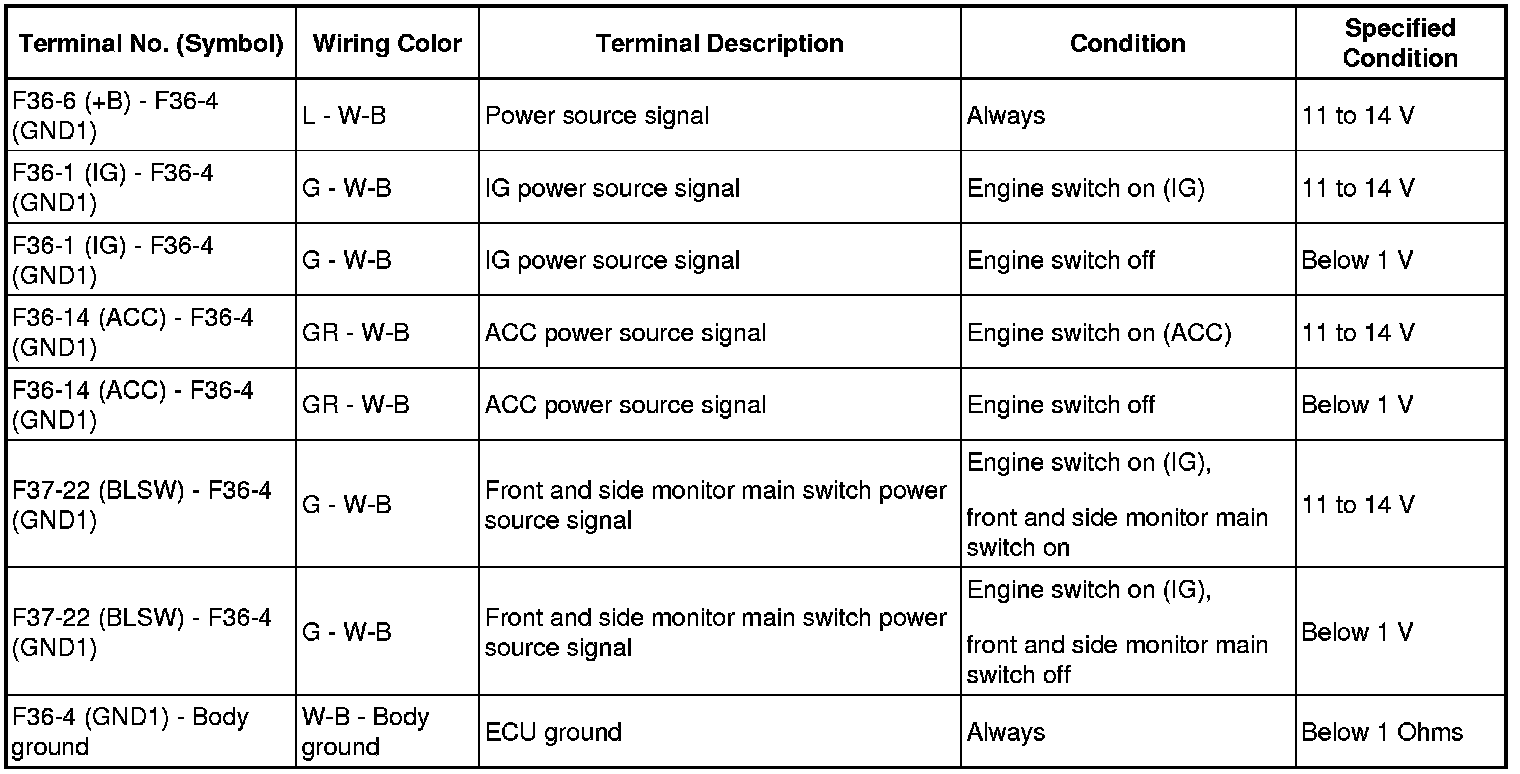

(b) Measure the voltage and resistance according to the value(s) in the table below.






(c) Reconnect the F36 and F37 ECU connectors.

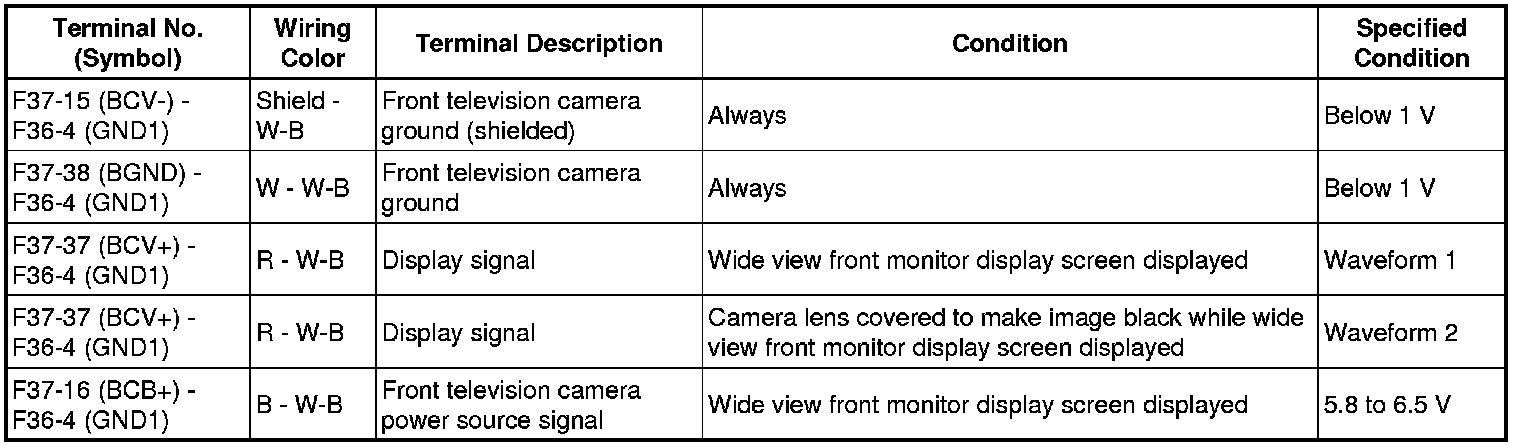

(d) Measure the voltage according to the value(s) in the table below.

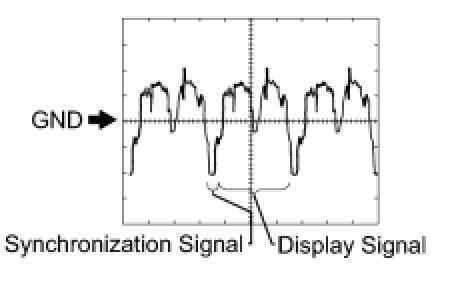

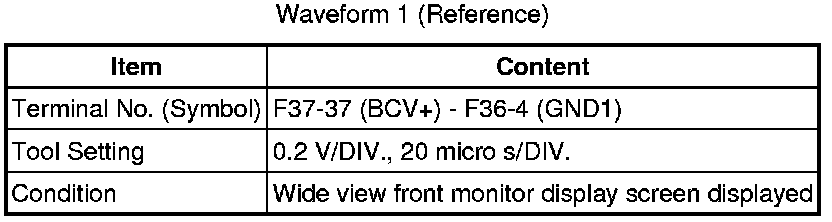

(e) Using an oscilloscope, check the waveform.

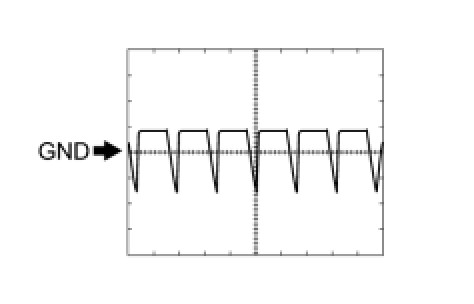

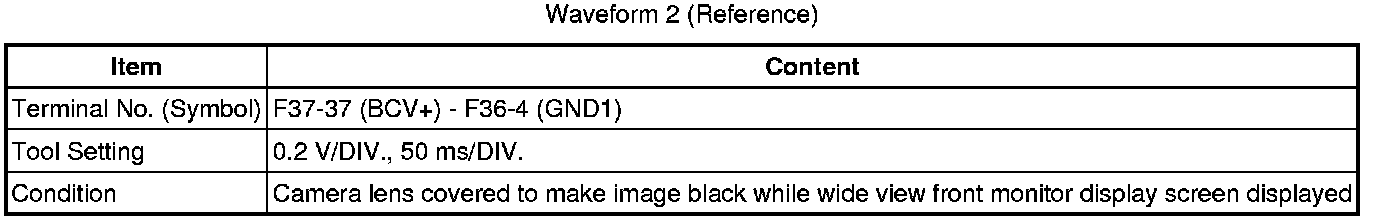

(f) Using an oscilloscope, check the waveform.






2. CHECK DISPLAY AND NAVIGATION MODULE DISPLAY Pinout Values and Diagnostic Parameters
