Side Monitor System

PARK ASSIST / MONITORING: SIDE MONITOR SYSTEM: TERMINALS OF ECU

1. CHECK PARKING ASSIST ECU





(a) Disconnect the F36 and F37 ECU connectors.

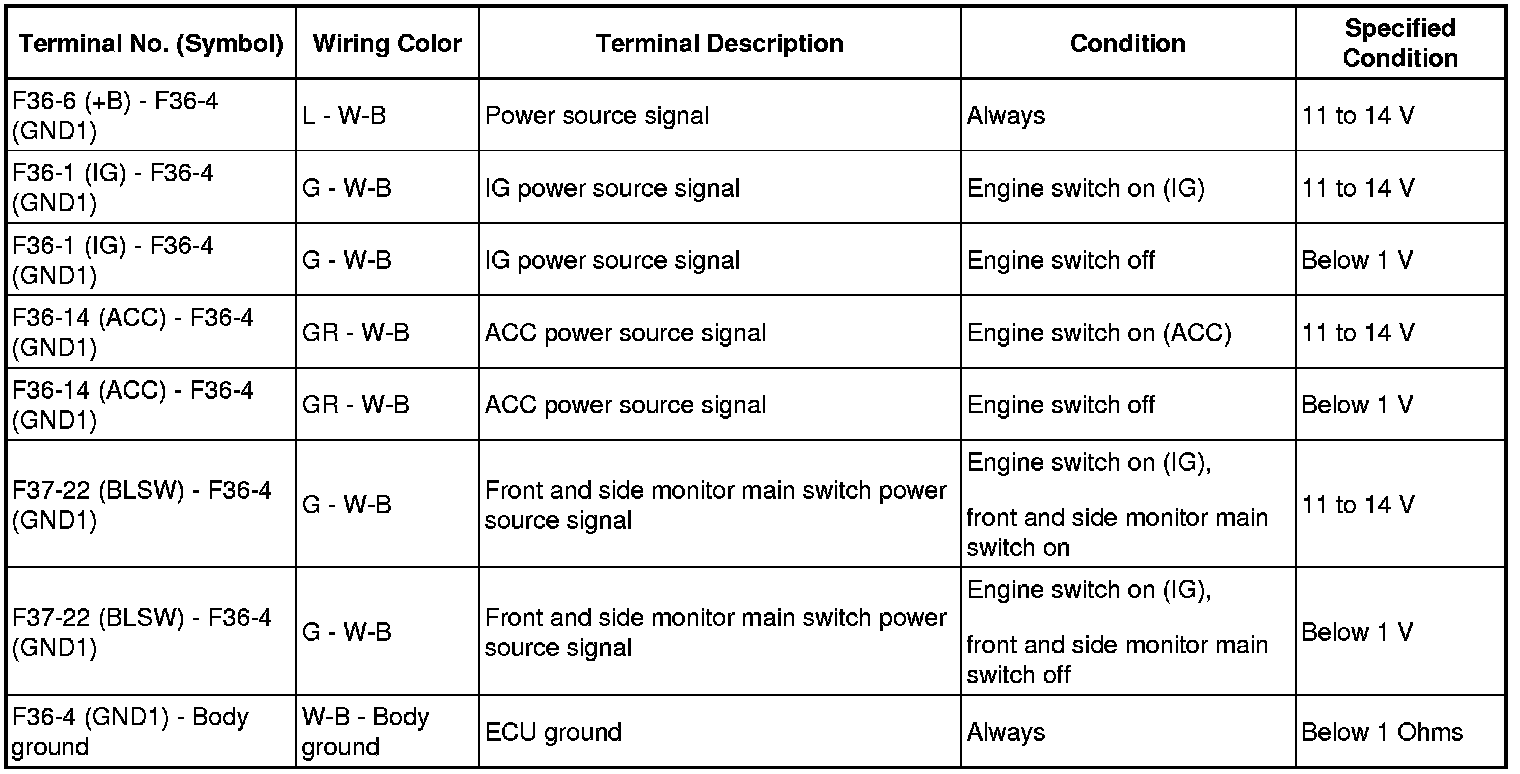

(b) Measure the voltage and resistance according to the value(s) in the table below.






(c) Reconnect the F36 and F37 ECU connectors.

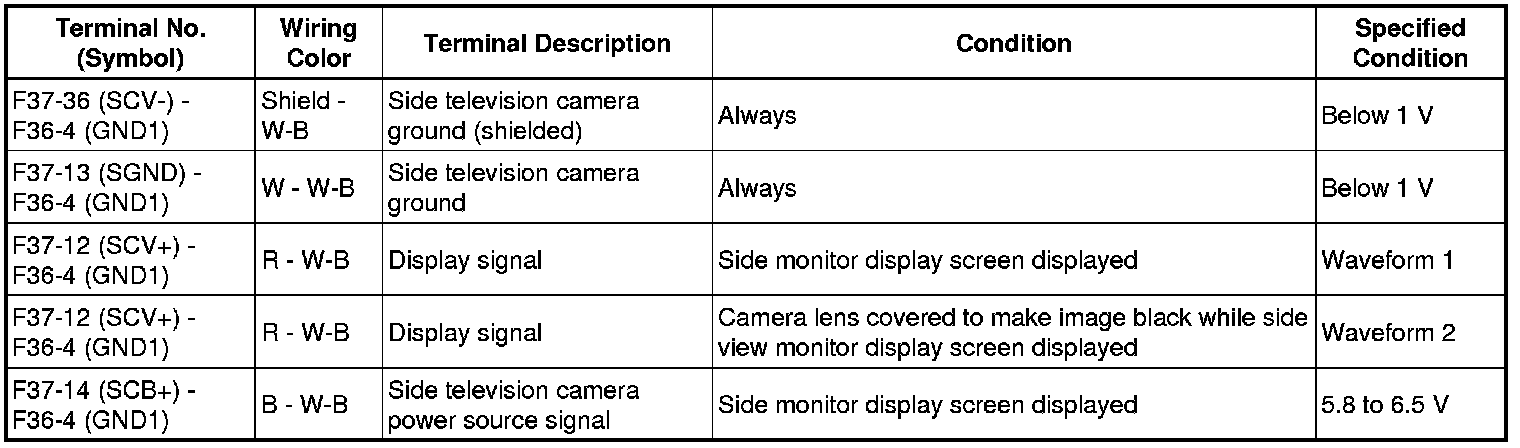

(d) Measure the voltage and waveform according to the value(s) in the table below.

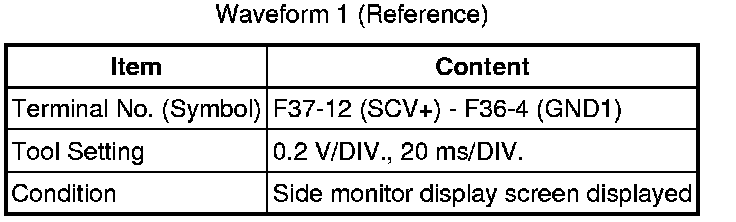

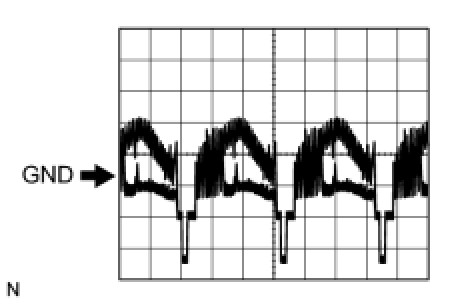

(e) Using an oscilloscope, check waveform 1.

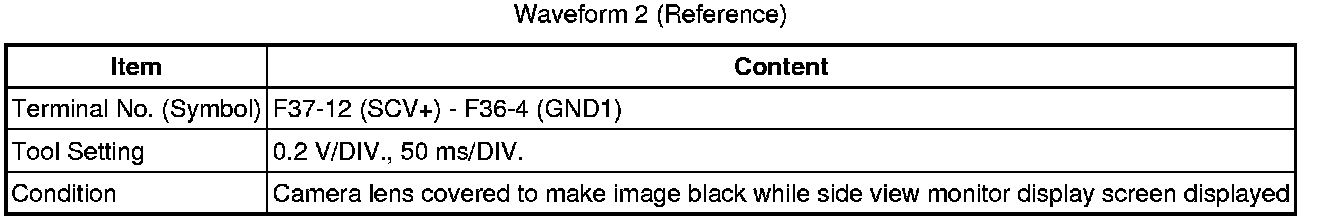

(f) Using an oscilloscope, check waveform 2.
