Wide View Front Monitor System

PARK ASSIST / MONITORING: WIDE VIEW FRONT MONITOR SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- Use the following procedures to troubleshoot the wide view front monitor system.
- *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, replace or recharge the battery before proceeding.
NEXT -- Continue to next step.
3. CHECK COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM*
(a) Use the Techstream to check if the CAN communication system is functioning normally.

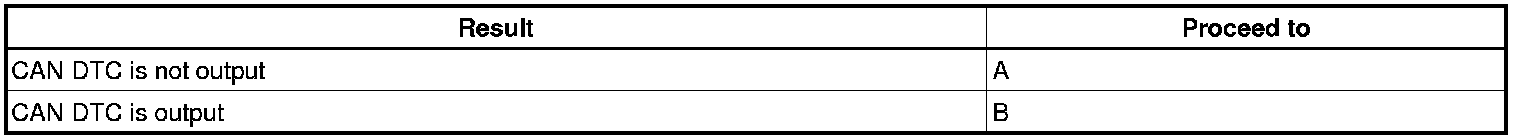

Result





B -- Go to CAN COMMUNICATION SYSTEM
A -- Continue to next step.
4. CHECK DTC OUTPUT
(a) Check for DTCs Wide View Front Monitor System.
(b) Clear the DTCs Wide View Front Monitor System.
(c) Recheck for DTCs Wide View Front Monitor System.

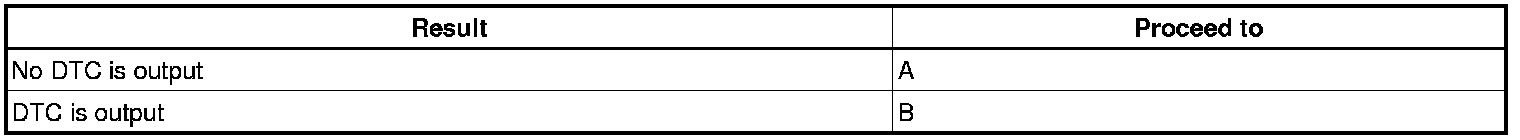

Result





B -- Go to DIAGNOSTIC TROUBLE CODE CHART
A -- Continue to next step.
5. PROBLEM SYMPTOMS TABLE
(a) Refer to the Problem Symptoms Table Wide View Front Monitor System.

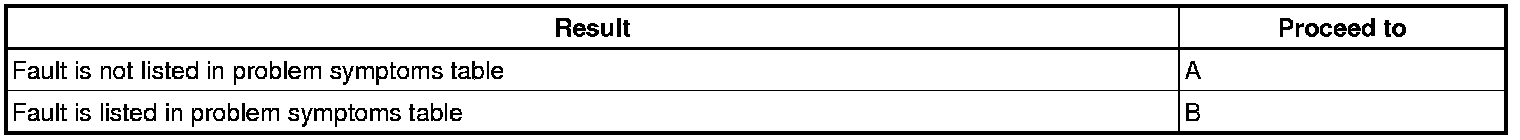

Result





B -- Go to step 7
A -- Continue to next step.
6. OVERALL ANALYSIS AND TROUBLESHOOTING*
(a) Terminals of ECU Wide View Front Monitor System.
NEXT -- Continue to next step.
7. ADJUST, REPAIR OR REPLACE
NEXT -- Continue to next step.
8. CONFIRMATION TEST
NEXT -- END
