Side Monitor System

PARK ASSIST / MONITORING: SIDE MONITOR SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- Use the following procedures to troubleshoot the side monitor system.
- *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, replace or recharge the battery before proceeding.
NEXT -- Continue to next step.
3. CHECK COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM*
(a) Use the Techstream to check if the CAN communication system is functioning normally.

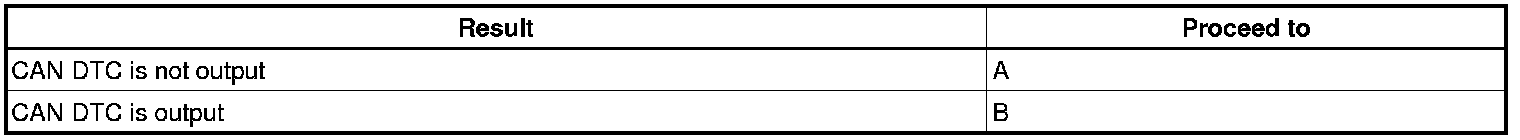

Result





B -- Go to CAN COMMUNICATION SYSTEM
A -- Continue to next step.
4. CHECK DTC OUTPUT
(a) Check for DTCs Side Monitor System.
(b) Clear the DTCs Side Monitor System.
(c) Recheck for DTCs Side Monitor System.

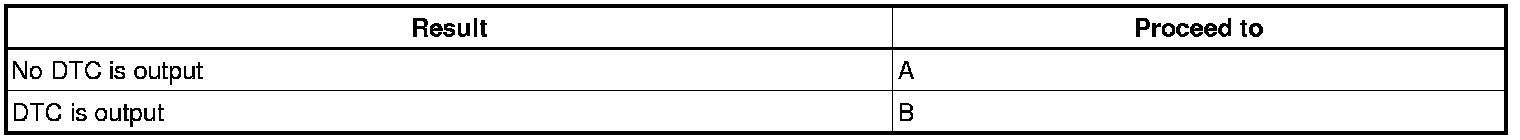

Result





B -- Go to DIAGNOSTIC TROUBLE CODE CHART
A -- Continue to next step.
5. PROBLEM SYMPTOMS TABLE
(a) Refer to the Problem Symptoms Table Side Monitor System.

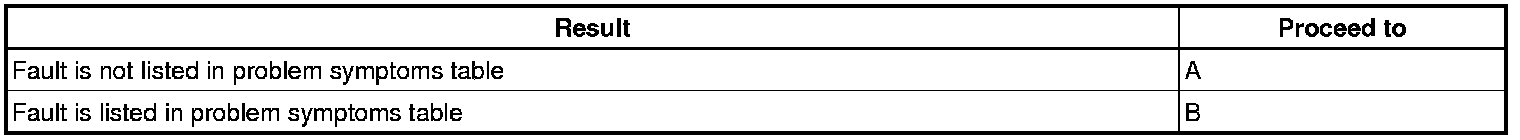

Result





B -- Go to step 7
A -- Continue to next step.
6. OVERALL ANALYSIS AND TROUBLESHOOTING*
(a) Terminals of ECU Side Monitor System.
NEXT -- Continue to next step.
7. ADJUST, REPAIR OR REPLACE
NEXT -- Continue to next step.
8. CONFIRMATION TEST
NEXT -- END
