Fail-Safe Chart

PRE-COLLISION: PRE-COLLISION SYSTEM: FAIL-SAFE CHART

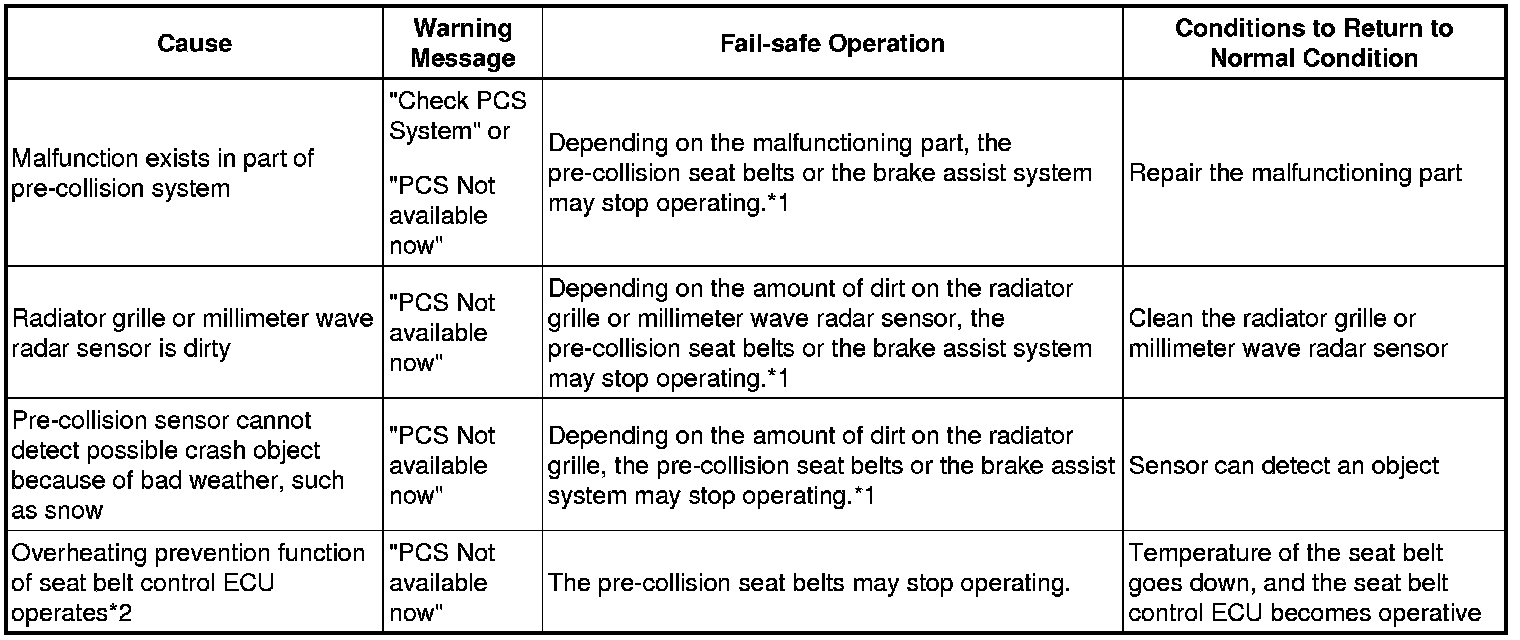

1. The pre-collision system fail-safe function and details are indicated in the table below.





HINT:
- *1: The pre-collision seat belts operate only with sudden braking.
- *2: The overheating prevention function operates when the seat belt control ECU detects a rise in seat belt control ECU temperature because of excessive seat belt operation.
