Installation

PARK ASSIST / MONITORING: TELEVISION CAMERA (for Side): INSTALLATION

1. INSTALL SIDE TELEVISION CAMERA ASSEMBLY






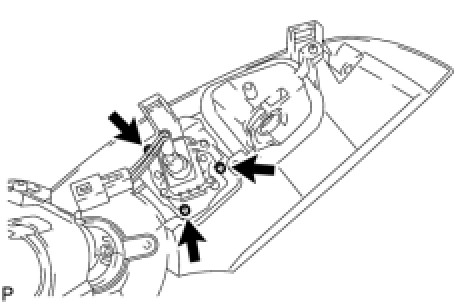

(a) Install the side television camera with the 3 screws.

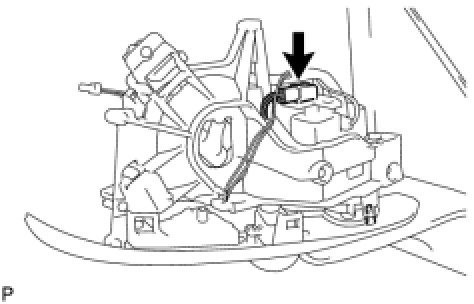

(b) Attach the claw and connect the connector.
NOTICE:
Be careful when attaching the claw as it is easily broken.

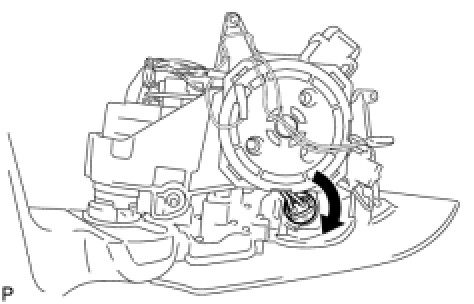

(c) Turn the bulb in the direction shown in the illustration to install it.

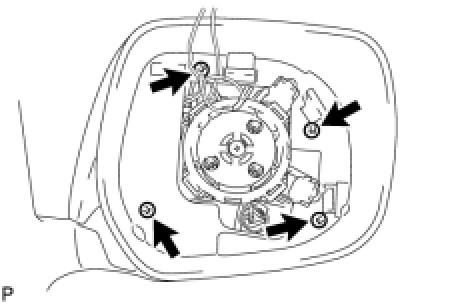

(d) Install the 4 screws and cover.

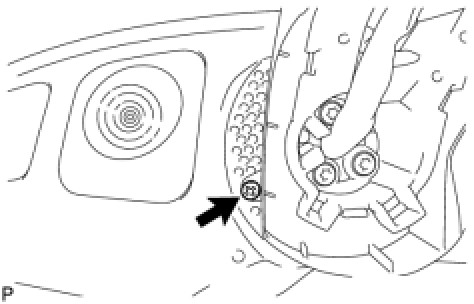

(e) Install the screw.

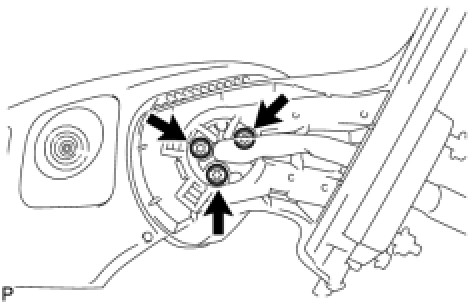

(f) Using a T25 "TORX" socket wrench, install the 3 screws.
Torque: 3.8 Nm (39 kgf-cm, 34 in-lbf)

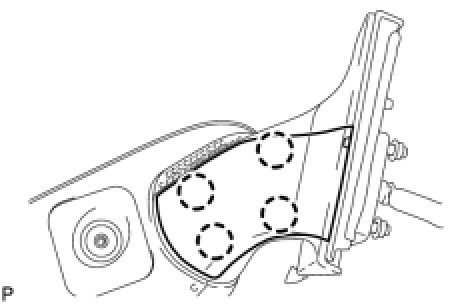

(g) Attach the 4 claws to install the cover.

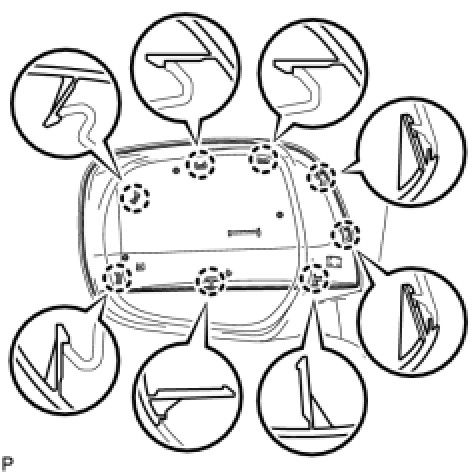

(h) Attach the 8 claws to install the outer mirror cover RH.
2. INSTALL OUTER MIRROR RH Installation

3. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY RH
(a) Install the outer rear view mirror RH Installation.
