PARK ASSIST / MONITORING: TELEVISION CAMERA (for Rear): INSTALLATION

1. INSTALL REAR TELEVISION CAMERA ASSEMBLY

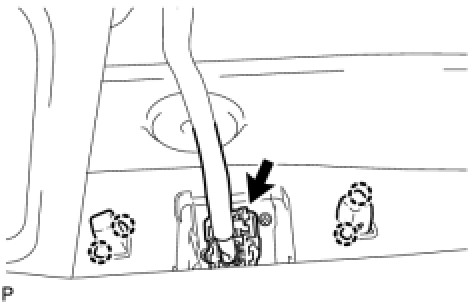

(a) Connect the connector.

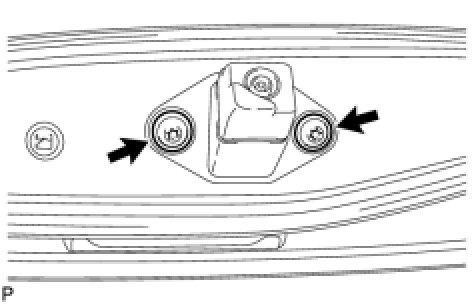

(b) Attach the 2 screw grommets to install the rear television camera assembly.






(c) Using a T30 "TORX" socket wrench, install the rear television camera with the 2 screws.
2. INSTALL BACK DOOR GARNISH RETAINER SUB-ASSEMBLY Installation

3. INSTALL BACK DOOR GARNISH Reassembly

4. INSTALL BACK DOOR SIDE GARNISH LH Reassembly

5. INSTALL BACK DOOR SIDE GARNISH RH Reassembly

6. INSTALL CENTER BACK DOOR GARNISH Reassembly
