Installation

PARK ASSIST / MONITORING: TELEVISION CAMERA (for Front): INSTALLATION





1. INSTALL FRONT TELEVISION CAMERA ASSEMBLY

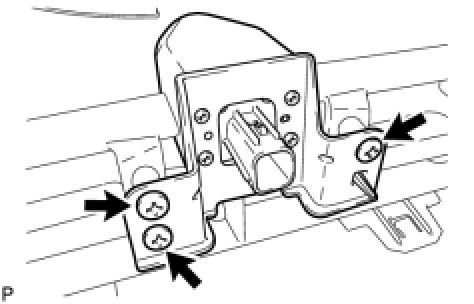

(a) Install the front television camera with the 3 screws.
2. INSTALL RADIATOR GRILLE ASSEMBLY Installation

3. INSTALL UPPER RADIATOR SUPPORT SEAL Installation

4. INSTALL ENGINE ROOM SIDE COVER LH Installation

5. INSTALL ENGINE ROOM SIDE COVER RH Installation
