Installation

PARK ASSIST / MONITORING: CLEARANCE SONAR MAIN SWITCH: INSTALLATION





1. INSTALL CLEARANCE SONAR MAIN SWITCH

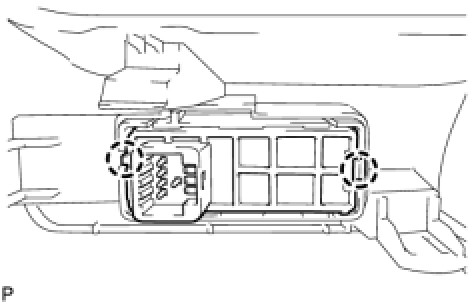

(a) Attach the 2 claws to install the clearance sonar main switch.
2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation

3. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation

4. INSTALL NO. 1 SWITCH HOLE BASE Installation

5. INSTALL INSTRUMENT SIDE PANEL LH Installation
