Ultrasonic Sensor (for Rear)

PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Rear): INSPECTION

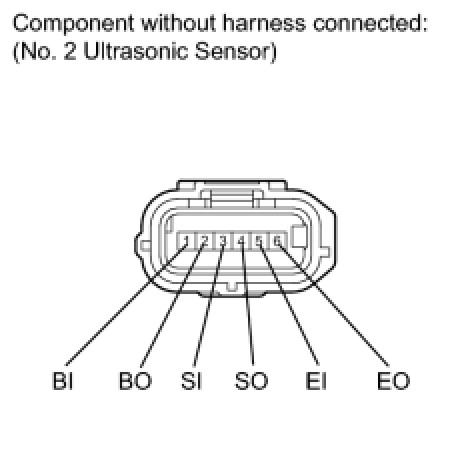

1. INSPECT NO. 2 ULTRASONIC SENSOR
(a) Measure the resistance according to the value(s) in the table below.

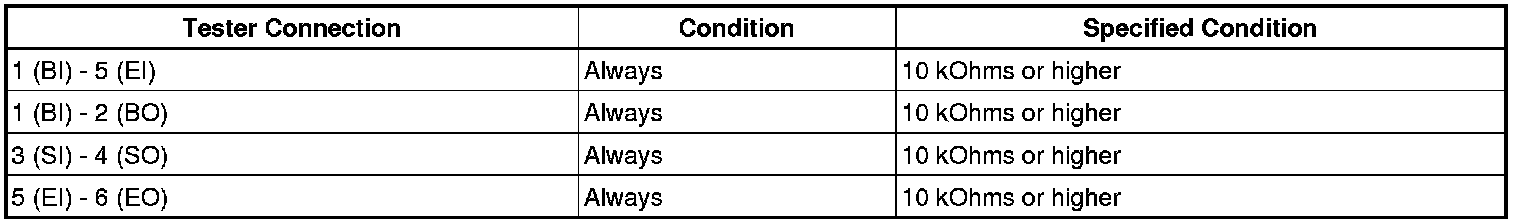

Standard Resistance:





If the result is not as specified, replace the sensor.

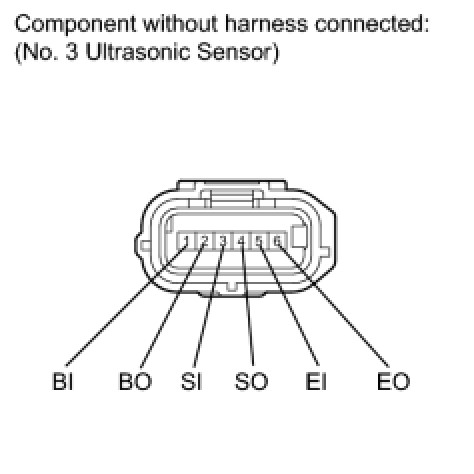

2. INSPECT NO. 3 ULTRASONIC SENSOR
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the sensor.
