Ultrasonic Sensor (for Front)









PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Front): INSPECTION

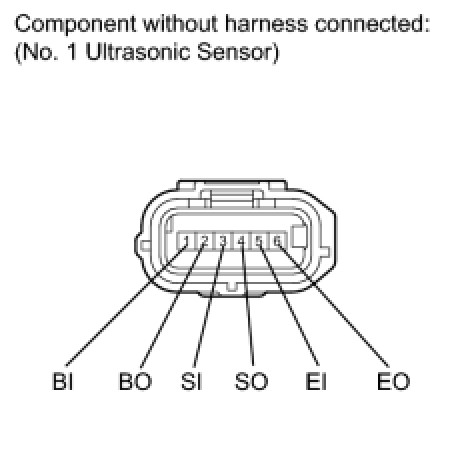

1. INSPECT NO. 1 ULTRASONIC SENSOR

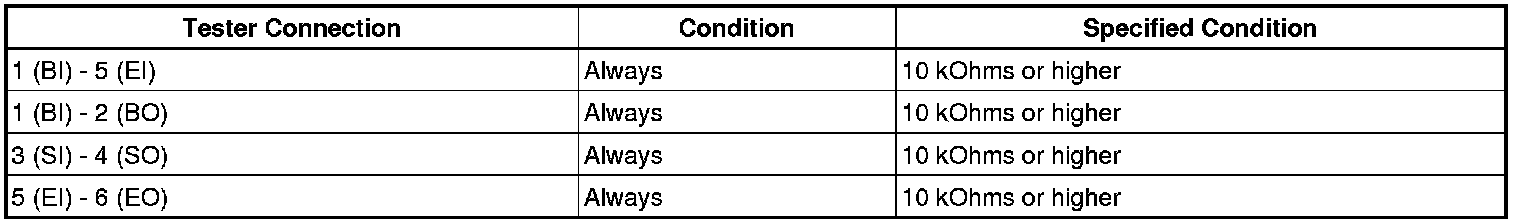

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the sensor.
