Removal

CELLULAR COMMUNICATION: TELEPHONE MICROPHONE: REMOVAL

1. REMOVE MAP LIGHT ASSEMBLY
(a) Remove the map light Removal.
2. REMOVE TELEPHONE MICROPHONE ASSEMBLY






(a) Disconnect the connector.

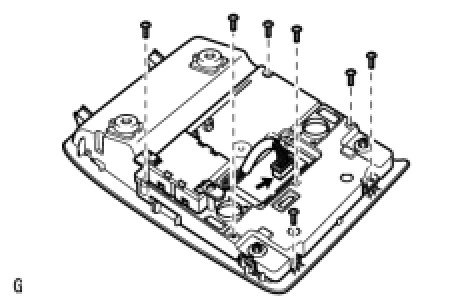

(b) Remove the 7 screws and cover.






(c) Disconnect the connector.

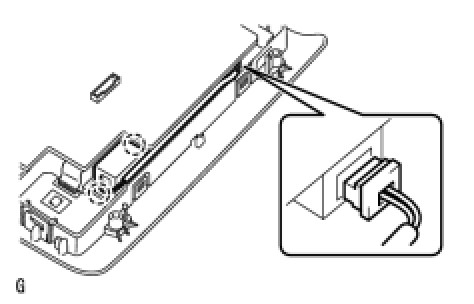

(d) Detach the 2 claws and remove the microphone.
