Removal

AUDIO / VIDEO: MICROPHONE AMPLIFIER: REMOVAL

1. REMOVE MAP LIGHT ASSEMBLY
(a) Remove the map light Removal.

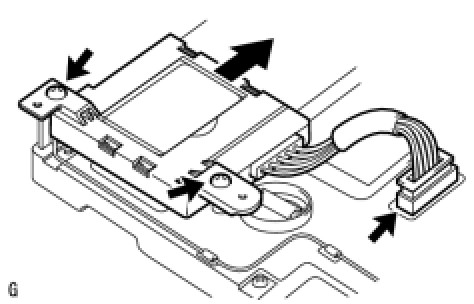

2. REMOVE GARAGE DOOR OPENER TRANSMITTER
(a) Remove the 2 screws.
(b) Disconnect the connector and remove the transmitter as shown in the illustration.
3. REMOVE TELEPHONE MICROPHONE ASSEMBLY





(a) Remove the 9 screws and cover.






(b) Disconnect the connector.
(c) Detach the 2 claws and remove the microphone.
