Installation

AUDIO / VIDEO: MICROPHONE AMPLIFIER: INSTALLATION

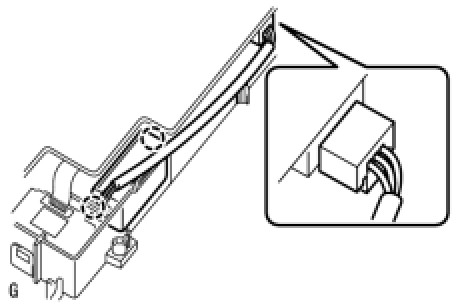

1. INSTALL TELEPHONE MICROPHONE ASSEMBLY





(a) Attach the 2 claws to install the microphone.
(b) Connect the connector.

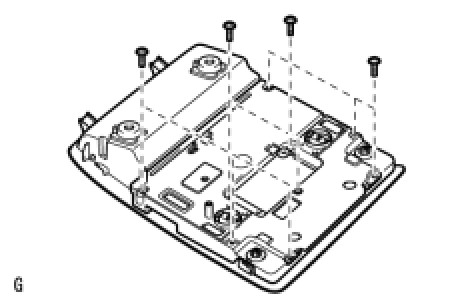

(c) Install the cover with the 9 screws.

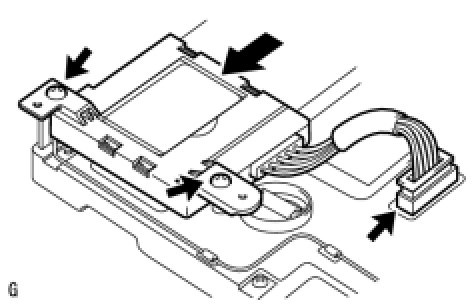

2. INSTALL GARAGE DOOR OPENER TRANSMITTER
(a) Connect the connector and install the transmitter as shown in the illustration.
(b) Install the 2 screws.
3. INSTALL MAP LIGHT ASSEMBLY
(a) Install the map light Installation.
