Engine Immobilizer System

THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILIZER SYSTEM: ID Code Box Power Source Circuit

ID Code Box Power Source Circuit

DESCRIPTION

This circuit provides power to operate the ID code box (immobilizer code ECU).

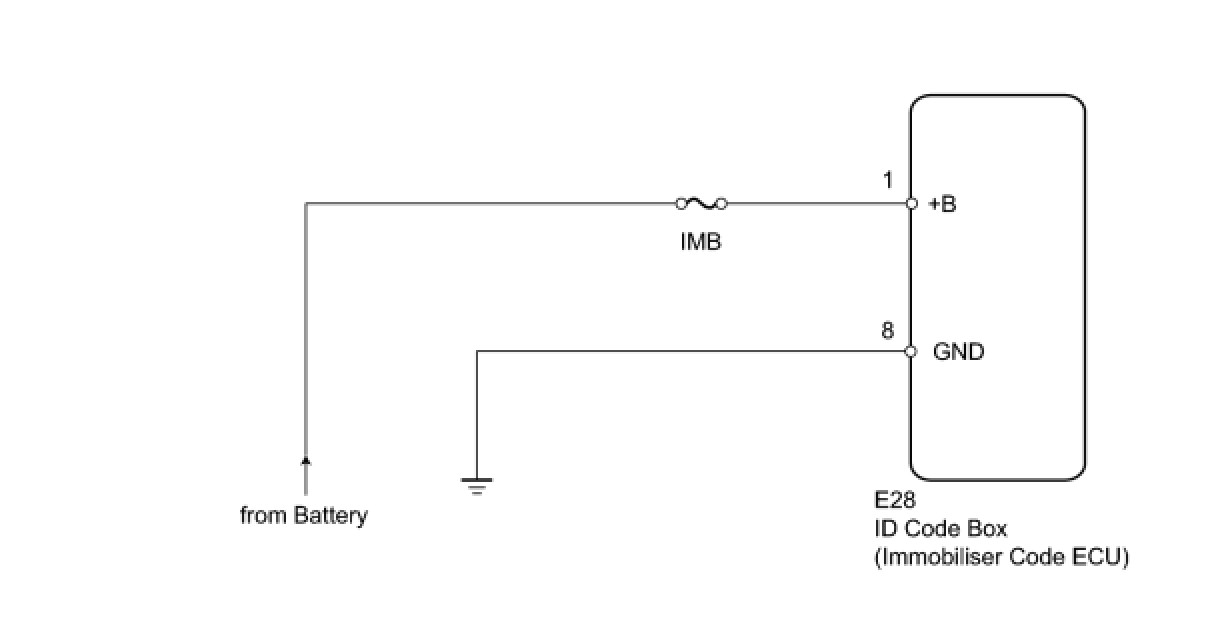

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (IMB)
(a) Remove the IMB fuse from the engine room relay block.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPLACE FUSE
OK -- Continue to next step.

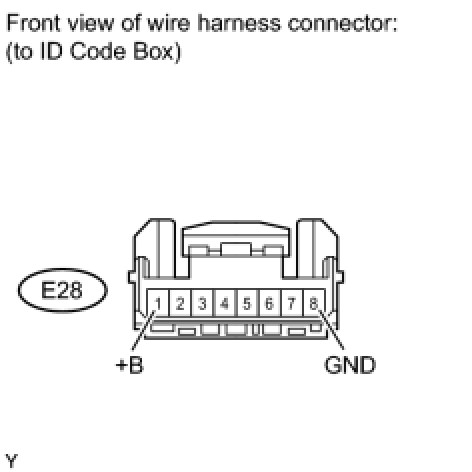

2. CHECK HARNESS AND CONNECTOR (ID CODE BOX - BATTERY AND BODY GROUND)





(a) Disconnect the E28 box connector.
(b) Measure the resistance and voltage according to the value(s) in the table below.
Standard Resistance:






Standard Voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
