Installation

CELLULAR COMMUNICATION: TELEPHONE ANTENNA: INSTALLATION

1. INSTALL TELEPHONE ANTENNA ASSEMBLY

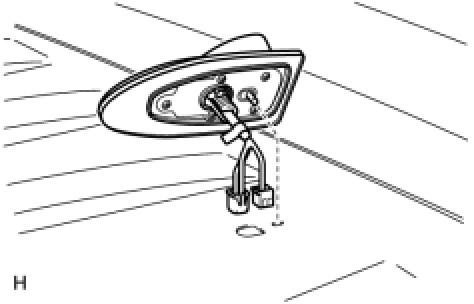

(a) Align the positioning pin of the telephone antenna and set the antenna on the vehicle.

(b) Attach the 2 claws to install the telephone antenna.

(d) Connect the 2 antenna cord connectors.

(e) Attach the 2 claws to install the protector.

(f) Attach the 4 claws to install the 2 antenna cord connectors.
2. INSTALL NO. 3 REAR ROOF AIR DUCT Installation

3. INSTALL NO. 4 REAR ROOF AIR DUCT Installation

4. INSTALL NO. 5 REAR ROOF AIR DUCT Installation

5. INSTALL ROOF HEADLINING ASSEMBLY
(a) Install the roof headlining Installation.
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

7. INSTALL ENGINE ROOM SIDE COVER LH Installation

8. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
