DTC 9E-41

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: 9E-41: Sound Recording Data Overflow

DTC 9E-41 - Sound Recording Data Overflow

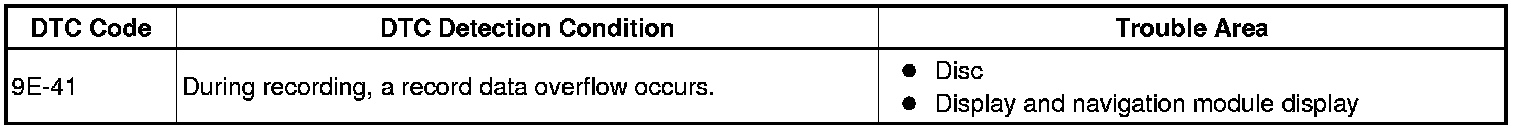

DESCRIPTION





INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. CHANGE DISC
(a) Replace disc with a normal one.
(b) Clear DTCs Reading and Clearing Diagnostic Trouble Codes.
(c) Recheck for DTCs and check if the same trouble code is output.
OK:
No DTC is output.
NG -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
OK -- END
