NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: 58-40: GPS Antenna Error

DTC 58-40 - GPS Antenna Error

DTC 58-41 - GPS Antenna Power Source Error

DTC 80-40 - GPS Antenna Error

DTC 80-41 - GPS Antenna Power Source Error

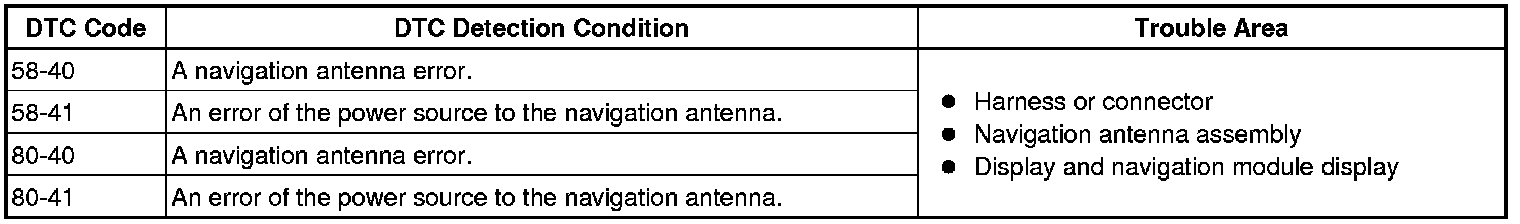

DESCRIPTION





INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (NAVIGATION ANTENNA - DISPLAY AND NAVIGATION MODULE DISPLAY)
(a) Check if the navigation antenna cord is securely connected to the display and navigation module display.
OK:
The cord is securely connected.
NG -- REPLACE NAVIGATION ANTENNA
OK -- Continue to next step.
2. INSPECT NAVIGATION ANTENNA

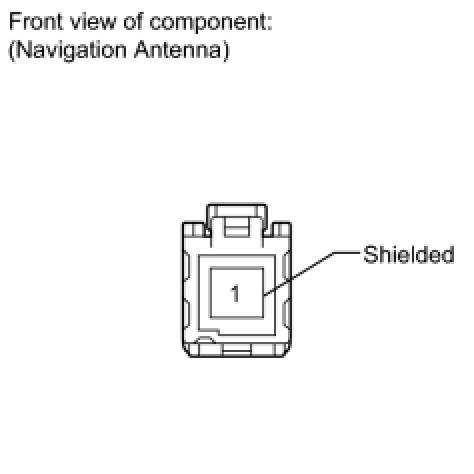

(a) Disconnect the navigation antenna connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPLACE NAVIGATION ANTENNA
OK -- Continue to next step.
3. CLEAR AND RECHECK DTC
(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(b) Recheck for DTCs and check if the same trouble code is output.
OK:
No DTC is output.
NG -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
OK -- END
