Audio and Visual System

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: 63-43: CD-ROM Abnormal

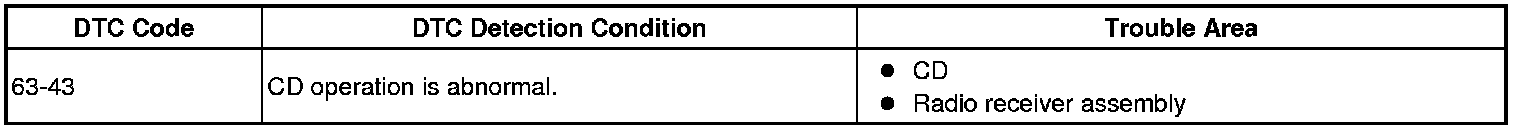

DTC 63-43 - CD-ROM Abnormal

DESCRIPTION





INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. CHECK IF A PROPER CD IS INSERTED
(a) Make sure that the CD is an audio CD or a CD with an MP3 or WMA file, and that it is not deformed, flawed, stained, burred, or otherwise defective.
OK:
Normal CD.
HINT:
- Translucent or uniquely-shaped CDs cannot be played.
- CDs with adhesive paper labels should not be played.
- Commercial audio CDs can be played.
- CD-DA files on CD-ROMs, CD-Rs, and CD-RWs can be played.
- MP3 and WMA files on CD-ROMs, CD-Rs, and CD-RWs can be played.

NG -- CD IS FAULTY
OK -- Continue to next step.
2. REPLACE CD WITH ANOTHER AND RECHECK
(a) Replace the CD and recheck.
(1) Replace the CD with a normal one.
(2) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(3) Recheck for DTCs and check if the same trouble code is output.
OK:
No DTC is output.
NG -- REPLACE RADIO RECEIVER ASSEMBLY
OK -- END
