AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: 5C-40: Camera Picture Error

DTC 5C-40 - Camera Picture Error

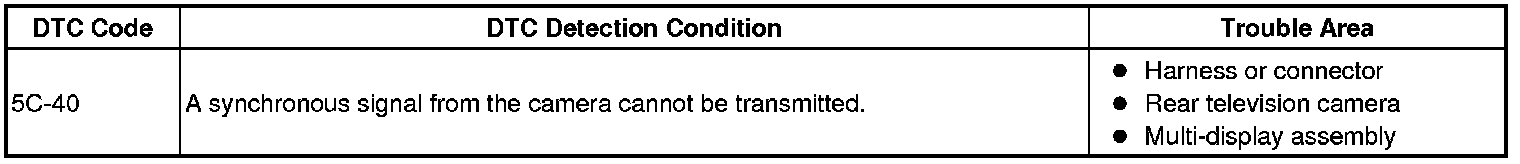

DESCRIPTION
HINT:
If the vehicle has a navigation system, "multi-display" refers to the "display and navigation module display".

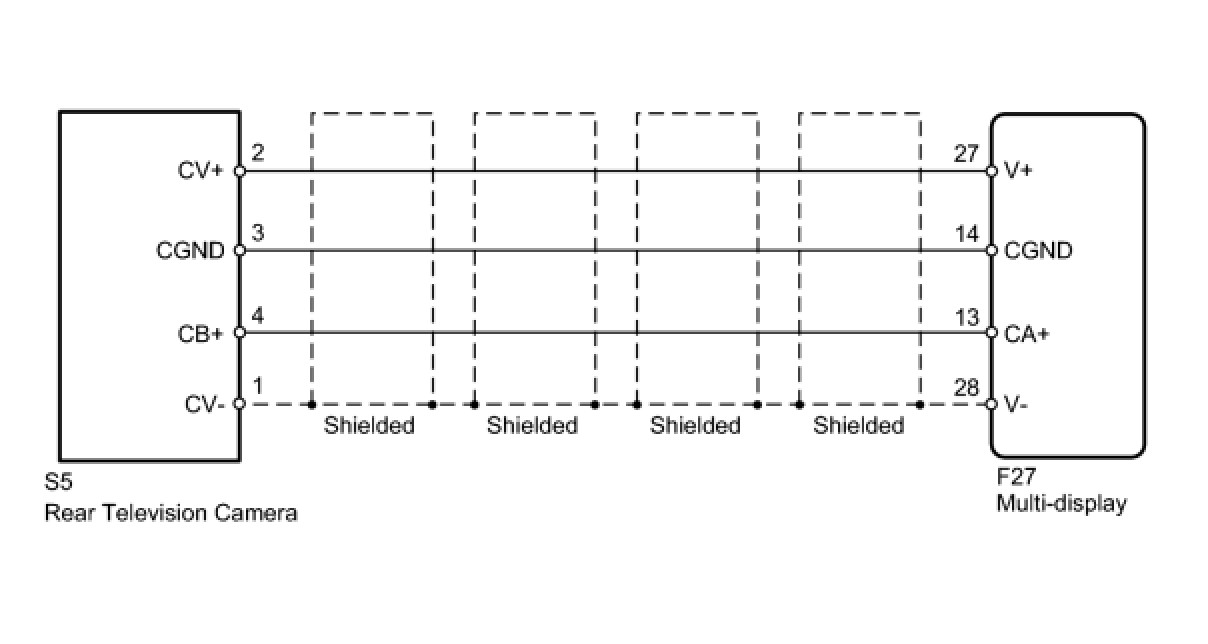

WIRING DIAGRAM





INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

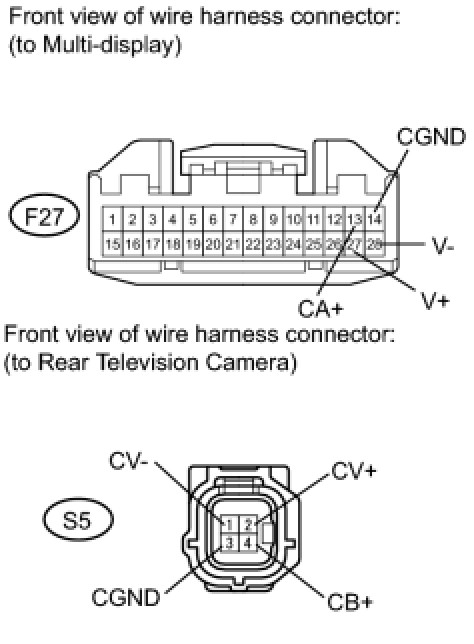

1. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - REAR TELEVISION CAMERA)





(a) Disconnect the F27 display connector.
(b) Disconnect the S5 camera connector.

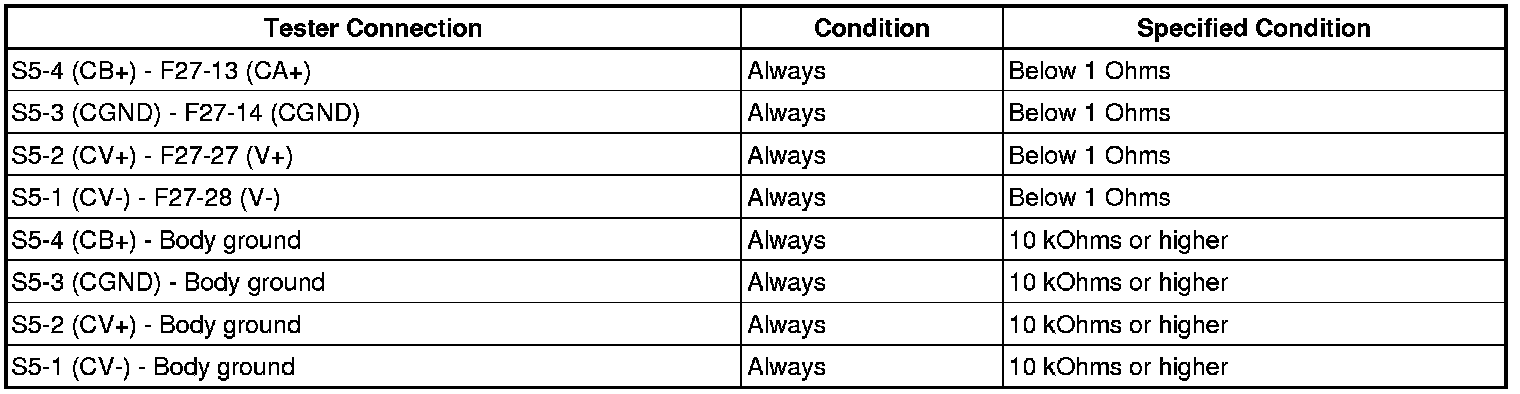

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

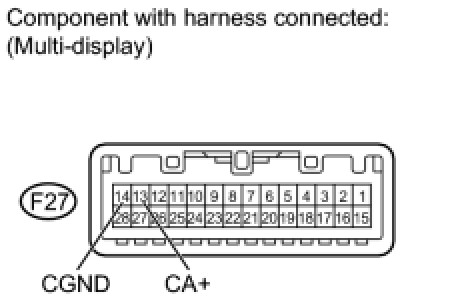

2. CHECK MULTI-DISPLAY (CA+ VOLTAGE)





(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:

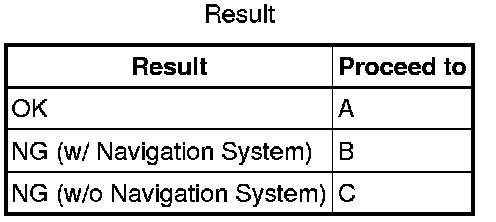

C -- REPLACE MULTI-DISPLAY ASSEMBLY
B -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
A -- REPLACE REAR TELEVISION CAMERA ASSEMBLY
