AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: 45-44: DVD Malfunction

DTC 45-44 - DVD Malfunction

DTC 45-48 - Excess Current

DTC 45-50 - Tray Insertion / Ejection Error

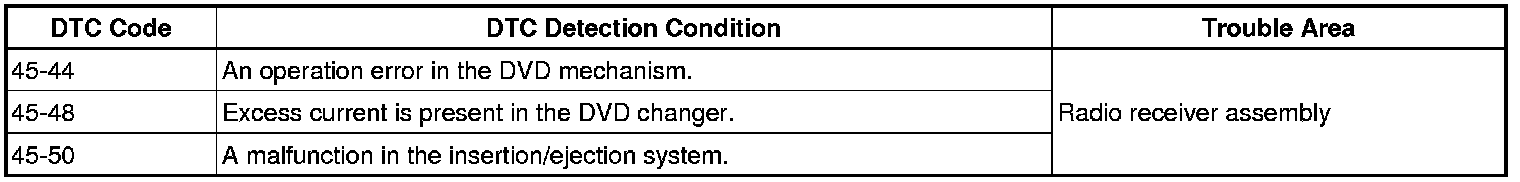

DESCRIPTION





INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. CLEAR DTC
(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
NEXT -- Continue to next step.
2. RECHECK DTC
(a) Recheck for DTCs and check if the same trouble code is output.
HINT:
If DTCs are output frequently, replace the radio receiver.

OK:
No DTC is output.
NG -- REPLACE RADIO RECEIVER ASSEMBLY
OK -- USE SIMULATION METHOD TO CHECK
