Navigation System

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: 45-46: Scratched/Reversed Disc

DTC 45-46 - Scratched/Reversed Disc

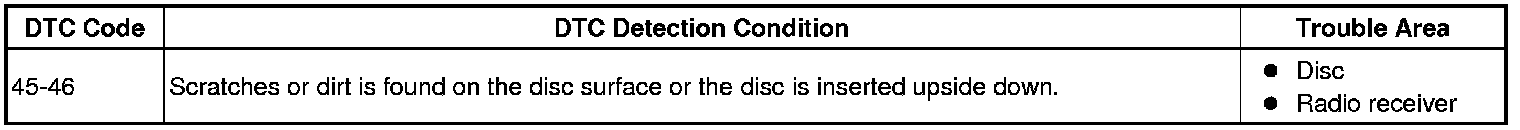

DESCRIPTION





INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. CHECK THAT DISC IS INSERTED PROPERLY
(a) Check whether or not the disc is inserted upside down.
OK:
Disc is properly inserted.
NG -- INSERT DISC PROPERLY
OK -- Continue to next step.
2. CHECK DISC





(a) Check that the disc is not deformed or cracked.
OK:
No deformation or cracks on the disc.
NG -- CHANGE DISC
OK -- Continue to next step.
3. DISC CLEANING





(a) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.
NOTICE:
Do not use a conventional record cleaner or antistatic preservative.

NEXT -- Continue to next step.
4. CLEAR DTC
(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.
NEXT -- Continue to next step.
5. RECHECK DTC
(a) Recheck for DTCs and check if the same trouble code is output.
OK:
No DTC is output.
NG -- REPLACE DISC WITH ANOTHER AND RECHECK
OK -- DISC WAS DIRTY
6. REPLACE DISC WITH ANOTHER AND RECHECK
(a) Replace the disc with a normal one.
(b) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(c) Recheck for DTCs and check if the same trouble code is output.
OK:
No DTC is output.
NG -- REPLACE RADIO RECEIVER ASSEMBLY
OK -- DISC IS FAULTY
