DTC 4-5

CELLULAR COMMUNICATION: LEXUS LINK SYSTEM: 4-5: EMERGENCY, VOL+ or VOL- Button Stuck

DTC 4-5 - EMERGENCY, VOL+ or VOL- Button Stuck

DESCRIPTION

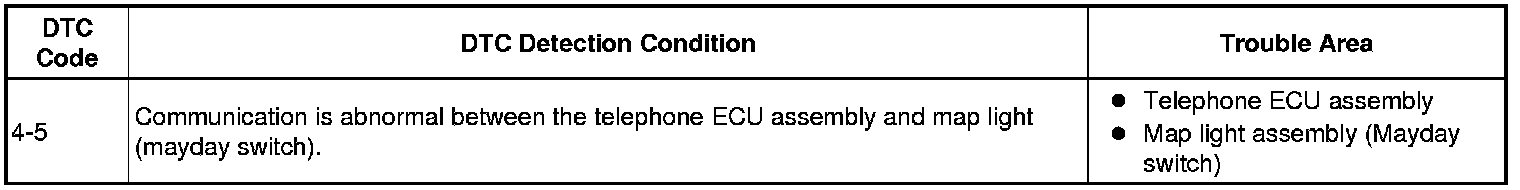

This DTC is stored when either of the following occurs: 1) the telephone ECU assembly is malfunctioning; or 2) the mayday switch on the map light assembly is malfunctioning.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK MAP LIGHT ASSEMBLY (MAYDAY SWITCH)
(a) Check that the mayday switch is not stuck by pressing the switch several times.
(b) Check for DTC again Reading and Clearing Diagnostic Trouble Codes.
OK:
Current DTC 4-5 is not output.
NG -- INSPECT MAP LIGHT ASSEMBLY (MAYDAY SWITCH)
OK -- CLEAR HISTORIC DTC
2. INSPECT MAP LIGHT ASSEMBLY (MAYDAY SWITCH)





(a) Remove the map light Removal.

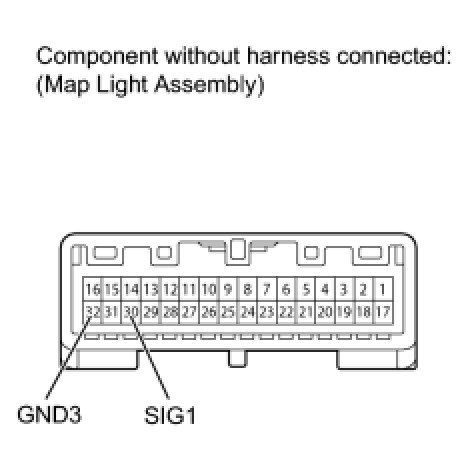

(b) Measure the resistance according to the value(s) in the table below.

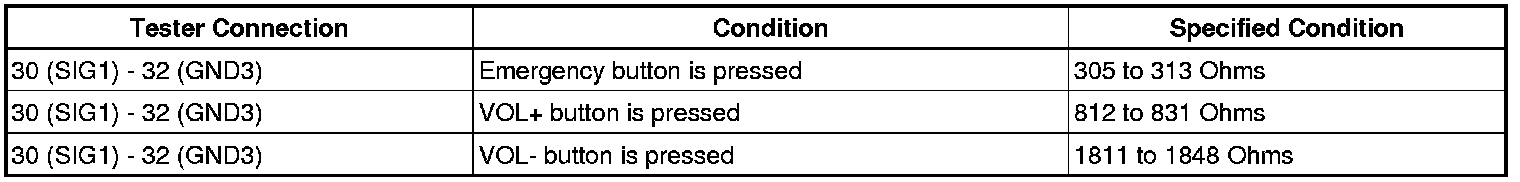

Standard Resistance:






NG -- REPLACE MAP LIGHT ASSEMBLY (MAYDAY SWITCH) THEN CLEAR HISTORIC DTC
OK -- Continue to next step.
3. REPLACE TELEPHONE ECU ASSEMBLY TOGETHER WITH MAYDAY BATTERY
NEXT -- PERFORM REGISTRATION
