NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: 34-10: Error in Picture Circuit

DTC 34-10 - Error in Picture Circuit

DTC 34-11 - No Current in Back-light

DTC 34-12 - Excess Current in Back-light

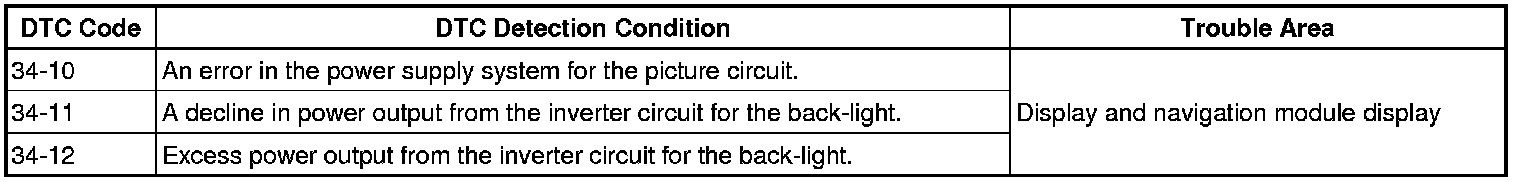

DESCRIPTION





INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
(a) Replace the display and navigation module display Removal.
NEXT -- END
