Navigation System

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: 21-10: Panel Switch Error

DTC 21-10 - Panel Switch Error

DTC 21-11 - Touch Switch Error

DTC 23-10 - Panel Switch Error

DTC 23-11 - Touch Switch Error

DTC 24-10 - Panel Switch Error

DTC 24-11 - Touch Switch Error

DTC 25-10 - Panel Switch Error

DTC 25-11 - Touch Switch Error

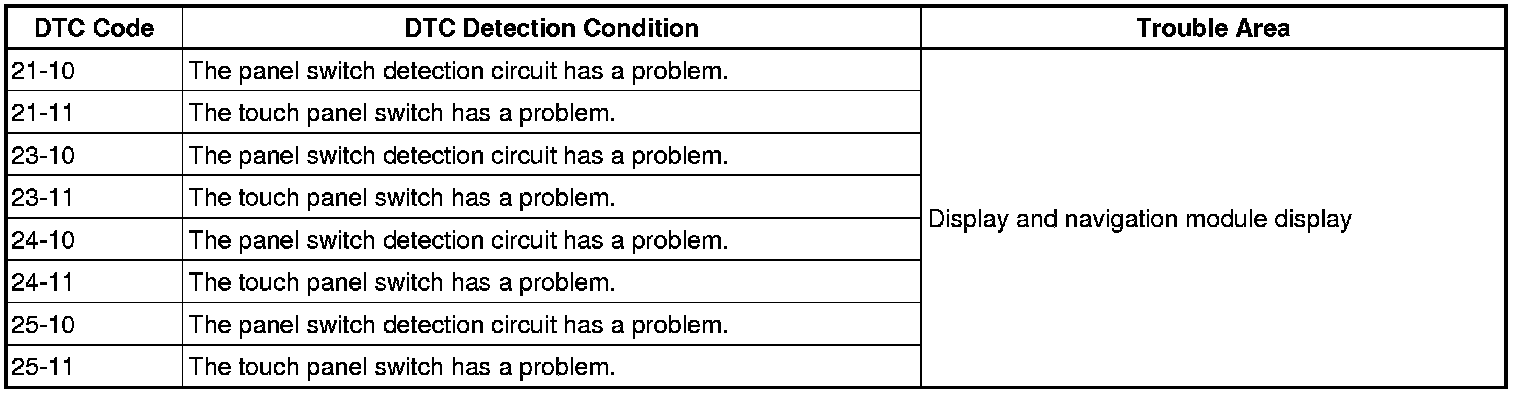

DESCRIPTION





INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
(a) Replace the display and navigation module display Removal.
NEXT -- END
