DTC 2-1

CELLULAR COMMUNICATION: LEXUS LINK SYSTEM: 2-1: EEPROM Communication Error

DTC 2-1 - EEPROM Communication Error

DTC 2-2 - EEPROM Checksum Error

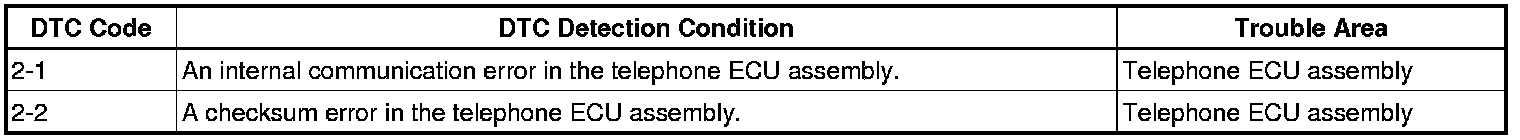

DESCRIPTION

These DTCs are stored when an error occurs in the CPU of the telephone ECU assembly.

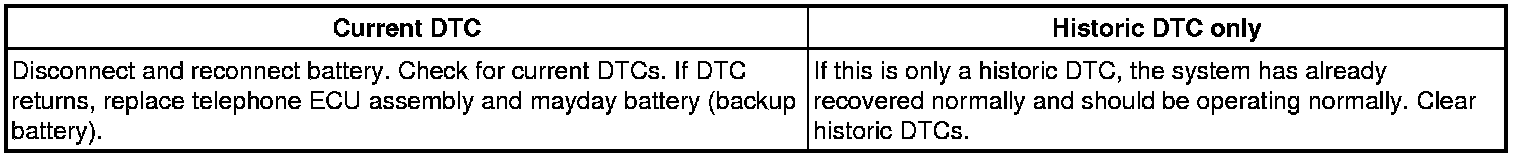

INSPECTION PROCEDURE

PROCEDURE

1. RESET TELEPHONE ECU ASSEMBLY
(a) Exit diagnosis mode and wait for 10 seconds.
(b) Disconnect the cable from the negative (-) battery terminal.
NOTICE:
- After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
(c) Reconnect the cable to the negative (-) battery terminal, and wait for 10 seconds.
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
(d) Turn the engine switch on (IG), and then check for the current DTC and historic DTC again Reading and Clearing Diagnostic Trouble Codes.

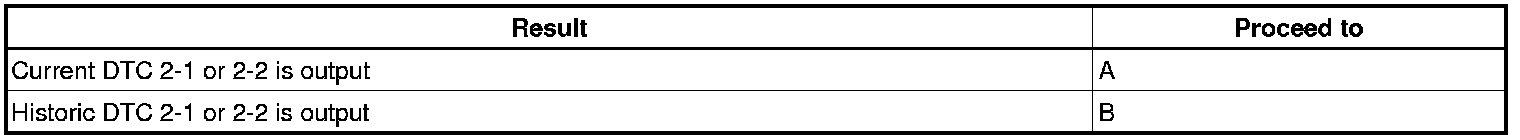

Result





B -- CLEAR HISTORIC DTC
A -- Continue to next step.
2. CHECK TELEPHONE ECU ASSEMBLY
(a) Press the SERVICES button and check the LEXUS Link condition with the LEXUS Link call center.
OK:
System operates normally.
NG:
System does not connect to LEXUS Link call center (current DTC 2-1 or 2-2 is stored).
NG -- REPLACE TELEPHONE ECU ASSEMBLY TOGETHER WITH MAYDAY BATTERY
OK -- END
3. REPLACE TELEPHONE ECU ASSEMBLY TOGETHER WITH MAYDAY BATTERY
NEXT -- PERFORM REGISTRATION
